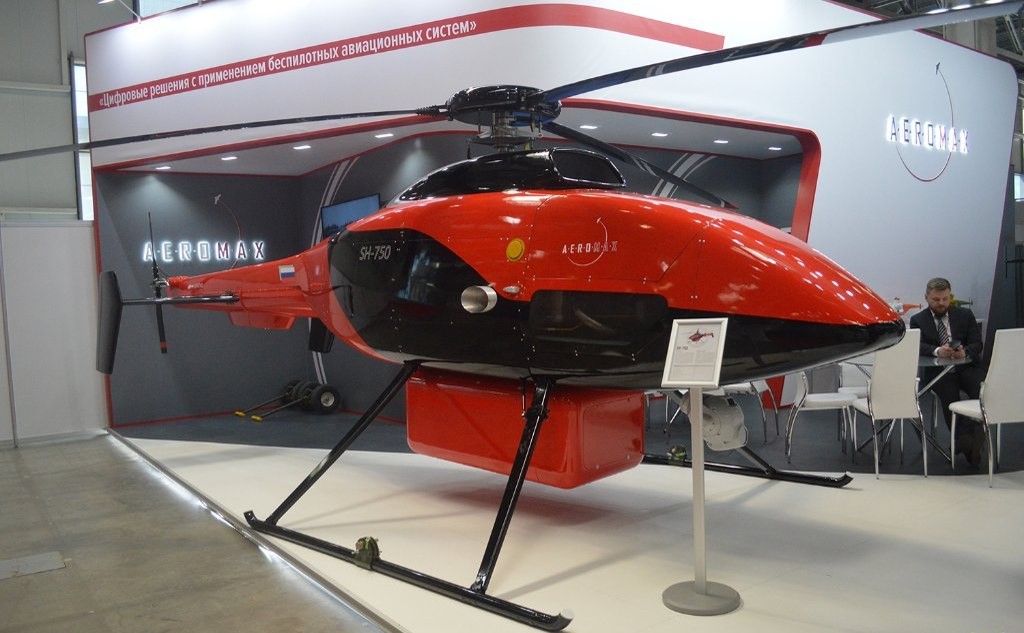

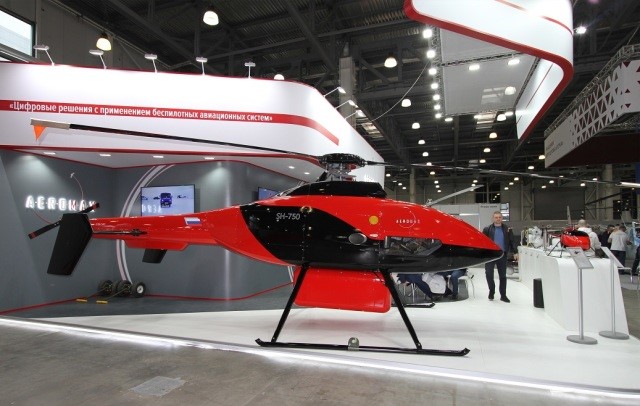

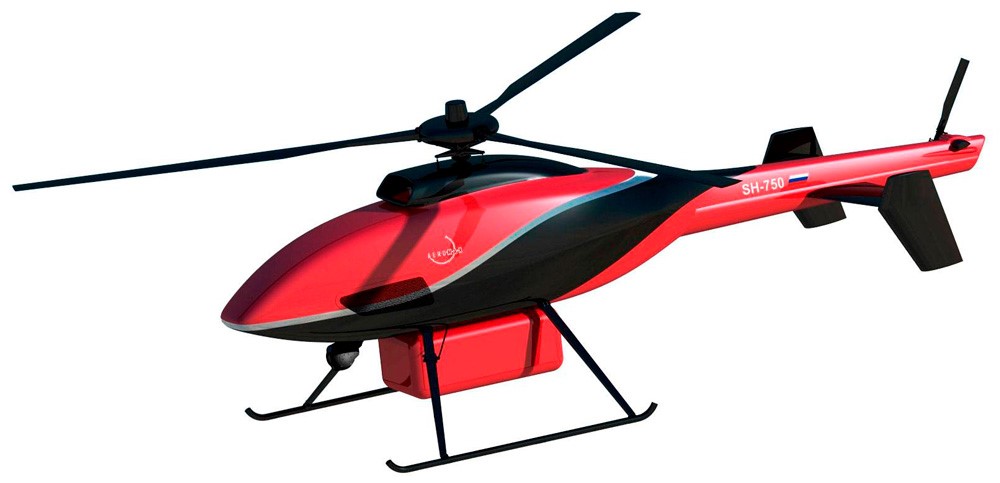

SH-750 Russian Unmanned Aerial Vehicle (UAV)

SH-750

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
SH-750 Russian Unmanned Aerial Vehicle (UAV)
Designation
SH-750
Alternate Designation
SH-750
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Aeromax Group
Date of Introduction
2022
Description

The SH-750 Russian Unmanned Aerial Vehicle (UAV) is a rotary-wing aircraft that features significant improvements over its predecessors. It has a takeoff weight of 750 kg and can carry a total payload of up to 300 kg. The aircraft has a cruising speed of 120 km/h, with a maximum speed of 200 km/h. Thanks to its larger power unit and more spacious fuel tank, the SH-750 can achieve a flight duration of up to 5 hours and a maximum altitude of 4000 meters. It can operate at a range of up to 600 km. As an overweight aircraft, the SH-750 boasts high load capacity and enhanced flight performance. It is also designed to withstand strong winds and includes a de-icing system, making it suitable for use in harsh climatic conditions. While the new model is primarily intended for cargo delivery, it can be equipped with various types of equipment, making it versatile for multiple applications.

Air & Air Defense Specifications
Max Speed 200.0 km/h
Range 600.0 km
Endurance 5.00 hrs
Service Ceiling 4000 m
Payload Capacity 300 kg
System
Alternate Designation SH-750
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Aeromax Group
Payload Capacity 300 kg
Dimensions
Length INA
Width INA
Height INA
Empty Weight 400 kg
Maximum Takeoff Weight 750 kg
Automotive
Engine Name INA
Engine Type INA
Engine Power INA
Average Fuel Consumption at Course Speed 20 kg/h
Fuel Reserve 100 liters
Maximum Speed 200 km/h
Flight Course Speed 120 km/h
Maximum Range 600 m
Service Ceiling 4,000 m
Endurance 5 hours
Details
Country of Origin Russia
Category UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
750 kg
Operators (1)
Russia
