TBR001A Chinese Squad Leader VHF FM Transceiver
TBR001A
Squad Leader VHF FM Transceiver
Other
Basic Information
Name
TBR001A Chinese Squad Leader VHF FM Transceiver
Designation
TBR001A
Alternate Designation
TBR001A
Equipment Type
Squad Leader VHF FM Transceiver
Manufacturer
—
Date of Introduction
2000
Description

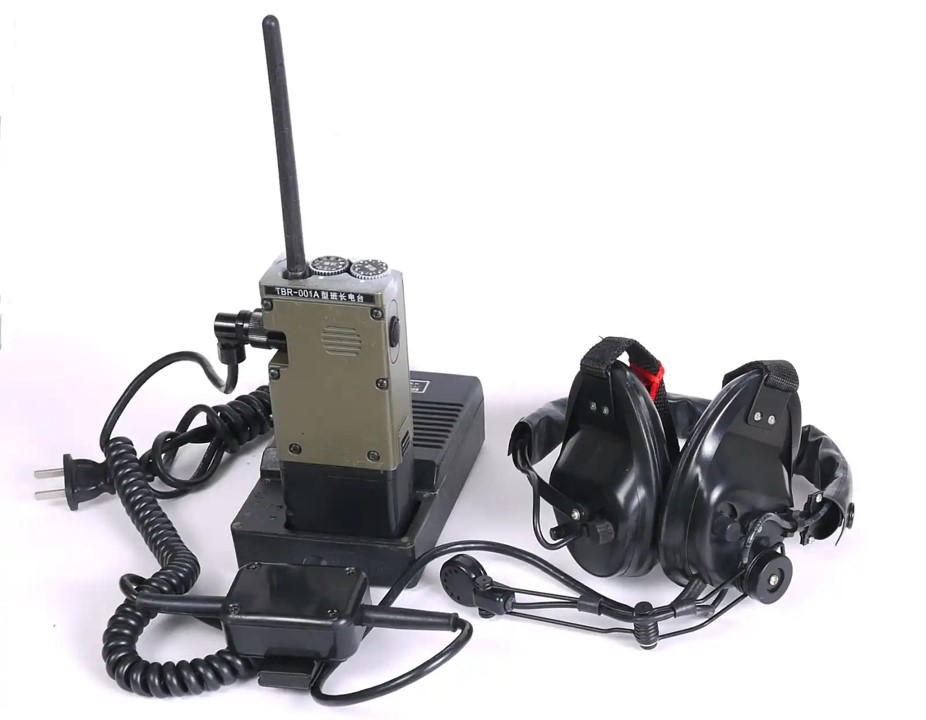

The TBR001A Chinese Squad Leader VHF FM Transceiver is a much-improved version of the TBR001 radio. The radio itself is completely redesigned, only antenna, battery unit, headset and charging station are come from TBR-001 radio. It borrowed some design elements from TBR115 so that it is more like a smaller version of TBR-115 radio. It was introduced into PLA infantry unit around 2000. It is designed to communicate between squad leaders and platoon/company commanders. It could also be used as a repeater in the battle field.
Ground Specifications
Crew
1
System
Alternative Designation
TBR001A
Type
Squad Leader VHF FM Transceiver
Crew
1 ea
Frequency
46.5 MHz to 49.5 MHz
Preset Channels
10 preset channels (channel 1 – 8 for communication and channel 9/10 for repeater), however it required another device to set the channel frequency.
Output Power
0.1W on low and 0.5w on high
Headset
Yes
Speaker
There is a speaker and PTT control on the radio so that the radio could be operated without a headset.
Communication Distance
1,000 m
Battery
7.2V battery unit attached to bottom of the radio
Note
The TBR001A Squad Leader VHF FM Transceiver being replaced by more modern TBR002 VHF FM Squad Leader Radio.
Dimensions
Length
148 mm
Width
55 mm
Height
35 mm
Weight, Combat
470 grams
Details
Country of Origin
China
Category
Very High Frequency (VHF) Radios
Land > Communication Equipment > Very High Frequency (VHF) Radios
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.15 m
Width
0.06 m
Height
0.04 m
Weight
0.47 kg
Operators (1)
China
