Shahed-136 Iranian Loitering Munition Unmanned Aerial Vehicle (UAV)
Shahed-136
Loitering Munition UAV
Other
Basic Information
Name
Shahed-136 Iranian Loitering Munition Unmanned Aerial Vehicle (UAV)
Designation
Shahed-136
Alternate Designation
Shahed-136
Equipment Type
Loitering Munition UAV
Manufacturer
HESA
Date of Introduction
2021
Description
The Shahed-136 Iranian Loitering Munition Unmanned Aerial Vehicle (UAV) is a modern swarming drone developed by Iran Aircraft Manufacturing Company (HESA).
Air & Air Defense Specifications
Engine

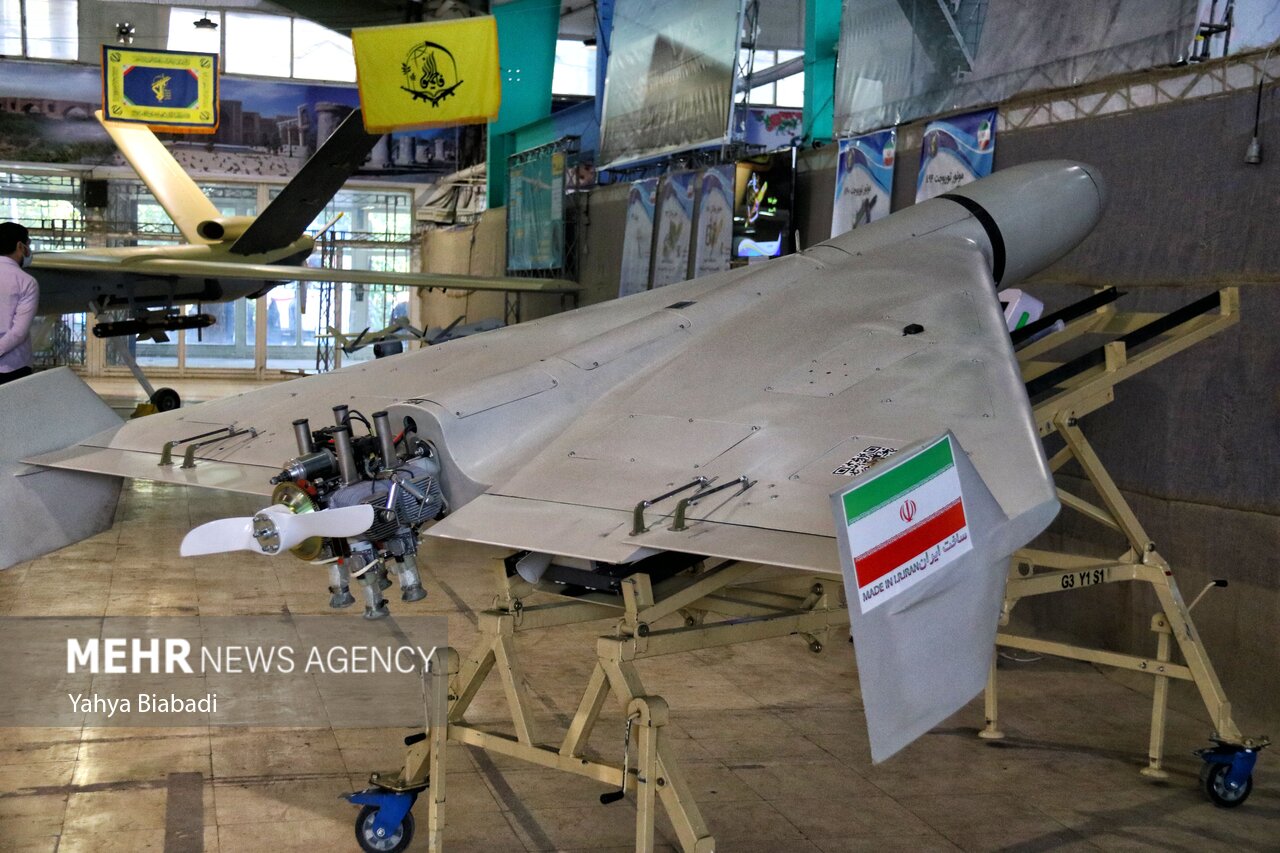

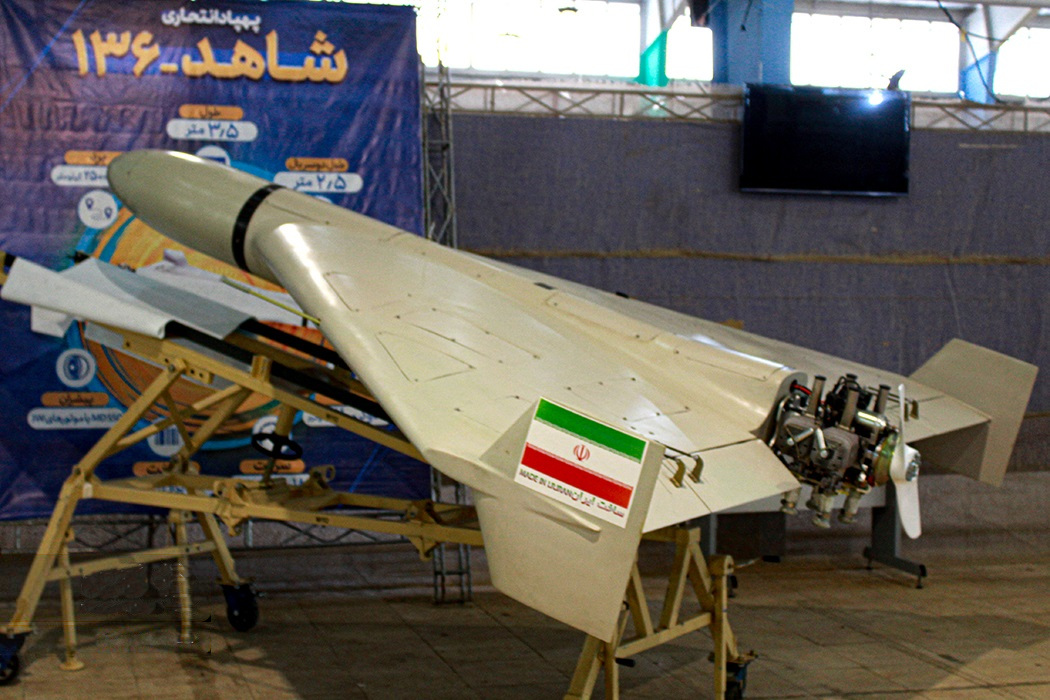

1 x conventional engine driving two-bladed propeller unit at the rear of the fuselage in pusher arrangement.
Max Speed
185.0 km/h
Range
2000.0 km
Variants
Geran-2 (Geranium-2)
Geran-2 (Geranium-2) is the Russian version of the Iranian Shahed 136 that has been used during Russia's war in Ukraine. Reports claim that the Iranian navigation system made from civilian components has been replaced with a Russian manufactured flight control unit and microprocessors, using the Russian GLONASS GNSS system rather than U.S. civilian grade GPS, seemingly improving its loitering munition capability.
System
Alternate Designation
Shahed-136
Type
Loitering Munition Unmanned Aerial Vehicle (UAV)
Manufacturer
Iran Aircraft Manufacturing Company (HESA)
Crew
Unmanned
Autonomous Operation
Design features autonomous flight operations made possible through onboard artificial intelligence or pre-programming.
Camera Equipment
Design supports photographic equipment providing still and / or real-time image / video results.
Launching System

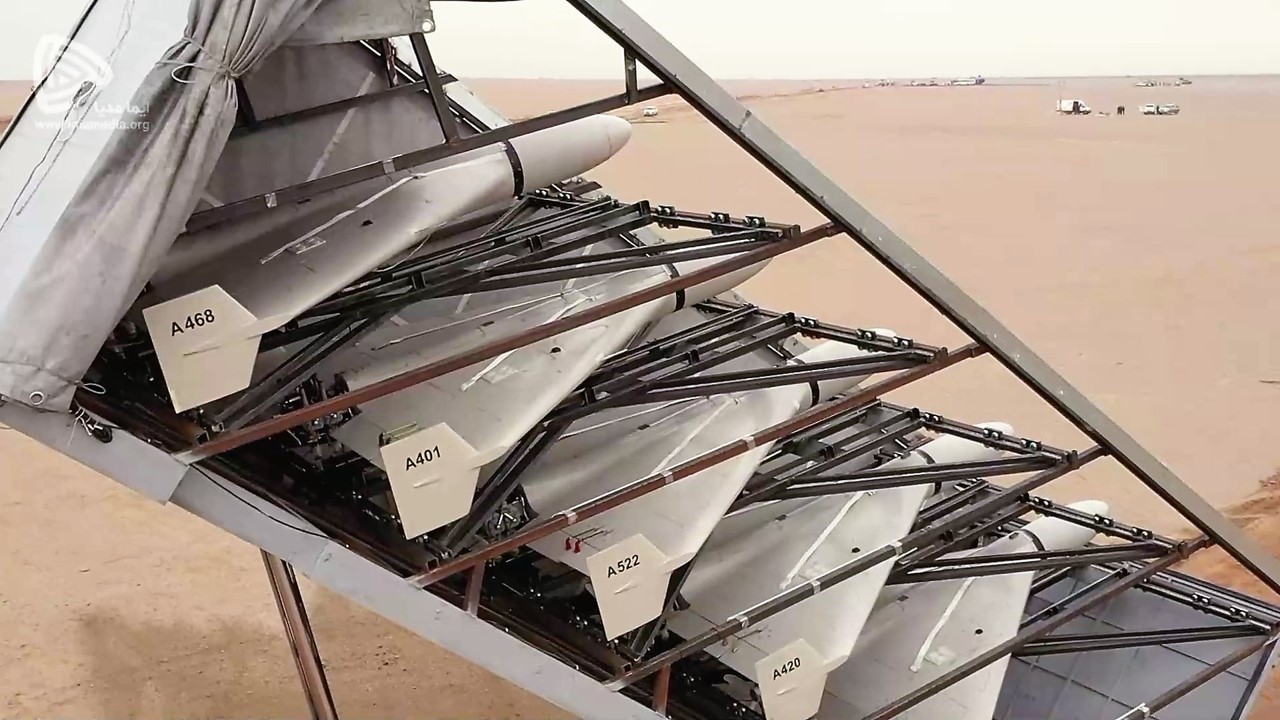

RATO-assisted take-off
Recovery System
INA
Dimensions
Length
3.5 m
Width
2.5 m
Height
INA
Maximum Takeoff Weight
200 kg
Automotive
Engine Name
INA
Engine Type
1 x conventional engine driving two-bladed propeller unit at the rear of the fuselage in pusher arrangement.
Engine Power
INA
Maximum Speed
185 km/h
Cruising Speed
INA
Service Ceiling
INA
Maximum Distance
2,000 km
Endurance
INA
Armament
Warhead
1 x 40 kg warhead
Details
Country of Origin
Iran
Category
UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
3.5 m
Width
2.5 m
Height
—
Weight
200 kg
Operators (2)
Russia
Iran
