Ob-Class (Project 320/320 II Class) Russian Navy Hospital Ship

Ob-Class

Oceanographic Research Vessel
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Ob-Class (Project 320/320 II Class) Russian Navy Hospital Ship
Designation
Ob-Class
Alternate Designation
Ob-Class; Project 320/320 II Class
Equipment Type
Oceanographic Research Vessel
Manufacturer
Date of Introduction
1978
Description

Ob-Class (Project 320 Class) Russian Navy Hospital Ship are purpose-built hospital ships. The third, fourth and projected fifth units of the class are part of Project B-320 II, modifications of the original Project 320 design. The Polish-built ships are civilian-manned but carry naval medical staffs. The four ships of the Ob-class hospital ships were designed to provide medical and recreational facilities. They were also employed as personnel transports. They have civilian crews but carry uniformed naval medical personnel. The ships are fully equipped with surgical equipment. Later two units are Project 320 II, implying a modification to the basic design; the external differences are minor.

Naval & Littoral Specifications
Crew 124
Beam 19.40 m
Draft 6.50 m
Variants
Ob' Commissioned: 1980 Status: Decommissioned in 1997 Fleet: Pacific Fleet
Enisey Commissioned: 1981 Status: Active Fleet: Black Sea Fleet
Svir` Commissioned: 1989 Status: Active Fleet: Northern Fleet

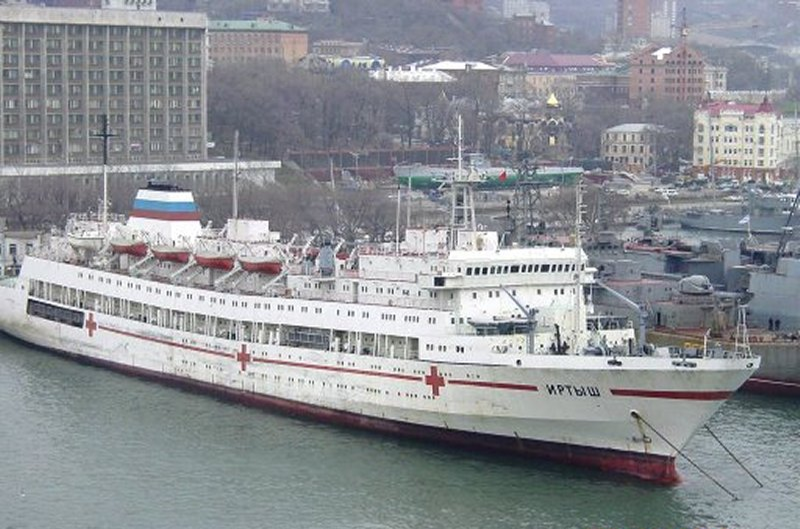

Irtysh Commissioned: 1990 Status: Active Fleet: Pacific Fleet
System
Alternative Designation Ob-Class; Project 320/320 II Class
Type Navy Hospital Ship
Builder Adolf Warski Shipyard, Szczecin, Poland
Crew 124 ea
Medical Personnel 83 ea
Passengers 300 patients or 650 passengers
Operating Rooms 7 x Operating Rooms
Medical Berthing 100 x beds plus 200 x berths for recuperating personnel. Additional patients can be accommodated on an emergency basis.
Dimensions
Length 152.60 m
Beam 19.40 m
Draft 6.50 m
Displacement, Standard 9,430 tons
Displacement, Full Load 11,623 tons
Propulsion System
Engine Name 2 x Zgoda-Sulzer type 12ZV 40/48
Engine Type Diesel
Engine Power 15,600 total bhp
Generators 4 x diesel-generators x1000 kW
Maximum Range 10,000 nm at 20 knots
Maximum Speed 20 knots
Endurance INA
Communication
VHF Radios 2 x VHF Radios
Radio Direction Finder 1 x Rumb Radio Direction Finder
Main Weapon System
Note There are no weapons mounted onboard the Ob-Class (Project 320/320 II Class) Russian Navy Hospital Ships.
Radar Systems
Navigation Radar 3 x Don-2 Navigation Radars
Aviation
Aviation Facilities 1 x Helipad and 1 x A hangar is provided for a single helicopter for casualty evacuation.
Helicopters 1 x Ka-25PS or 1 x Ka-27PS
Protection
Hull INA
Countermeasures No
NBC Water Washdown System Yes
Details
Country of Origin Russia
Category Support Ships
Naval > Support Ships
Filter Label
O
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
152.6 m
Width
Height
Weight
Operators (1)
Russia
