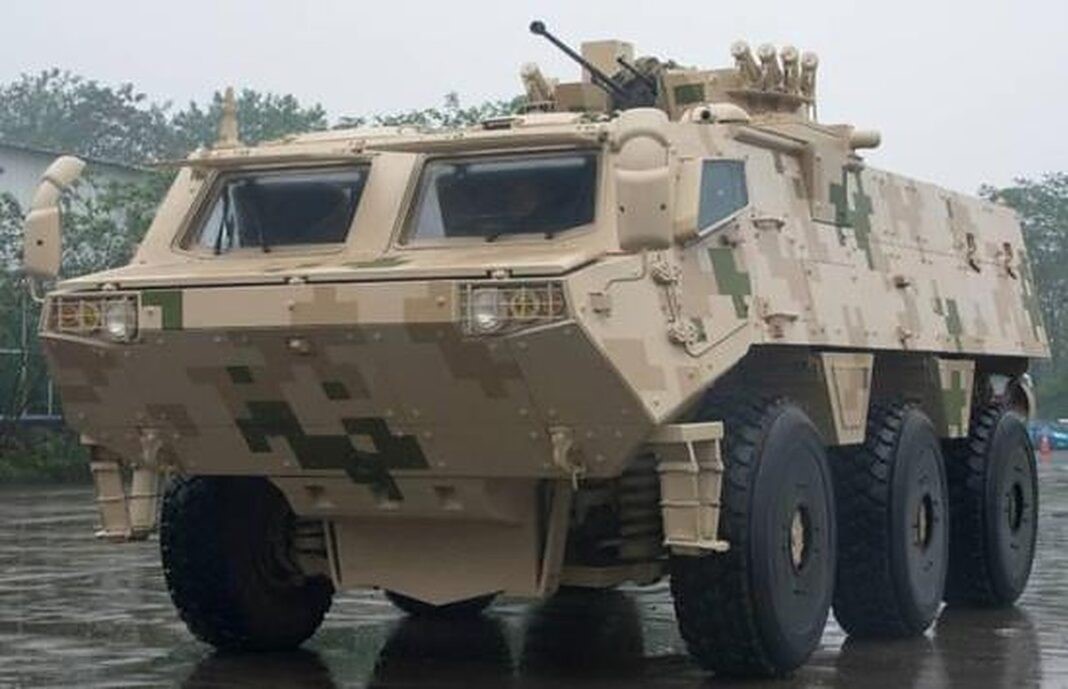

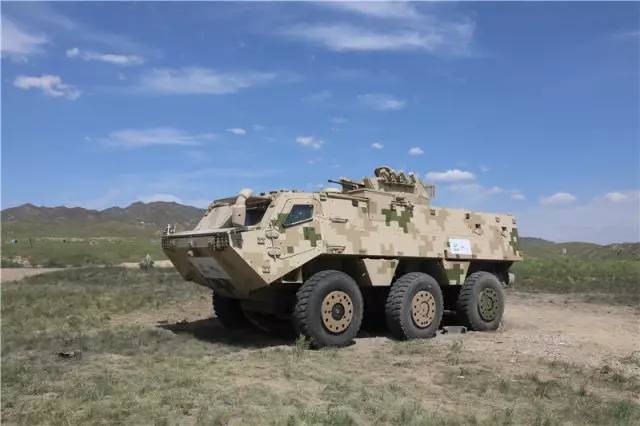

VN2C Chinese 6x6 Mine-Resistant Ambush Protected (MRAP)
VN2C
Mine-Resistant Ambush Protected (MRAP)
Other
Basic Information
Name
VN2C Chinese 6x6 Mine-Resistant Ambush Protected (MRAP)
Designation
VN2C
Alternate Designation
VN2C
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
NORINCO
Date of Introduction
2020
Description
The VN2C Chinese 6x6 Mine-Resistant Ambush Protected (MRAP) adopts unique general layout and modular chassis structure to improve ballistic protection and explosion-proof capability. The unique design reduces damage against crew and vehicle greatly during explosion of mines and LEDs, or attack of small arms, RPG rockets.
Ground Specifications
Crew
3
Mobility Type
Wheeled (6x6)
Main Weapon
12.7 mm machine gun
Engine
Diesel (400 hp)
NBC Protection
Yes
Amphibious
Yes
Max Speed
100.0 km/h
Range
800.0 km
System
Alternative Designation
VN2C
Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
NORINCO
Configuration
6x6
Crew
3 ea
Passengers
8 ea
Dimensions
Length
7,000 m
Width
3,000 m
Height
2,250 m
Weight, Combat
19,000 kg
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
400 hp
Maximum Range
800 km
Maximum Speed
100 km/h
Amphibious
Yes
Amphibious Speed
8 km/h
Gradient
INA
Side Slope
INA
Vertical Step
550 mm
Trench
1,200 mm
Fording
INA
Ground Clearance
410 mm
Main Weapon System
Note
The VN2C is fitted with a one-person turret armed with a 12.7 mm machine gun (MG) and a 7.62 mm co-axial MG provided with 500 rds and 1,000 rds of ammunition respectively.
Protection
Armor
Protection capability reaches NATO STANAG 4569 III.
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
Yes
Details
Country of Origin
China
Category
Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
V
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7000 m
Width
3000 m
Height
2250 m
Weight
19000 kg
Operators (2)
China
Mali
