ZALA VTOL Russian Unmanned Aerial Vehicle (UAV)
ZALA VTOL
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
ZALA VTOL Russian Unmanned Aerial Vehicle (UAV)
Designation
ZALA VTOL
Alternate Designation
ZALA VTOL
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Zala Aero Group
Date of Introduction
2019
Description

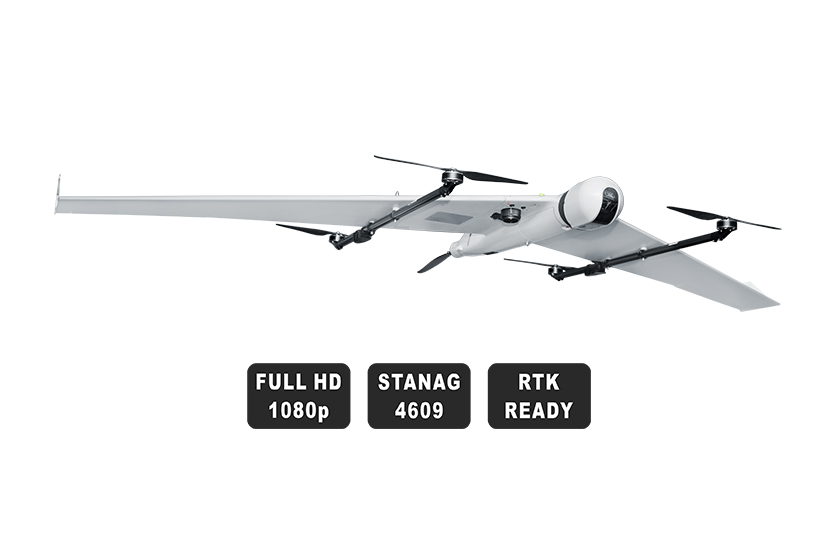

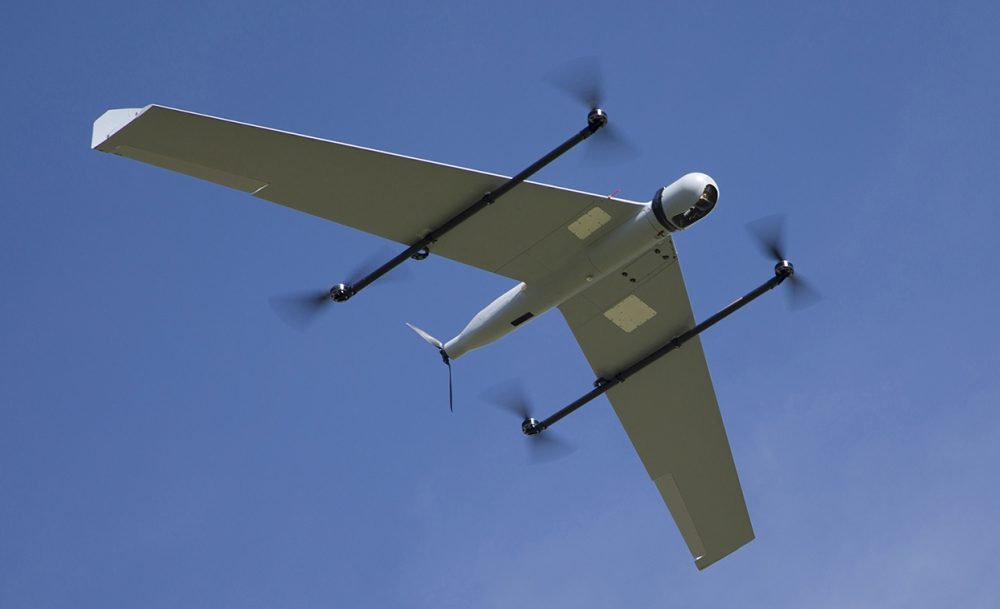

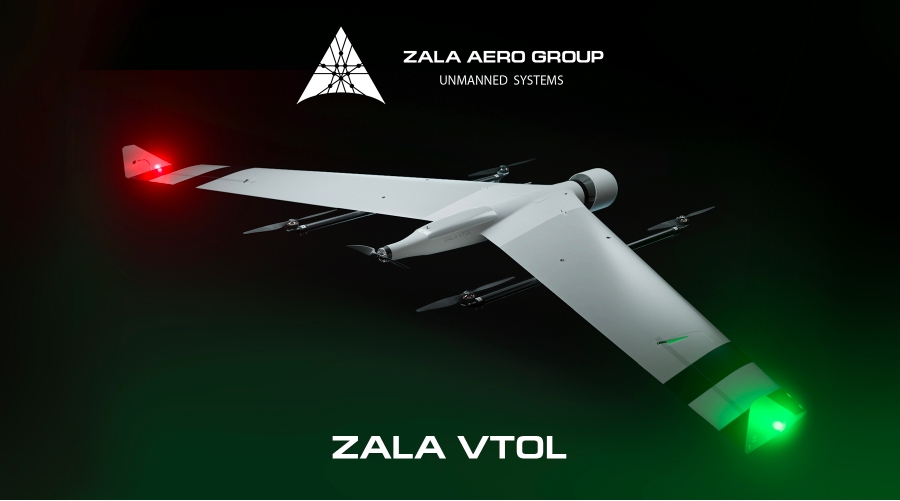

The new unmanned system ZALA VTOL combines the best qualities of an airplane and tiltrotor drones. It has the ability to change the configuration depending on the conditions of the task being performed and provides a huge potential for monitoring and aerial photography of any hard-to-reach places and areal objects.
Air & Air Defense Specifications
Engine
Electric
Max Speed
110.0 km/h
Range
50.0 km
Endurance
4.00 hrs
Wingspan
2815.00 m
System
Alternate Designation
ZALA VTOL
Type
Unmanned Aerial Vehicle UAV)
Manufacturer
Zala Aero Group
Mission
The new unmanned system ZALA VTOL combines the best qualities of an airplane and tiltrotor drones. It has the ability to change the configuration depending on the conditions of the task being performed and provides a huge potential for monitoring and aerial photography of any hard-to-reach places and areal objects.
On-Board Computer
The computing power of the ZX1 on-board computer based on artificial intelligence makes it possible to process data in Full HD and transmit HD video and photos over encrypted communication channels to the ground control station, ensuring the effectiveness of monitoring even before the aircraft lands.
The UAV of this class uses a built-in onboard computer that provides:
video transmission in HD;
the ability to record 3 channels of video in Full HD simultaneously;
the ability to transmit 2 video streams simultaneously (VC+IR);
automatic target tracking (AI)
digital image stabilization;
holding the position in space by video image in automatic mode without the presence of SNS;
transfer photos (24 MP) or video of the report card in Full HD to the ground control station at the operator's command;
500 GB encrypted solid-state drive.
Navigation System
Inertial navigation system with SNS correction (GPS/GLONASS) and two independent radio-range finders.
Operating Temperature
-40°С … +50°С
Maximum Payload Capacity
1.5 kg
Launch Method
Pneumatic/mechanic catapult / Automatic
Landing Method
Parachute, airbag / Automatic
Dimensions
Length
INA
Wingspan
2,815 mm
Height
INA
Takeoff Weight
10.5 kg
Maximum Payload Capacity
1.5 kg
Automotive
Engine Name
INA
Engine Type
Electric
Engine Power
INA
Maximum Speed
110 km/h
Maximum Range
50 + km
Maximum Altitude
2,000 km
Operational Altitude
100 - 2000 m
Endurance
4 hours
Details
Country of Origin
Russia
Category
UAVs
Air > UAVs
Filter Label
Z
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
10.5 kg
Operators (1)
Russia
