Hamaseh Iranian Unmanned Aerial Vehicle (UAV)

Hamaseh

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Hamaseh Iranian Unmanned Aerial Vehicle (UAV)
Other

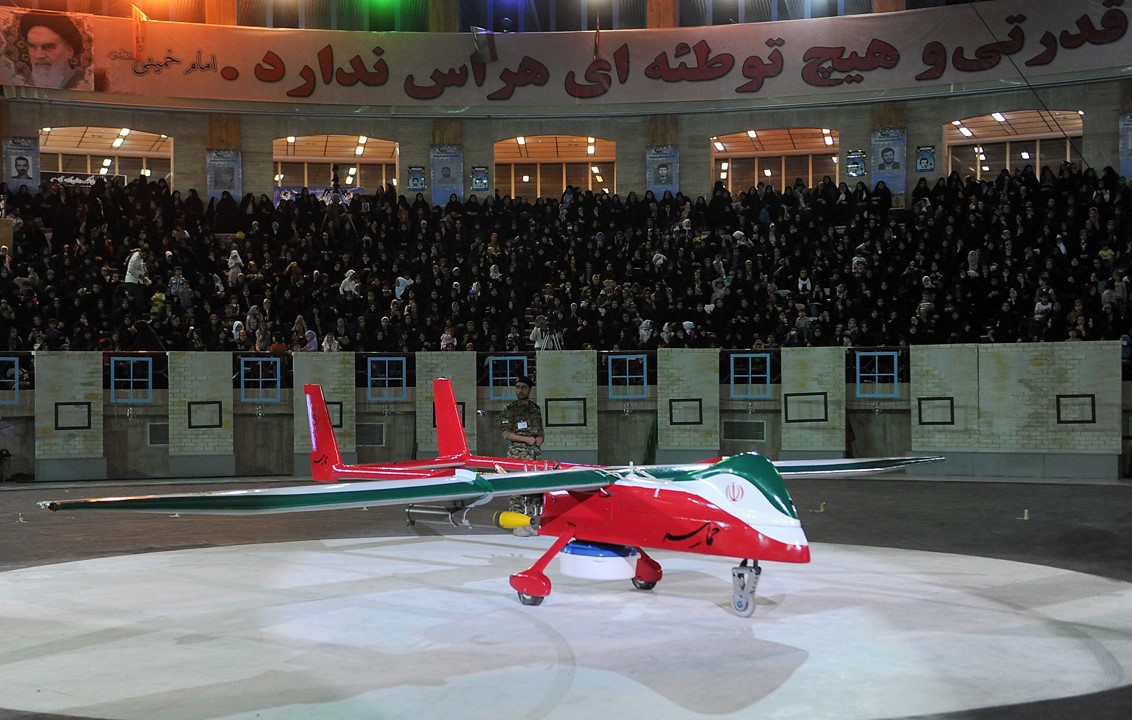

Hamaseh Iranian Unmanned Aerial Vehicle (UAV) (A)TRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
Hamaseh Iranian Unmanned Aerial Vehicle (UAV)
Designation
Hamaseh
Alternate Designation
Hamaseh
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
HESA
Date of Introduction
2016
Description

The Hamaseh Iranian Unmanned Aerial Vehicle (UAV) an Iranian tactical and reconnaissance unmanned aerial vehicle (UAV) with high flight endurance built by Iran Aircraft Manufacturing Industrial Company (HESA). The Hamaseh was unveiled in 2013 and entered service in 2016.

Air & Air Defense Specifications
Engine 1 x conventional engine driving two-bladed propeller at the rear of the fuselage in pusher arrangement.
Max Speed 194.0 km/h
Cruise Speed 165.0 km/h
Range 200.0 km
Endurance 11.00 hrs
Service Ceiling 4600 m
Wingspan 9.00 m
Payload Capacity 185 kg
System
Alternate Designation Hamaseh
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Iran Aircraft Manufacturing Industrial Company (HESA)
Payload Capacity The Hamaseh can carry up to 185 kg of fuel, equipment, and payload
Radar The Hamaseh can carry synthetic aperture radar, radar or communications jammers, and a camera.
Takeoff Launch via runway or jet-assisted take-off
Landing Recovery by runway landing or, in emergencies, a parachute.
Dimensions
Length 5.05 m
Height 1.9 m
Wingspan 9.0 m
Weight, Empty 230 kg
Weight, Maximum 415 kg
Automotive
Engine Name INA
Engine Type 1 x conventional engine driving two-bladed propeller at the rear of the fuselage in pusher arrangement.
Engine Power INA
Maximum Speed 194 km/h
Cruise Speed 165 km/h
Stall Speed 110 km/h
Maximum Range 200 km
Service Ceiling 4,600 m
Rate of Climb 4 m/s
Endurance 11 Hours
Armament
Note The Hamaseh can carry small bombs, grenades, or rockets.
Image Sources
Notes https://www.c4isrnet.com/unmanned/2016/04/20/iran-demonstrates-epic-combat-drone/; https://commons.wikimedia.org/wiki/File:Hameseh_UAV.jpg; https://globalmilitaryreview.blogspot.com/2013/05/iran-unveils-hamaseh-unmanned-combat.html;
Details
Country of Origin Iran
Category UAVs
Air > UAVs
Filter Label
H
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
5.05 m
Width
9 m
Height
1.9 m
Weight
415 kg
Operators (1)
Iran
