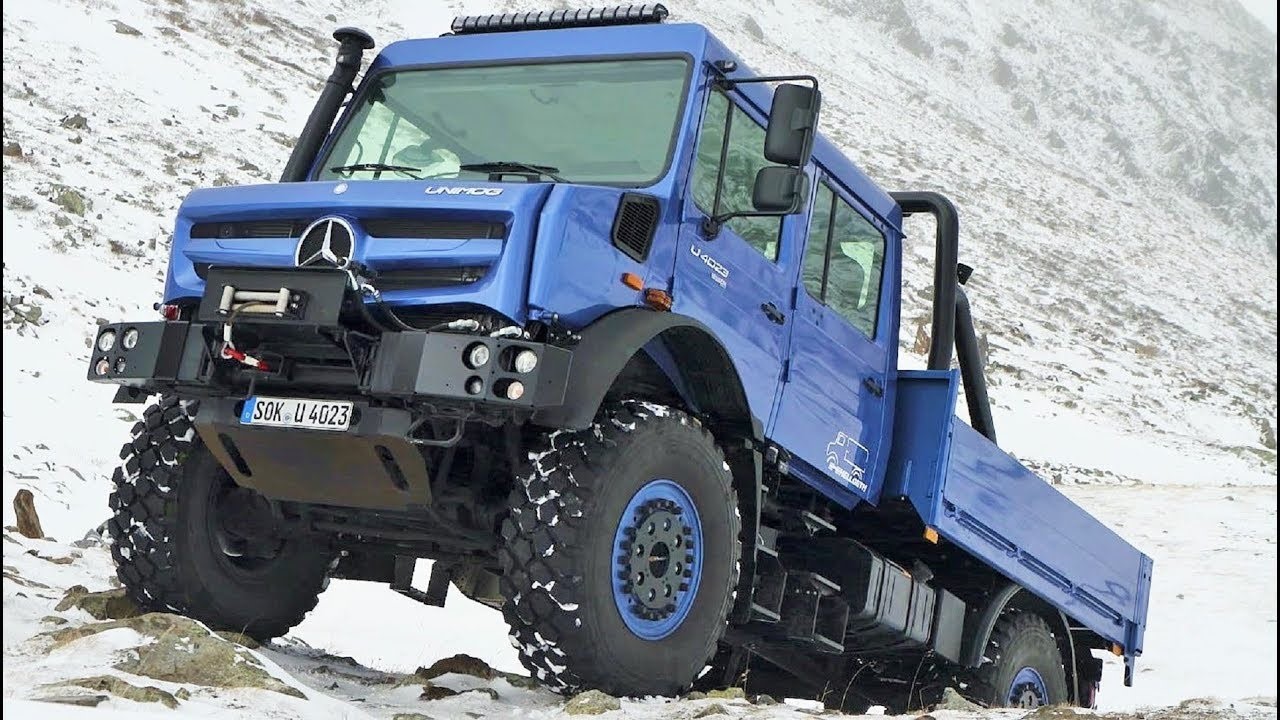

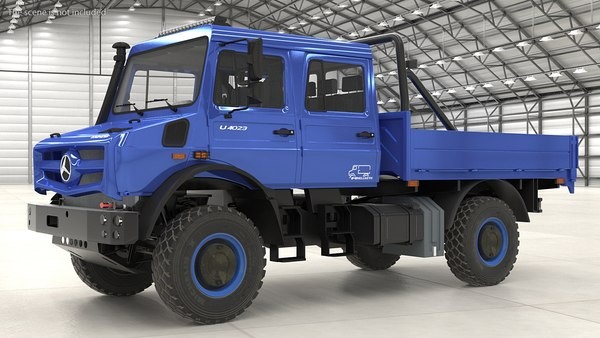

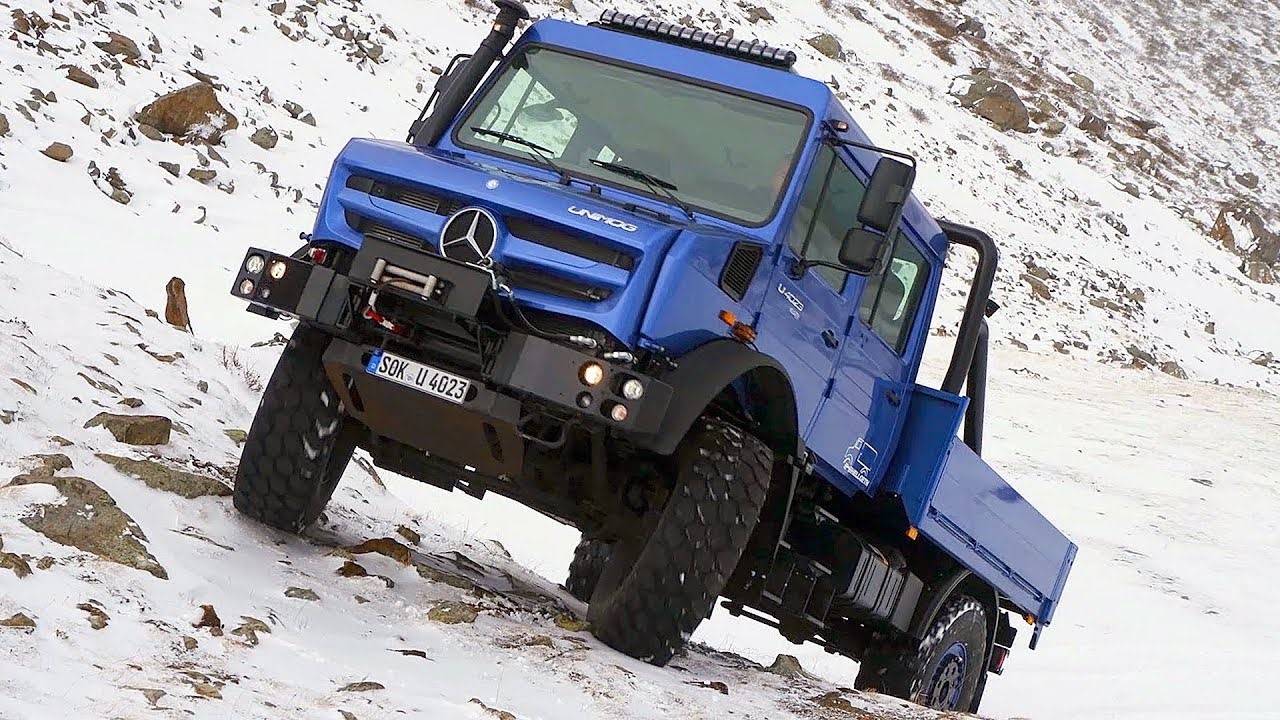

Unimog 4023 German 4x4 Light Utility Vehicle

U4023

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Unimog 4023 German 4x4 Light Utility Vehicle
Designation
U4023
Alternate Designation
U4023
Equipment Type
Manufacturer
Date of Introduction
2012
Description

Extremely maneuverable with 8 forward gears and 6 reverse gears with automatic transmission. The central tire pressure regulation system allows the driver to choose between three different tire pressure conditions: road, sand, and off-road. The OM 934 engine is Euro 6 emissions compliant. Cold engine start down to -15C. The Unimog U 4023/U 5023 makes its way. Advancement and safety, perfection and responsibility, power and innovation – those are just some of the values which Unimog customers rightfully connect with Mercedes-Benz and for which Unimog vouches. It combines great efficiency, state-of-the-art large-series production technology and outstanding off-road capability to form a truly successful overall concept that stands for Mercedes-Benz's decade-long experience in the development and production of highly off-road capable commercial vehicles. The off-road capability of the Unimog begins with its unique chassis concept: The torsion ally flexible chassis with 3-point mounting of cab, engine and transmission as well as the axle suspension with thrust tube technology, wishbones and coil springs allow axle articulation of up to 30 degrees. All-wheel drive, single tires, Tire control plus central tire inflation system and differential locks ensure maximum off-road traction. And the vehicle's low center of gravity ensures stability even on extremely steep slopes. When off-road, the Unimog also benefits in particular from its ground clearance of up to half a meter.

Ground Specifications
Crew 2
Engine Turbocharged Diesel (231 hp)
System
Alternative Designation U4023
Crew 2 ea
Gross Vehicle Weight 10.3 mt
Payload 8 mt
Axles 2 ea
Wheels 4 ea
Tire Size 335/80R20, 425/75R20, or 405/70 R24
Central Tire Inflation System Yes. “Tire Control Plus”. Preselect or manually select pre-programmed mode in the display. Operation via steering wheel buttons
Run Flat Tires No
Towing Capability 19 on highway with no cargo payload mt
Dimensions
Height, Overall 2.76 m (cab)
Length, Chassis Overall 6.0 m
Width, Overall 2.48 m
Wheelbase 3.85 m
Cargo Space
Height 1.4 m
Length 4.1 m
Width 2.28 m
Cargo Bed Area 6 m2
Automotive
Engine Power 231 hp
Speed, Maximum Road 89 km/h
Fording Depth 1.2 m
Engine Name OM 934 LA
Engine Type Turbodiesel
Ground Clearance 410 mm
Turning Radius 16.3 m
Engine Size 5.1 liters
Fuel Capacity 160 liters main tank. 240 liters with auxiliary tank.
Angle of Approach 41 degrees
Angle of Departure 39 degrees
Details
Country of Origin Germany
Category Tactical Utility Vehicles
Land > Infantry Vehicles > Tactical Utility Vehicles
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
10300 kg
Operators (1)
Germany
