MAN HX77 German 8x8 Heavy Utility Truck

HX77

Heavy Utility Truck

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

MAN HX77 German 8x8 Heavy Utility Truck

Designation

HX77

Alternate Designation

HX77; HX 32.440

Equipment Type

Heavy Utility Truck

Manufacturer

MAN

Date of Introduction

2007

Description

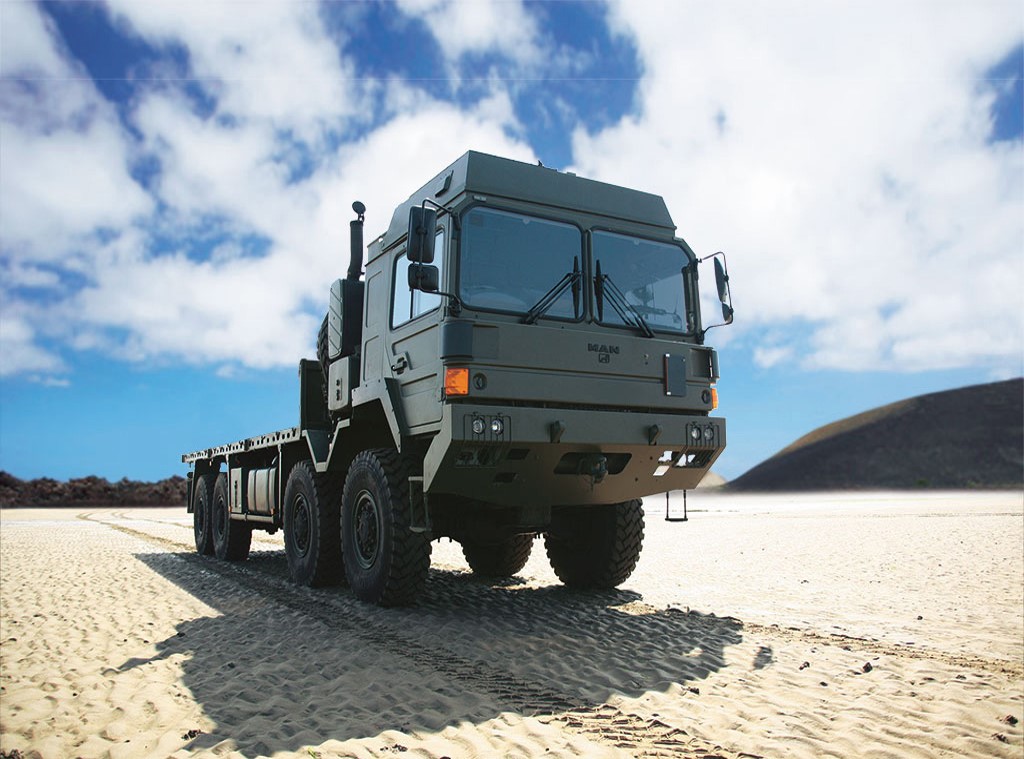

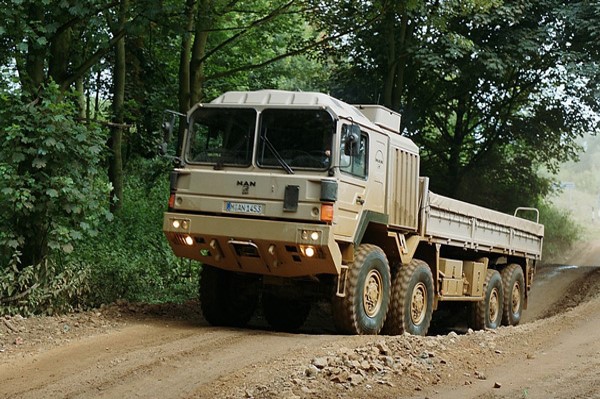

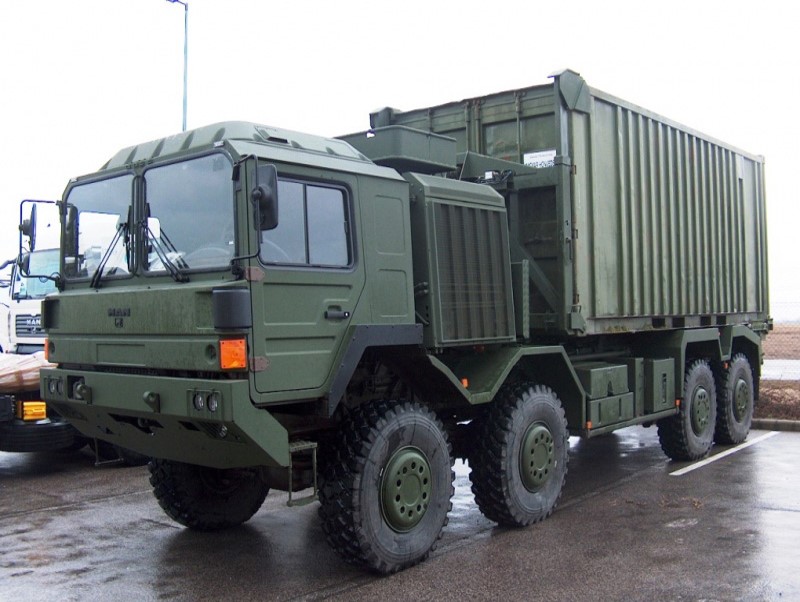

The MAN HX77 is an 8x8 heavy tactical truck. It is a part of HX range of tactical trucks. There are also 4x4 (HX60) and 6x6 (HX58) vehicles in this range. These vehicles were specially developed to meet military needs and replaced in production the LX and FX ranges. The MAN HX77 is intended for off-road operation.

Ground Specifications

Crew 1

Engine 10.518 liter, in line-6, turbocharged, common rail injection, water cooled, 4 stroke, diesel (440 hp)

Active Protection None

Max Speed 88.0 km/h

Range 800.0 km

Variants

HX58 HX 26.440 6×6 BB

HX60 HX 18.330 4×4 BB

HX61 INA

HX77 The MAN HX77 is an 8x8 heavy tactical truck. It is a part of HX range of tactical trucks.

HX81 HET

System

Alternative Designation HX77; HX 32.440

Type Heavy Utility Truck

Manufacturer MAN

Configuration 8x8

Family MAN RMMV HX range of tactical trucks

Crew 1 ea

Cab Seating 1 + 2

Payload Capacity 15 tons

Tow Load Capacity 13.2 tons

Note The MAN HX series was succeeded in production by an improved HX2 series. Also production of more capable MAN SX series reportedly ceased in 2019.

Dimensions

Length 10.13 m

Width 2.55 m

Height 3.92 m

Wheel Base 4.5 m

Empty Weight 13,500kg (chassis-cab)

Gross Vehicle Weight 32,000 kg

Ground Clarence, Front 420 mm (front, both)

Ground Clearance, Rear 386 mm (rear, both)

Automotive

Engine Name MAN D2066 LF, EURO IV

Engine Type 10.518 litre, in line-6, turbocharged, common rail injection, water cooled, 4 stroke, diesel

Engine Power 440 hp at 1,900 rpms

Fuel Capacity 400 litres

Gearbox ZF 12 AS 2301 OD AS-Tronic with12 forward and 2 reverse gears

Transfer Case MAN G172 two-speed with engageable front axle drive

Electrical System 24 V (three-phase)

Alternator 28 V, 110 A

Steering ZF 8098, hydraulic power-assistance

Suspension front axle; parabolic leaf springs with progressively acting rubber assistors and shock-absorbers: rear axles; inverted multi-leaf trapezoidal springs with radius rods, shock-absorbers and anti-roll bar on second rear axle

Brakes dual circuit, air, drums on all axles, Electronic Brake System (EBS) with ABS with off-road logic included supplemented by air-actuated exhaust brake with additional Exhaust Valve Brake system

Maximum Speed 88 km/h (limited)

Range 800 km

Gradient 60%

Side Slope 40%

Vertical Step 0.6 m

Trench 1.8 - 2.5 m

Fording 1.2 m

Turning Radius 12.6 m

Main Weapon System

Note There is no weapons system mounted on the MAN HX77.

Protection

Armor It is of all-steel construction, tt provides the crew with excellent protection from small arms fire, artillery shell splinters, landmines and IED blasts.

Applique Armor Yes, The cab can be fitted with add-on armor.

Active Protection System No

Mine Clearing No

NBC Protection INA

Smoke Equipment No

Image Sources

Notes https://www.pinterest.com/pin/773071092262413265/; https://twitter.com/i/flow/login?redirect_after_login=%2Ftanax_trucks; https://ar.pinterest.com/pin/400187116872487379/?amp_client_id=CLIENT_ID%28_%29&mweb_unauth_id=;

Details

Country of Origin Germany

Category Logistics

Land > Combat Support Vehicles > Logistics

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

10.13 m

Width

2.55 m

Height

3.92 m

Weight

32000 kg

Operators (3)

United Kingdom

Denmark

New Zealand
