Uran-6 Russian Demining Unmanned Ground Vehicle (UGV)
Uran-6
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Uran-6 Russian Demining Unmanned Ground Vehicle (UGV)
Designation
Uran-6
Alternate Designation
Uran-6; MRTK-R
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
JSC "766 UPTK"
Date of Introduction
2016
Description

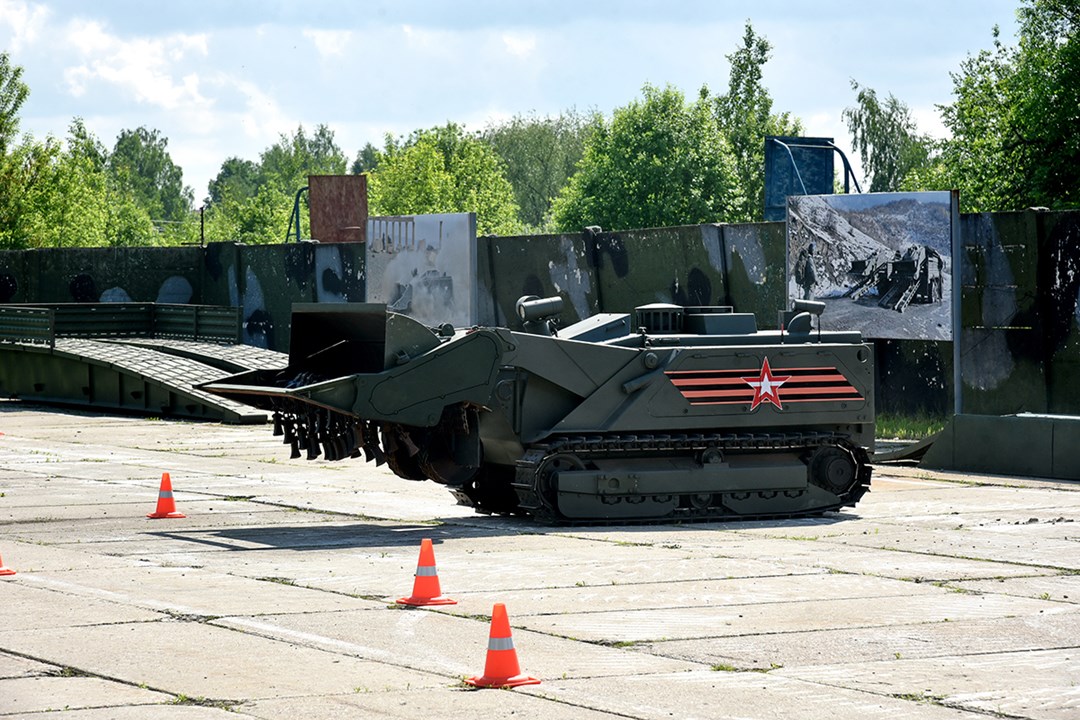

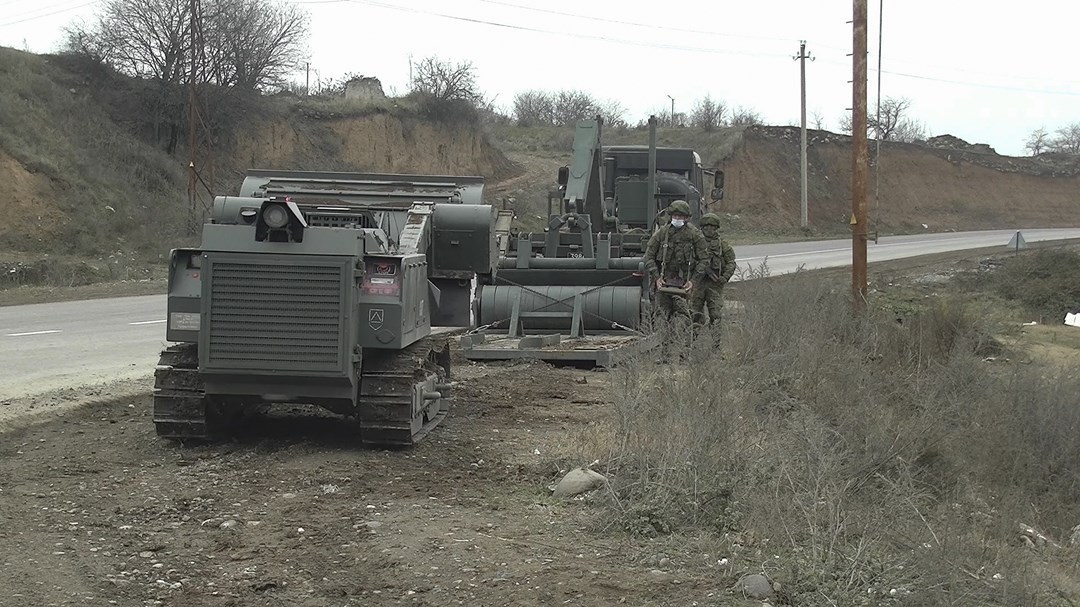

The Uran-6 Russian Demining Unmanned Ground Vehicle (UGV) is a Russian version of the Croatian-produced MV-4 DOK-ING mine clearing UGV. The platform has been designed as multifunctional, robotic, mine clearing system to carry out mine clearance operations from anti-personnel (AP) mines and explosive ordnance (to 1 kg of TNT), all by remote control.
Ground Specifications
Engine
Diesel (240 hp)
Max Speed
5.0 km/h
Range
1000.0 km
System
Alternative Designation
Uran-6; MRTK-R
Type
Demining Unmanned Ground Vehicle (UGV)
Manufacturer
JSC “766 UPTK”
Configuration
Track
Crew
Unmanned
Tiller
The tiller is fitted to the front of the vehicle with the shovel mounted to the rear.
Mine Clearance

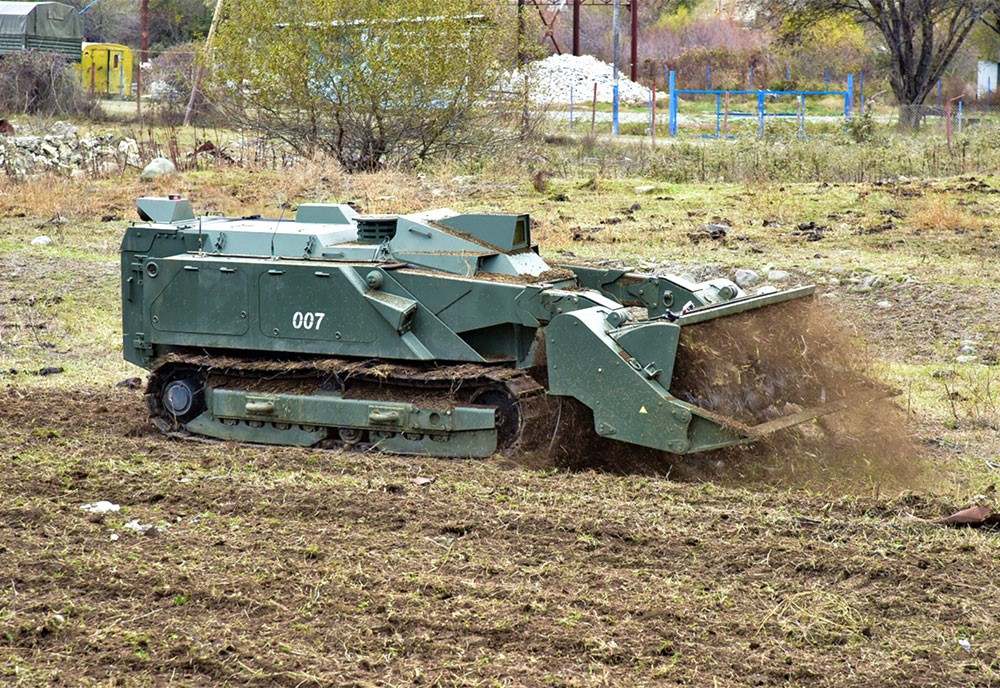

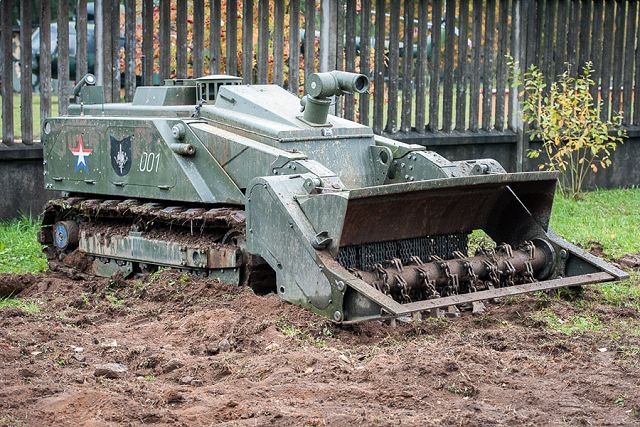

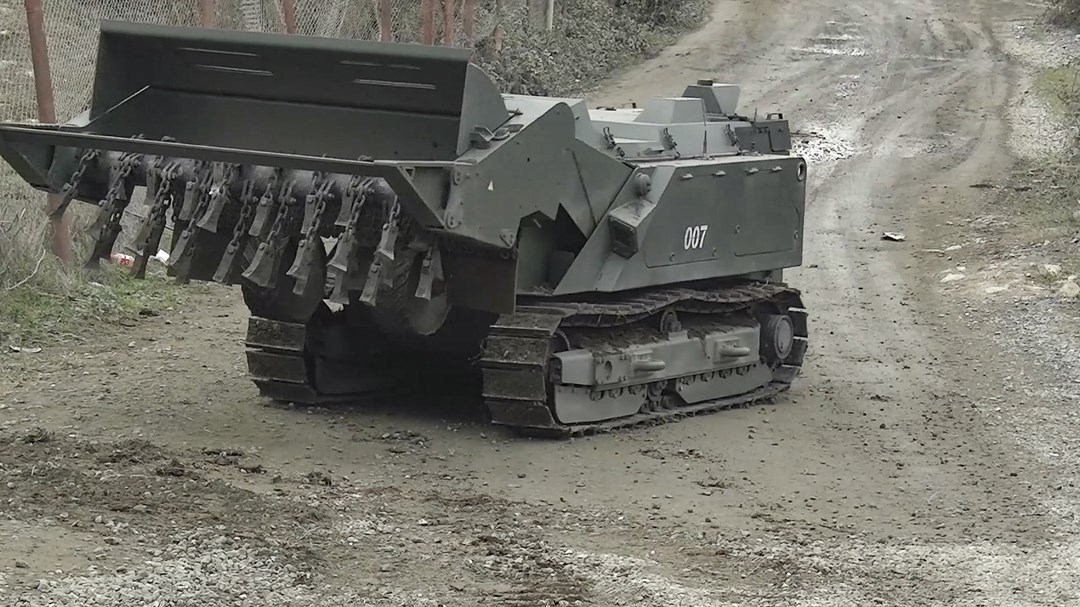

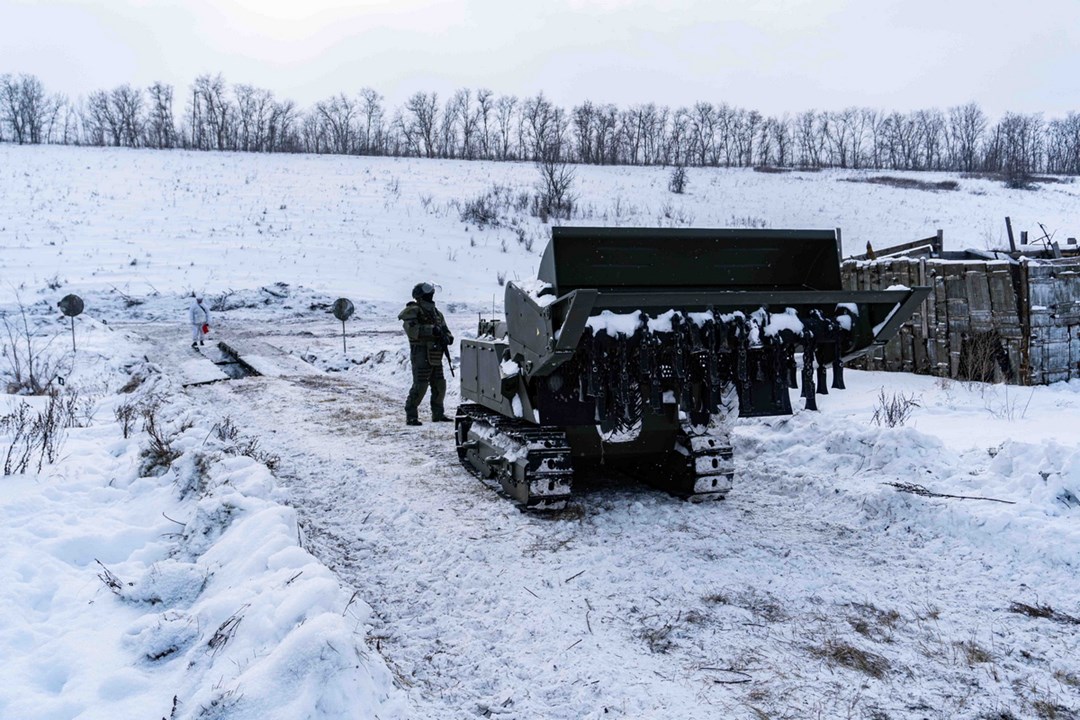

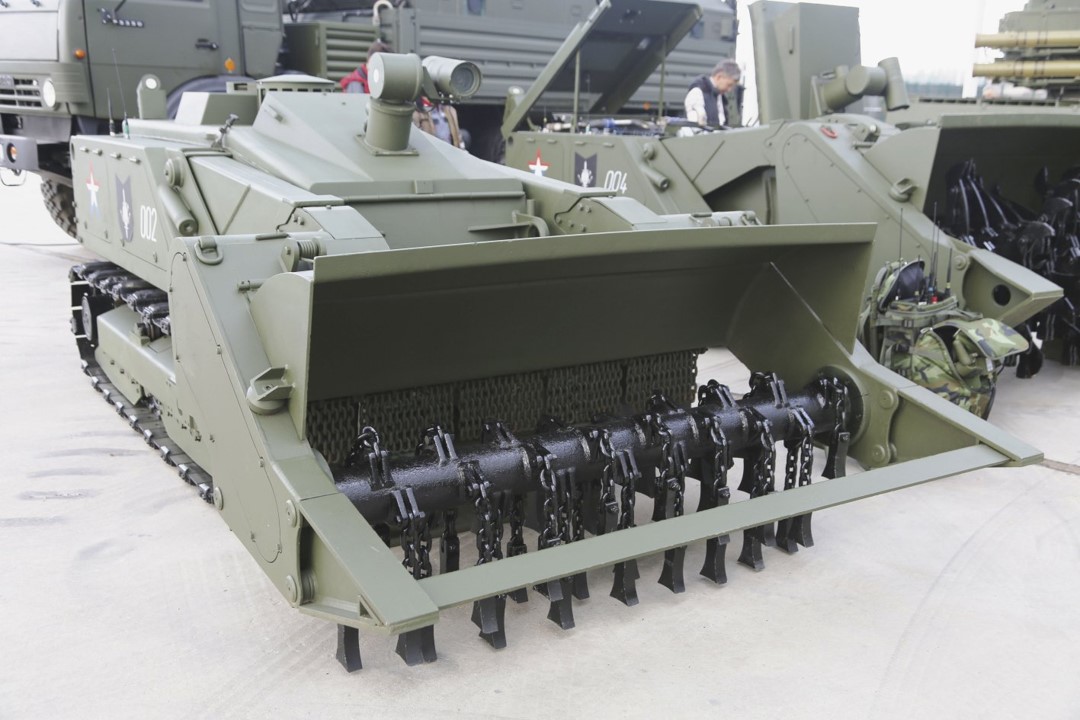

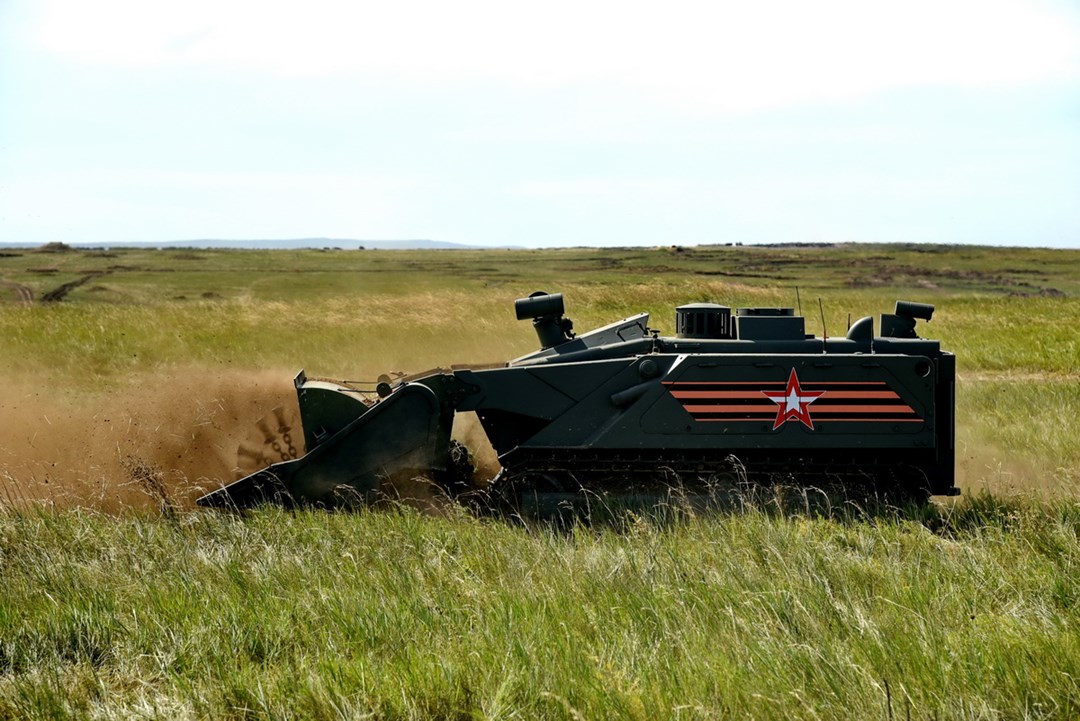

Mine clearance is carried out by a flail or other additional tool attachments, all mounted in front of the prime mover that either activates or shatters AP mines. The flail has 32 chains, each 33 cm in length that hammer through dense vegetation or soil to a depth of 35 cm. The shaft rotates the flails up to 600–700 rpm with the impact destroying or exploding the mines.
Path Clearing Width
1.6 m
Clearing Depth
35 cm
Sensors
Four cameras are mounted to provide the operator with a 360° view. Two cameras are protected by armour and situated on either side of the chassis with one being able to view behind the platform. The main camera is situated at the top centre of the chassis and can rotate to provide 360° situational awareness. The unit transmits real-time imagery to the remote-control system.

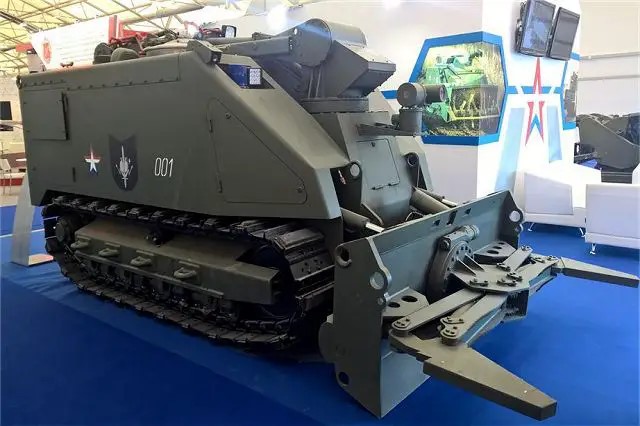

Gripper Maximum Lifting Capacity
1,000 kg

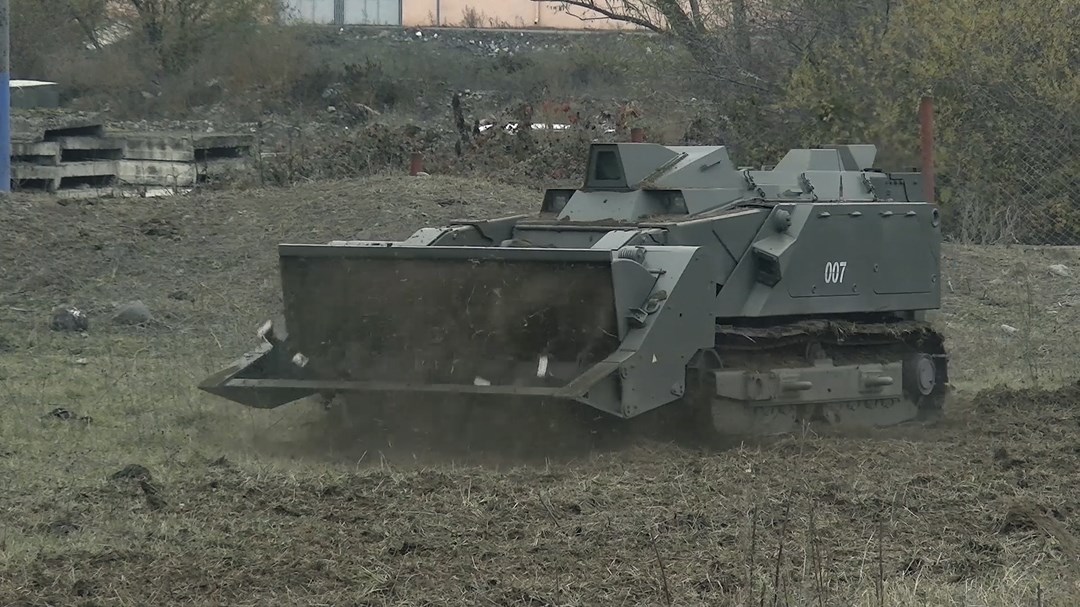

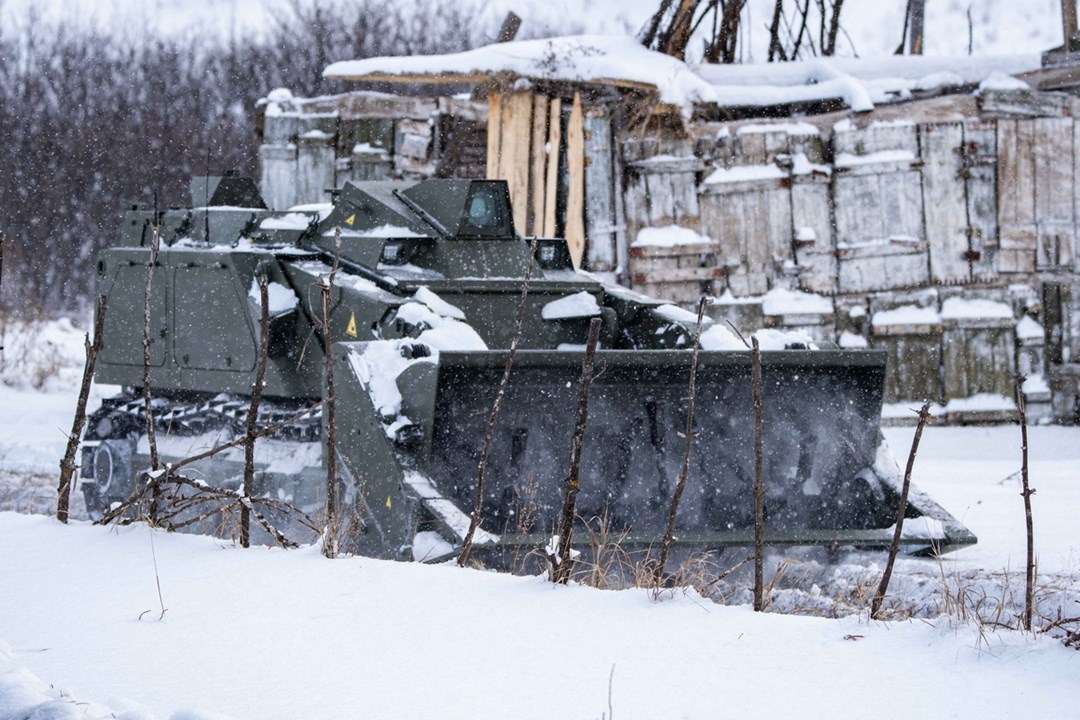

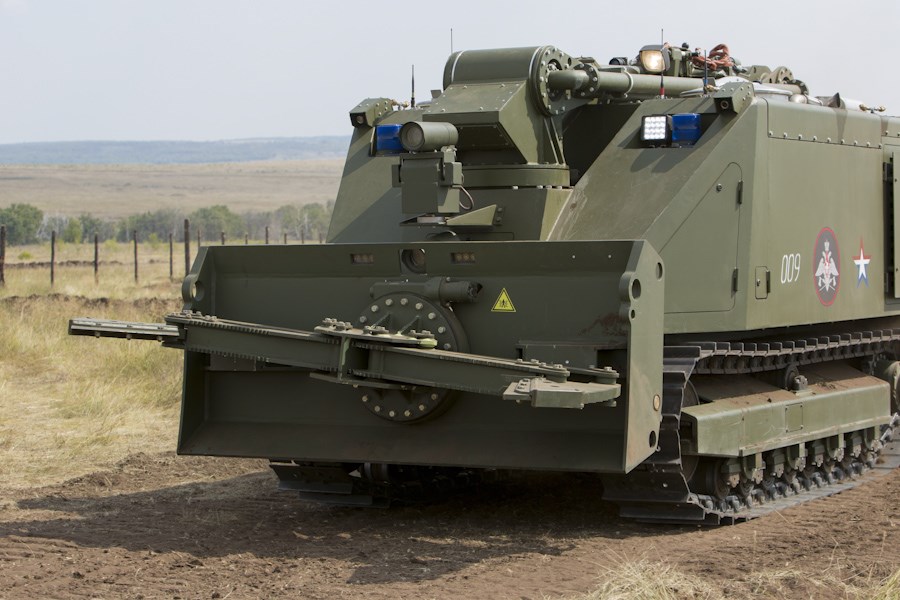

Bulldozer Blade Width
180 cm
Communications

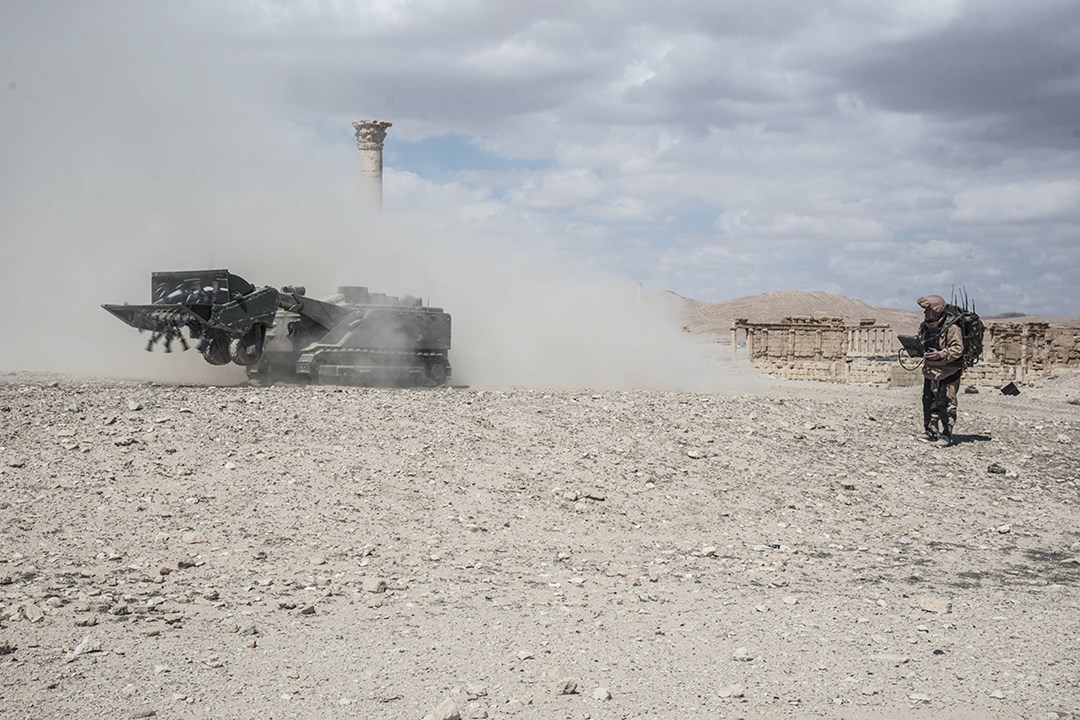

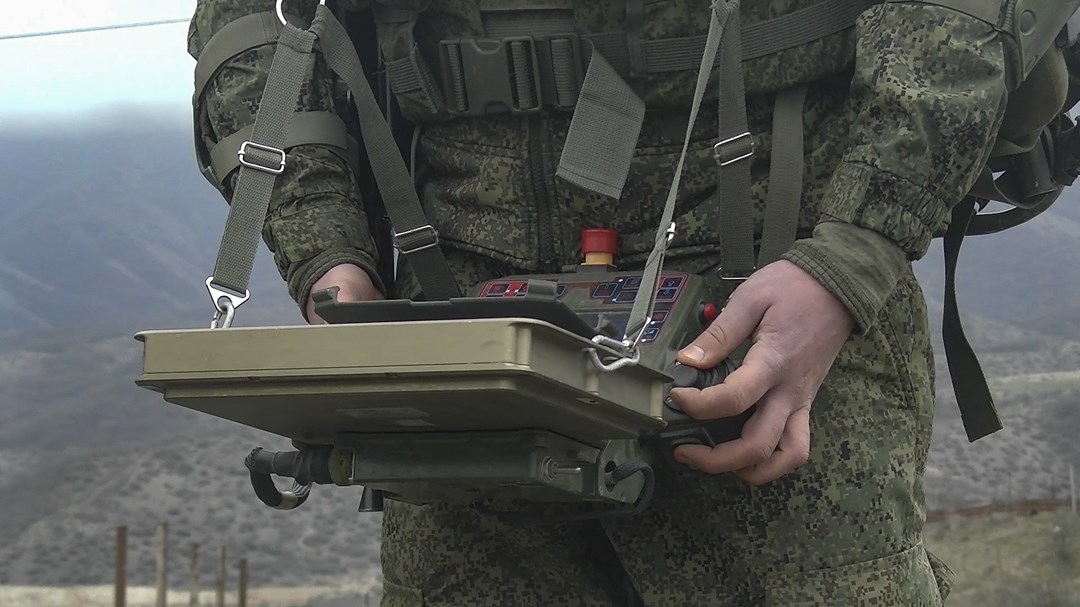

The operator can remotely control the UGV from an armoured vehicle or from a safe distance from 50 m up to 1 km via radio.
Operating Temperature
–50°C to 50°C
Dimensions
Length
4.56 m (with tool)
Width
2.01 m (with tool)
Height
1.47 m
Weight
6 tons
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
240 hp
Fuel Capacity
70 liters
Maximum Range
1,000 m
Maximum Speed
5 km/h
Working Speed
0.5 km/h
Vertical Clearance
1.2 m
Trench
172.5 cm
Ground Pressure
58.9 Pa
Side Slope
20°
Maximum Gradient Climb
20°
Endurance
5 hours
Protection
Armor
The Uran-6 can neutralise an explosive object with a potential of 60 kg (132 lbs) of TNT equivalent. The engine and vital components of the machine are protected by steel plates. The self-supporting hull has HARDOX steel plates 8 to 10 mm thick and the clearing tool hammers are made of steel, which are highly resistant to wear and mine detonation. The Uran-6 is resistant to the fragmentation of landmines, and its low profile reduces its susceptibility to shrapnel damage.
Applique Armor
INA
NBC Protection
No
Smoke Equipment
No
Image Sources
Notes
https://www.militaryfactory.com/armor/detail.php?armor_id=1219; https://www.armyrecognition.com/russia_russian_unmanned_aerial_ground_systems_uk/uran-6_mrtk-r_unmanned_multifunctional_demining_system_robot_data_sheet_specifications_pictures_video_10901163.html; https://commons.wikimedia.org/wiki/File:Multifunctional_robotic_mine_sweeping_system_%22Uran-6%22_during_the_%22Armiya_2020%22_exhibition.jpg;
Details
Country of Origin
Russia
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.56 m
Width
2.01 m
Height
1.47 m
Weight
6000 kg
Operators (1)
Russia
