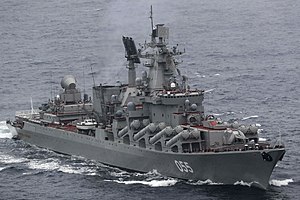

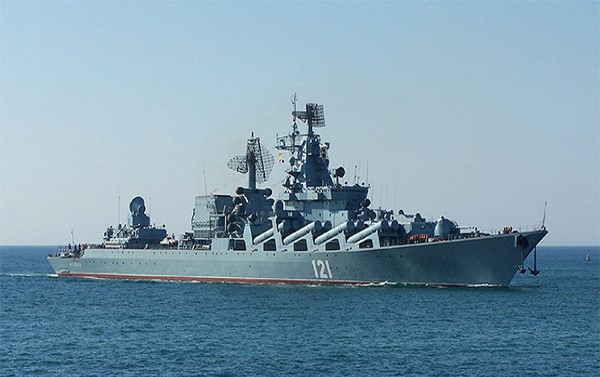

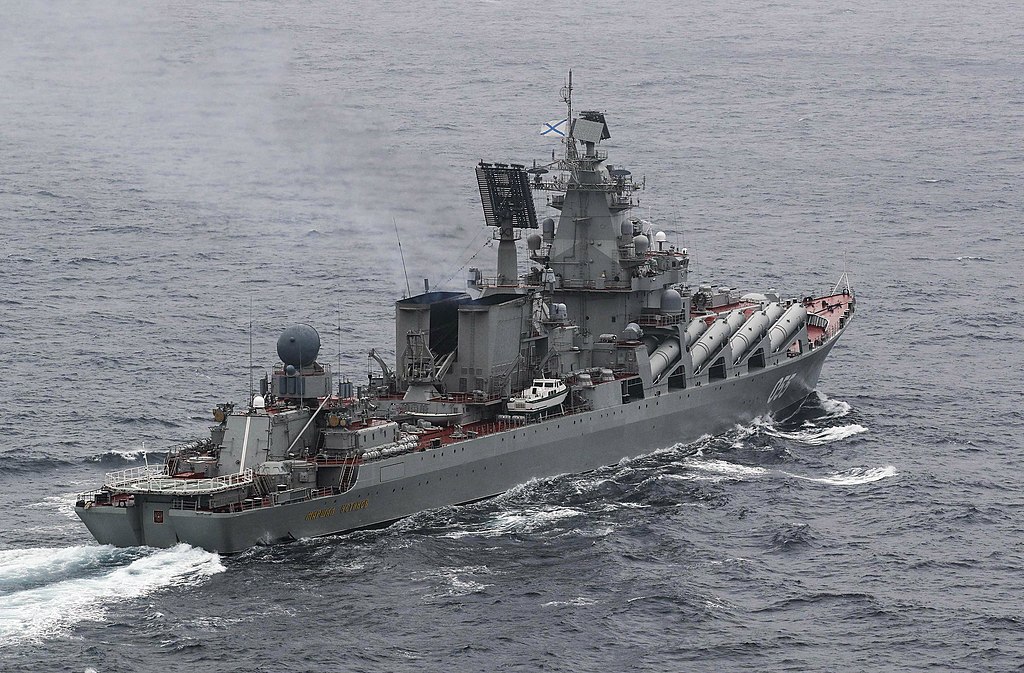

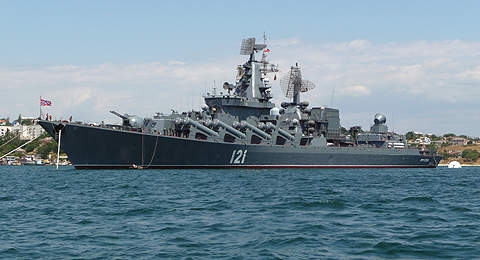

Slava Class (Project 1164 Atlant Class) Russian Guided Missile Cruiser

Slava Class

Guided Missile Cruiser
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Slava Class (Project 1164 Atlant Class) Russian Guided Missile Cruiser
Designation
Slava Class
Alternate Designation
Slava Class; Project 1164 Atlant Class
Equipment Type
Guided Missile Cruiser
Manufacturer
61 Communards Shipyard
Date of Introduction
1982
Description

The Slava class, Soviet designation Project 1164 Atlant, is a class of guided missile cruisers designed and constructed in the Soviet Union for the Soviet Navy, and currently operated by the Russian Navy. The design started in the late 1960s, based around the use of the P-500 Bazalt missile, and was intended as a less expensive conventionally powered alternative to the nuclear-powered Kirov-class battlecruisers. Moskva is armed with P-1000 Vulkan AShM missiles, developed in the late 1970s to late 1980s. It is not known which Slava-class cruisers carry P-1000s other than Moskva. There was a long delay in this program, while the problems with the Bazalt were resolved. These ships acted as flagships for numerous task forces. All ships were built at the 61 Kommunar yard, in Mykolaiv (Nikolaev), Ukrainian SSR. The class was a follow-up to the Kara-class cruiser which the Soviet Navy typed as a Large Anti-submarine Ship (Russ. BPK), constructed at the same shipyard and appears to be built on a stretched version of the Kara-class hull. The Slava class was initially designated BLACKCOM 1 (Black Sea Combatant 1) and then designated the Krasina class for a short period until Slava was observed at sea. The SS-N-12 launchers are fixed facing forward at around 8° elevation with no reloads available. As there was nothing revolutionary about the design of the class western observers felt they were created as a hedge against the failure of the more radical Kirov class. The helicopter hangar deck is located 1/2 deck below the landing pad with a ramp connecting the two. Originally 10 ships were planned, but with the collapse of the Soviet Union, only three were completed. A fourth vessel was launched, but final construction remains incomplete and the ship has not been commissioned into service. Following the collapse and the re-emergence of the nation of Russia, the three finished ships serve in the Russian Navy and the uncompleted fourth vessel renamed Ukrayina, is owned by Ukraine. Efforts have been made to complete and update the unfinished ship; in 2010, Ukrainian President Viktor Yanukovych stated that Russia and Ukraine would work together on the project. Russia has also expressed interest in purchasing the vessel, which Ukraine had previously offered for sale. However, as of early 2011, no final agreement has been concluded between the two countries, on this matter. The Russian navy has plans for extensive upgrades of all their Slava-class vessels during the 2010s; completing work on Ukrayina may serve as a testbed for this. As of mid-2016, the fourth hull remains afloat in the shipyard uncompleted.

Naval & Littoral Specifications
Crew 485
Beam 21.50 m
Variants
Moskva (ex-Slava) Commissioned: 1982 Status: Sunk by two Ukrainian R-360 Neptune anti-ship missiles on 14 April 2022.
Marshal Ustinov (ex-Admiral Lobov) Commissioned: 1986 Status: Active Fleet: Northern Fleet
Varyag (ex-Chervona Ukraine) Commissioned: 1989 Status: Active Fleet: Pacific Fleet
Ukrayina (ex-Komsomolets, ex-Admiral Flota Lobov) Commissioned: Unfinished Status: Unfinished Fleet: INA
Oktyabrskaya Revolutsiya Commissioned: Cancelled and disassembled on the way in 1990 Status: Cancelled and disassembled on the way in 1990 Fleet: INA
Admiral Flota Sovetskovo Soyuza Gorshkov Commissioned: Cancelled Status: Cancelled Fleet: INA
Varyag Commissioned: Cancelled Status: Cancelled Fleet: INA
Sevastopol Commissioned: Cancelled Status: Cancelled Fleet: INA
System
Alternative Designation Slava Class; Project 1164 Atlant Class
Type Guided Missile Cruiser
Builder 61 Communards Shipyard
Crew 485 (66 Off, 419 WO/Enl), alternate information 476-529 (84 Off, 75 WO, 370 Enl).
Dimensions
Length 186.0 m
Beam 21.5 m
Draught 7.6 m
Displacement, Standard 10,000 tons
Displacement, Full Load 12,500 tons
Propulsion System
Engine Name GTU M21 2x M70 cruise gas turbines and 4x M90 boost gas turbines , 2 cruise steam turbines, 2 exhaust gas boilers, 4 x M8KF Gas turbines
Engine Power 130,000 shp (97,000 kW)
Shafts 2 ea
Speed 32 knots (59 km/h)
Range 5,560 km at 18 knots
Endurance INA
Gun Weapon Systems
Gun System #1
Name 1 x AK-130 130mm Automatic Naval Cannon
Type Automatic Naval Cannon
Caliber 130 mm
Quantity 1 x AK-130 Automatic Naval Cannon Stations
Length 9100 mm (70 calibers)
Barrel Length INA
Weight 8 tons
Maximum Elevation +85 deg
Minimum Elevation INA
Traverse Range INA
Rate of Fire 90 rds/min
Maximum Firing Range 23,000 m (surface targets); 15,000 m (aircraft); 8,000 m (missiles)
Autoloader The autoloader removed the need of a loader and allows for continuous firing until the ammo storage is emptied.
Fire Control System The fire control system has sight correction devices for bursts of falling shells and a target post for firing at coastal targets. Its high rate of fire, when provided with adequate types of shells, allows the cannon to serve as anti-aircraft artillery. The cartridges include charges with remote and radar detonators.
Radar It uses the MR-184 radar, a dual-band radar. It can track and target two targets. Its range is 75 km with a tracking range of 40 km.
Guidance System The Lev-218 (MR-184) guidance system was developed by KB Ametist on the basis of Lev-114: (MR-114 from the AK-100). According to some reports, Lev-214 (MR-104) was used instead on Project 956 destroyers. The system includes a target tracking radar, a TV-sight, the DVU-2 laser rangefinder, a ballistic computer, equipment selection system and counter-jamming. The system is able to receive target designation from detection equipment on the ship, movement parameters, elevate the cannons and can adjust shooting bursts as well as track projectiles automatically. The DVU-2 , along with the software, was developed by TsNIIAG and PO LOMO, using an autonomous indirectly stabilized laser beam in 1977.
Gun System #1 Ammunition
Type Rifle
Caliber 130 mm
Basic Load INA
Gun System #2
Name 6 × AK-630 Close-In Weapons Systems (CIWS)
Type Close-In Weapons Systems (CIWS)
Caliber 30 mm
Main Armament 1 or 2 AO-18 autocannons
Secondary Armament 4 x 9A4172 Missiles
Barrel Length 1,629 mm
Barrels 6 ea
Width 1,240 mm
Height 1,070 mm (above deck)
Weight 1,000 kg (gun mount)
Crew 1 ea
Action Gas-operated rotary cannon
Elevation +88° ... -12° (50°/sec)
Traverse ±180° (70°/sec)
Rate of Fire 4,000–5,000 rounds/min
Muzzle Velocity 880–900 m/s
Maximum Firing Range the projectiles self-destruct past 5,000 m
Effective Firing Range 4,000 m (aerial) 5,000 m (maritime)
Feed System Belt: 2,000 rounds (additional 1,000 rounds in reserve feed bin.
Sights Radar / TV-optical
Gun System #2 Ammunition
Type Rifle
Caliber 30 mm
Shell HEI-Frag, Frag-T
Shell Weight 0.39 kg
Basic Load 4,000
Missile Weapon Systems
Missile Weapon System #1
Name 16 x P-1000 Vulkan Anti-Ship Missile Cruise Missile
Type Anti-Ship Missile Cruise Missile
Manufactuer P.A. Strela
In Service 1982-Present
Proliferation The P-1000 has been installed on the Slava class cruiser Varyag, and some sources report P-1000 missiles on her sister ship Moskva.
Length 11.7 m
Diameter 0.88 m
Wingspan 2.6 meters
Weight 2 tons
Warhead High explosive or nuclear
Warhead Weight 1,000 kg
Blast Yield 350 kt
Engine Turbojet
Guidance System Semi-active radar homing, terminal active radar homing.
Operational Range 800 km
Flight Altitude 50–5,000 m
Speed Mach 2.5
Basic Load 16 x P-1000 Vulkan Anti-Ship Missile Cruise Missile
Missile Weapon System #2
Name 16 x S-300F (SA-N-6 Grumble) Cruise Missiles
Type Naval Surface-to-Air Missile
In Service 1984-Present
Missile Name 5V55RM missile
Launcher Vertical Launching System
Length 7 m
Diameter 450mm
Weight 1,450 kg
Warhead 100 kg
Target Acquisition Radar #1 MR-750 Top Steer target acquisition radar, D/E band, range 300 km
Target Acquisition Radar #2 Top Pair target acquisition radar, C/D band, range 200 km.
Target Tracking Radar 3R41 Volna Top Dome target tracking radar, I/J band, range 100 km.
Speed 6,120 kph (3,800 mph)
Maximum Range 90 km
Minimum Range 7.00 km
Floor 25 m
Basic Load 16 x S-300F (SA-N-6 Grumble) Cruise Missiles
Missile Weapon System #3
Name 40 x 4K33 OSA-M (SA-N-4 Gecko) Navel Surface-to-Air Missiles
Type Navel Surface-to-Air Missile
In Service 1974-Present
Missile Name 9M33M3 Missile
Length 3158 mm
Diameter 209.6 mm
Weight 170 kg
Warhead Frag-HE
Warhead Weight 16 Kg
Detonation Mechanism Contact and proximity
Propellant Solid propellant rocket motor
Operational Range 15 km
Flight Altitude 12,000 m
Boost TIme 2 s boost, then 15 s sustain
Speed 1020 m/s
Guidance System RF CLOS
Accuracy 5 m
Basic Load 40 x 4K33 OSA-M (SA-N-4 Gecko) Navel Surface-to-Air Missiles
Torpedo System
Torpedo Tubes 10 (2 x 5) 533mm torpedo tubes
Torpedo Name INA
Basic Load 20 x torpedoes
Anti-Submarine Mortars
Name 2 x RBU-6000 Smerch-2 Anti-Submarine Rocket Launcher
Type Anti-Submarine Rocket Launcher
Morar Name RGB-60 Projectile
Mortar Range Ballistic 1 - 350 m to 1700 m, Ballistic 2 - 1500 m to 5500 m
Mortar Depth 10 to 500 m
Sink Rate 11.6m/s
Mortar Basic Load +24 Mortars
Aircraft Facilities
Helicopter 1 Kamov Ka-25 or Kamov Ka-27 Helicopter
Fire Control System
FCS #1 1 x 3R41 Volna/Top Dome SA-N-6 SAM control.
FCS #2 1 x MPZ-301 Baza/Pop Group SA-N-4 SAM control.
SSM Control Argument/Front Door-C SSM control.
Radar Systems
Long-Range Air Search Radar 1 x MR-800 Voshkod/Top Pair 3-D long range air search.
Secondary Air Search Radar 1 x MR-700 Fregat/Top Steer (first two) or 1 x MR-710 Fregat-MA/Top Plate (second two) 3-D air search.
Sonar Systems
Bow Sonar 1 x MG-332 Tigan-2T/Bull Nose hull-mounted LF.
Stern Sonar 1 x Platina/Horse Tail MF VDS.
Protection
Hull Splinter plating
Electronic Warfare 1 x Kol'cho suite with Gurzhor-A&B/Side Globe intercept and the
Decoys 2 x PK-2 decoy RL, 12 PK-10 decoy RL (in last two units only) Bell Crown intercept
Jammers 1 x MR-404/Rum Tub jammers
Details
Country of Origin Russia
Category Naval
Naval
Filter Label
S
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
186 m
Width
21.5 m
Height
Weight
12500000 kg
Operators (2)
Russia
Ukraine
