120 KRH 92 Finish 120mm Mortar
120 KRH 92
Multiple Launch Rocket System (MLRS)
Other
Basic Information
Name
120 KRH 92 Finish 120mm Mortar
Designation
120 KRH 92
Alternate Designation
120 KRH 92
Equipment Type
Multiple Launch Rocket System (MLRS)
Manufacturer
Patria Vammas Oy
Date of Introduction
1992
Description

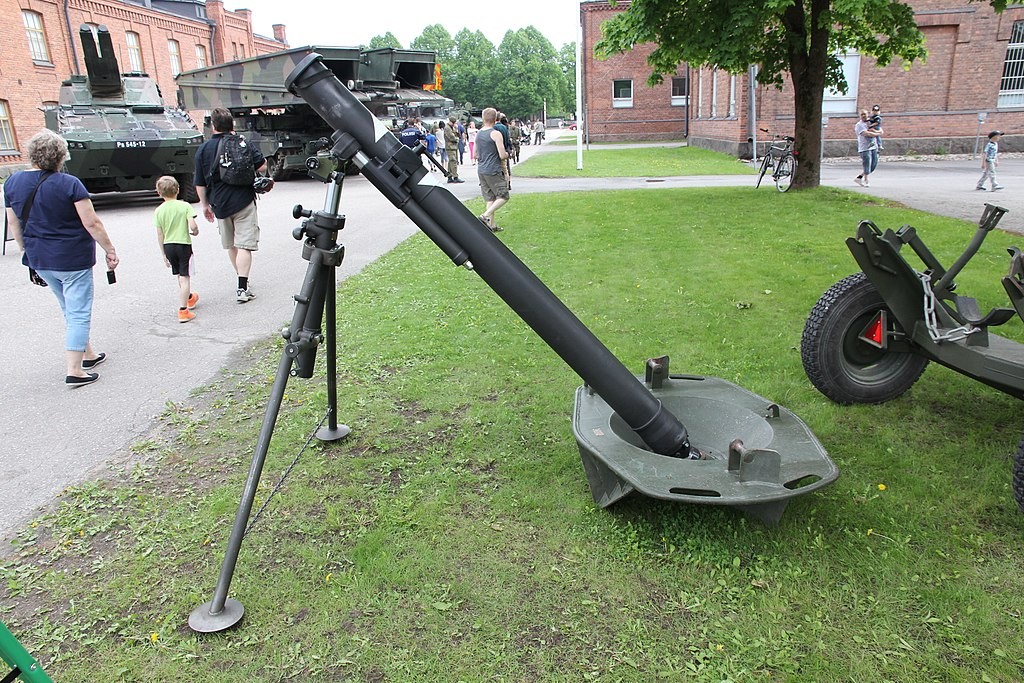

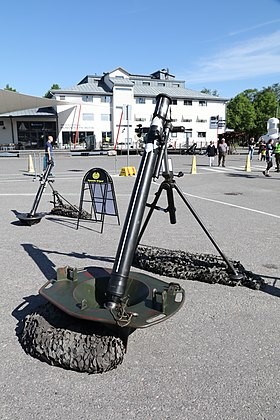

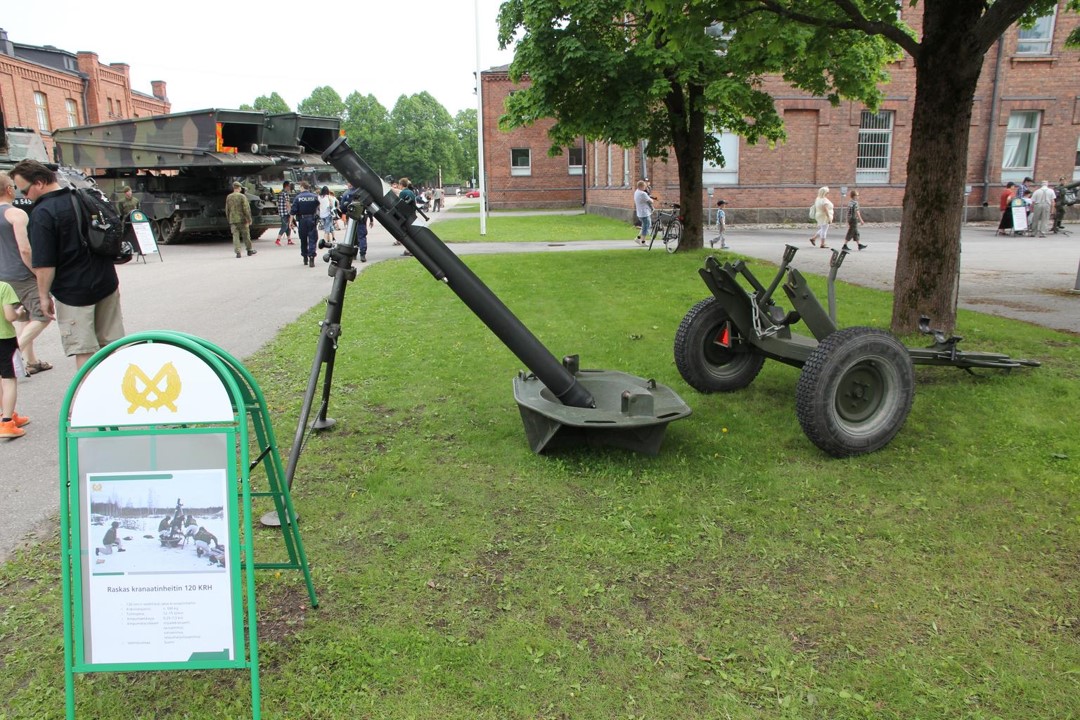

The 120 KRH 92 Finish 120mm Mortar is a conventional 120 mm (4.7 in) smoothbore mortar, with a high tensile-strength steel alloy barrel and baseplate.
Ground Specifications
Main Weapon
120mm smoothbore mortar
Range
7.3 km
System
Alternate Designation
120 KRH 92
Type
Mortar
Caliber
120 mm
Manufacturer
Patria Vammas Oy
Elevation
45−80°
Traverse
4.2° right and left (on bipod at 60°)
360° (by moving bipod)
Rate of Fire
15 rounds per minute
Maximum Firing Range
7,300 m
Emplacment Time
less than a minute
Displacement Time
INA
Dimensions
Length
1.74 m
Barrel Length
1.6 m
Weight, Combat
159 kg
Weight, Transport
342 kg
Image Sources
Details
Country of Origin
Finland
Category
Non-Self Propelled Mortar Systems
Land > Infantry Weapons > Non-Self Propelled Mortar Systems
Filter Label
1
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.74 m
Width
0.12 m
Height
—
Weight
159 kg
Operators (2)
Ukraine
Finland
