KLR 250 Japanese 249cc Motorcycle

KLR 250

Motorcycle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
KLR 250 Japanese 249cc Motorcycle
Designation
KLR 250
Alternate Designation
KLR 250
Equipment Type
Motorcycle
Manufacturer
Kawasaki
Date of Introduction
1984
Description

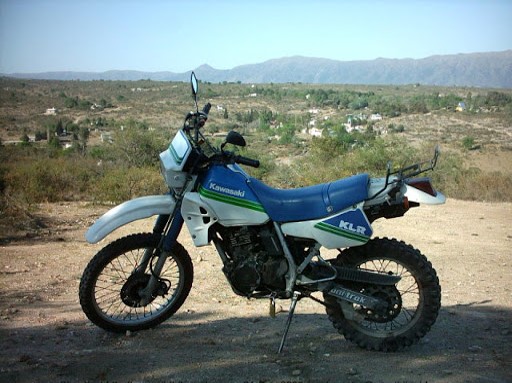

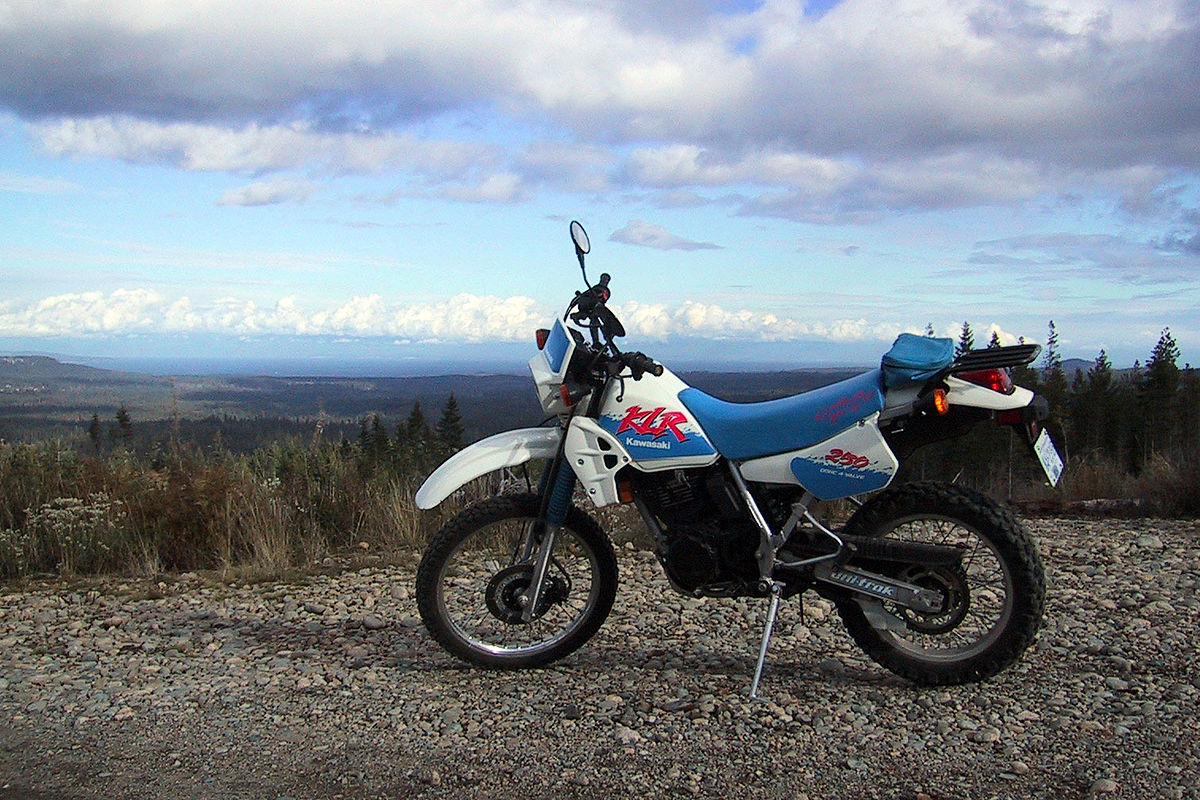

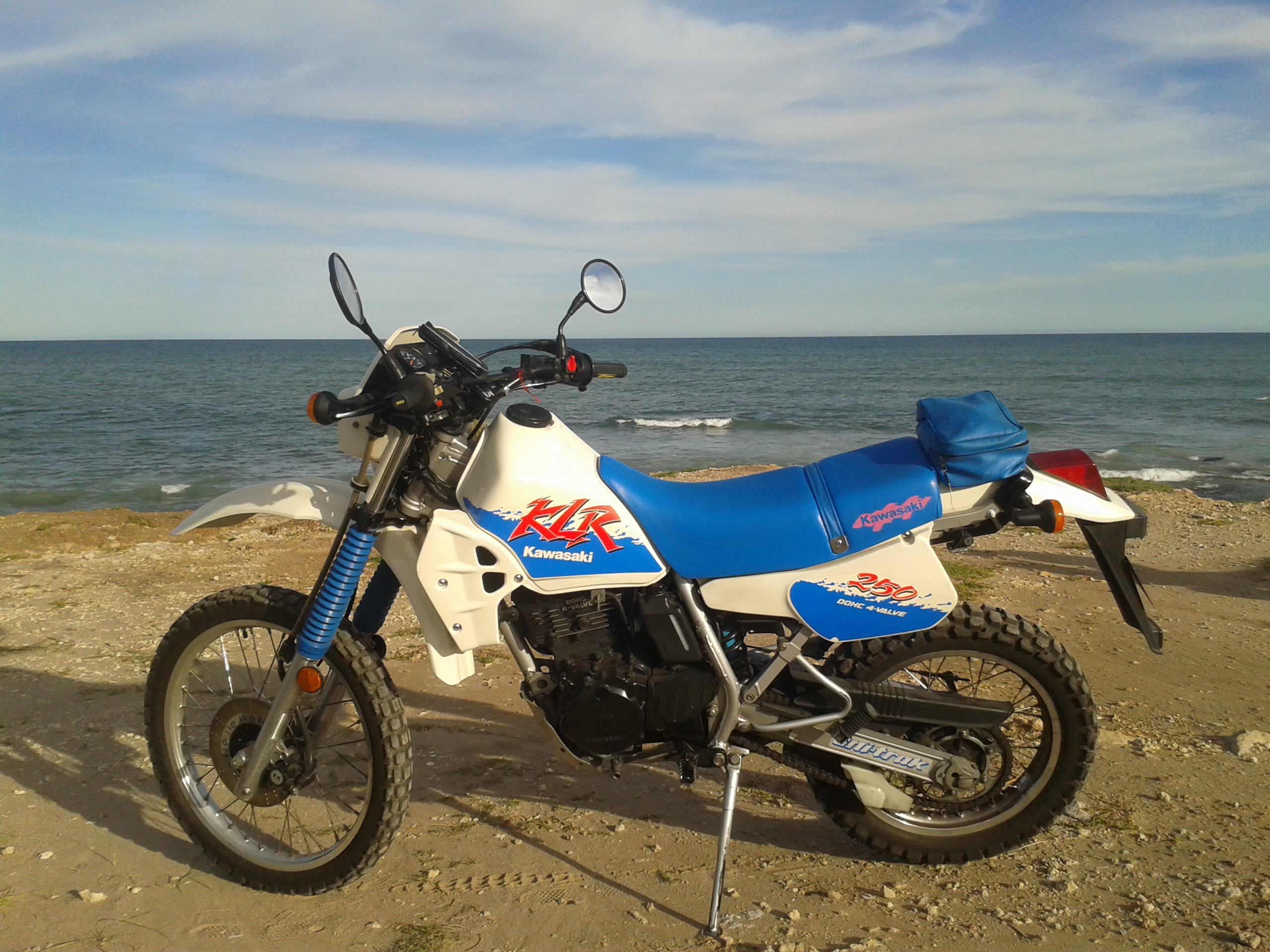

The Kawasaki KLR250/KL250D was a motorcycle produced from 1984 to 2005 as the successor to the 1978 to 1983 KL250C, with only minor changes during the model run. This lightweight dual sport motorcycle was used for several years by the US military for a variety of tasks, including messenger duty and reconnaissance. It was produced by Kawasaki Heavy Industries in Japan and exported to many parts of the world, including the U.S. and Canada, Europe and Australia. The Chilean national police ("Carabineros de Chile") made extensive use of the KLR250. It is similar in appearance to the larger KLR650. The KLR250 shares many engine parts with an ATV sold by Kawasaki, the KSF250 "Mojave". In the USA the KLR250 was discontinued at the end of the 2005 model run and was replaced by the KLX250S in 2006. In other markets the KLX250 was introduced in 2001 and has been sold to the current day.

Ground Specifications
Crew 1
Mobility Type Wheeled
Engine Four-stroke, DOHC, four-valve, single cylinder
Active Protection None
System
Alternative Designation KLR 250
Type 249cc Motorcycle
Manufacturer Kawasaki
In Service INA
Crew 1 ea
Dimensions
Length 2199.64 mm
Width 820.42 mm
Height 47.4 in mm
Wheelbase 1203.96 mm
Seat Height 889 mm
Weight 137.892 kg
Automotive
Engine Name INA
Engine Type Four-stroke, DOHC, four-valve, single cylinder
Displacement 249 cc
Bore and Stroke 74.0 x 58.0 mm
Carburetor Keihin CVK34
Power Output 28 horsepower 1985–1989 23 horsepower 1990–2005 @ 9,000 rpm, (U.S. model due to change in cam profile)
Maximum Torque 23 N-m (2.3 kg-m, 16.5 ft-lb) @ 8,000 rpm (U.S. model
Starting Method Kick
Transmission 6 Speed
Final Drive Chain EK520 L-O 104 links
Front Brakes Hydraulic disc
Rear Brakes Drum
Front Suspension Air-adjustable hydraulic telescopic fork
Rear Suspension UNI-TRAK single-shock system
Fuel Capacity 11.0 litres
Maximum Speed INA
Protection
Armor No
Applique Armor No
Active Protection System No
NBC Protection No
Smoke Equipment No
Details
Country of Origin Japan
Category Motorcycles
Land > Infantry Vehicles > Motorcycles
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
2.2 m
Width
0.82 m
Height
0.05 m
Weight
137.89 kg
Operators (4)
United States
Japan
Canada
Chile
