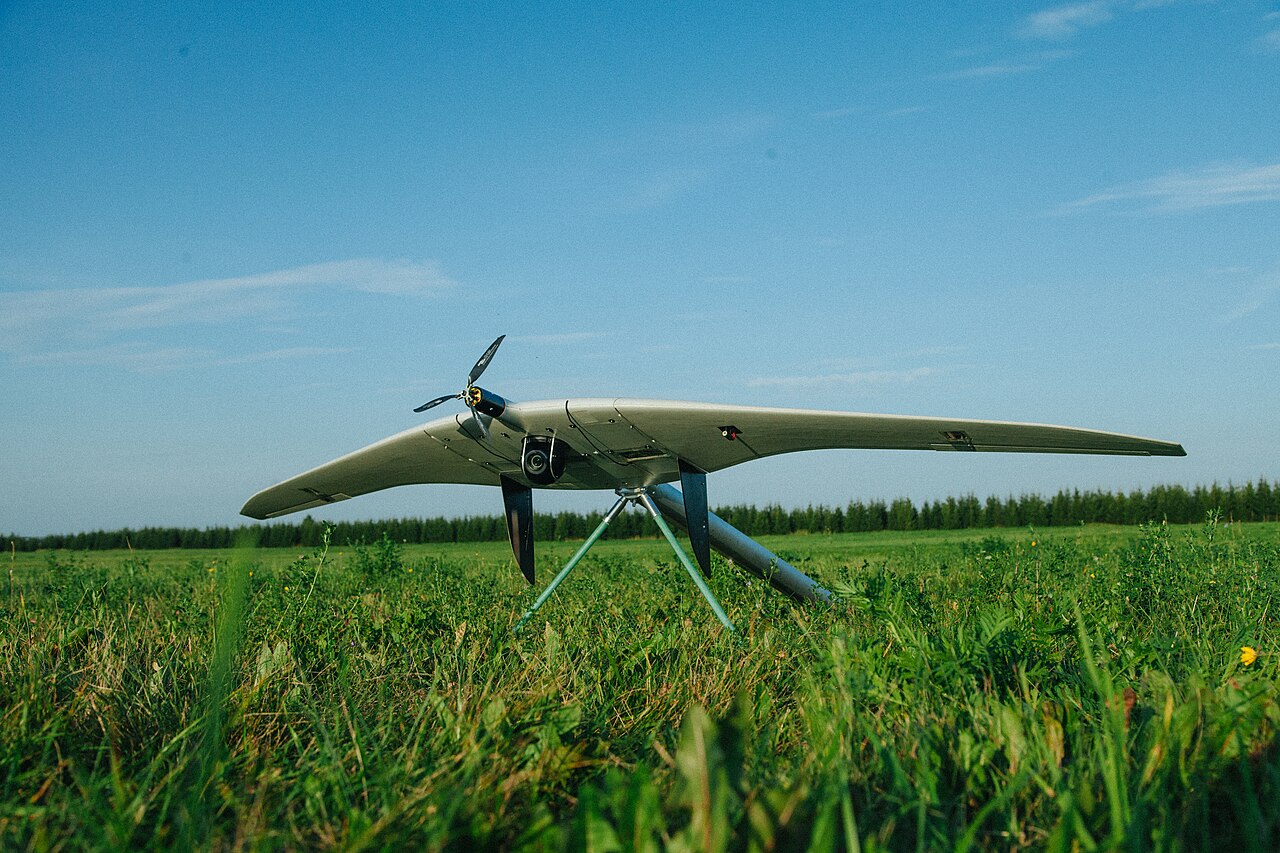

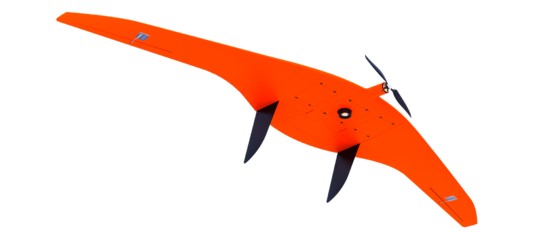

Supercam S350 Russian Unmanned Aerial Vehicle (UAV)

Supercam S350

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Supercam S350 Russian Unmanned Aerial Vehicle (UAV)
Designation
Supercam S350
Alternate Designation
Supercam S350
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Supercam Unmanned Systems Group
Date of Introduction
2020
Description

The Supercam S350 Russian Unmanned Aerial Vehicle (UAV) is one of the flagship unmanned aircraft systems designed for aerial photography and video monitoring. The flight duration of up to 4.5 hours with a data transmission range of up to 100 km provides the possibility of using the UAV in surveillance and reconnaissance missions, for protecting state borders, monitoring fuel and energy facilities, and crisis management, as well as for other civil applications. A wide range of payloads can be installed onboard the UAV including a photo camera, video, and thermal imaging equipment, radiation detection equipment, a gas analyzer, and a laser scanning system. The key features of the unmanned system include the UAV quick assembly, modular composite components, interchangeable and combined payloads with the unified gyro-stabilized gimbals, and the wing panels detachment system to prevent possible damage during landing. The company adheres to the client-oriented policy that retains multiple low-cost options in the UAV configuration to meet the exceptional needs of our customers.

Air & Air Defense Specifications
Engine Battery
Max Speed 120.0 km/h
Endurance 4.50 hrs
Wingspan 3.20 m
System
Alternate Designation Supercam S350
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Supercam Unmanned Systems Group
Autonomy automatic or semi-automatic
Crew Unmanned
Radio Link Range 70-100 km
Video Transmission Range 50-100 km
Payload Options - 20/24/42/60 MP photo camera with the ability to be mounted on the azimuth stabilized platform - Gyro-stabilized thermal imaging camera and/or PAL or HD video camera with 10/33х optical zoom, that can be combined together, and optionally enhanced with a laser target marker - Multispectral camera - Airborne radiation sensor - Laser gas analyzer - Laser scanner
Deployment Time 15 min
Launching System elastic catapult / pneumatic catapult
Recovery System parachute with cords release system
Operational Temperature -40°С to +45°С
Accessories - Automatic target tracking module - Dual (triple) system, dual-frequency geodetic receiver - Video link for digital broadband transmission within a range of up to 50-100 km - Radio link of telemetry and control with the ability of FHSS operation
Dimensions
Length INA
Wingspan 3.2 m
Height INA
Maximum Takeoff Weight 11.5 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Maximum Speed 120 km/h
Cruising Speed INA
Operational Height 150 - 5000 m
Maximum Distance 240 km
Maximum Windspeed 15 m/s
Endurance 4.5 hours
Details
Country of Origin Russia
Category UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
11.5 kg
Operators (1)
Russia
