JY-11 Chinese 3D Air-Surveillance Radar

JY-11

3D Air Surveillance and Acquisition Radar
Spotted an error? Sign in to suggest an edit.
JY-11 Chinese 3D Air-Surveillance Radar
Other

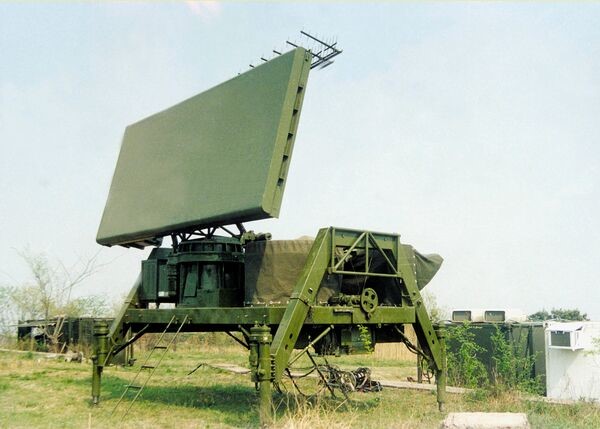

JY11 Chinese 3D Radar (A)TRADOC ODIN WEG

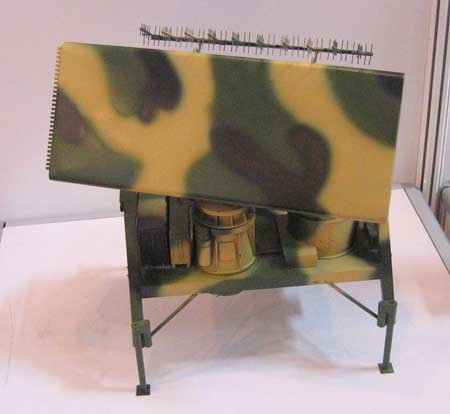

Thumbnail
Thumbnail
Basic Information
Name
JY-11 Chinese 3D Air-Surveillance Radar
Designation
JY-11
Alternate Designation
JY-11
Equipment Type
3D Air Surveillance and Acquisition Radar
Manufacturer
—
Date of Introduction
2007
Description

The JY-11 Chinese 3D Air-Surveillance Radar is an S-band (NATO E-/F-band) (2–4 GHz) 3D volume air-surveillance radar family that can operate as a standalone sensor or as part of an integrated air-defence network.

Ground Specifications
Range 180.0 km
Variants
JY-11B Chinese 3D Mobile Air-Surveillance Radar The JY-11B Chinese 3D Mobile Air-Surveillance Radar is an S-band 3D mobile air-surveillance radar specifically designed for intercepting low-altitude targets. The radar design features a reconfigurable transmitting beam shape, a digital beamforming unit, and a beam receiver. The contractor claims that the radar features advanced electronic counter-countermeasures (ECCM) and can detect low-flying targets in the presence of both natural and man-made clutter. The JY-11B radar is a fully mobile unit, and unlike the JY-11, it cannot be fully dismounted from the carrier vehicle. The system can be raised hydraulically from the vehicle and has automatic target detection, tracking, and target designation to the associated weapon system.
System
Alternative Designation JY-11
Type 3D Air-Surveillance Radar
Crew INA
Antenna Type phased-array
Frequency S-band; 2–4 GHz
Coverage Range 97 n miles (180 km; 112 miles)
Traverse 360°
Elevation 0° to 30°
Detection Altitude 12,000 m (39,370 ft 1 in)
Scan Rate, Rotational 6 rpm
Sidelobes -30 dB
Track Capacity 128 (per 10 seconds)
Accuracy Range 100 m (328 ft 1 in)
Accuracy Height INA
Clutter Rejection >45 dB (ground clutter) >30 dB (chaff)
Resolution Azimuth 2°
Resolution Range 200 m (656 ft 2 in); 1,000 m (3,280 ft 10 in) (altitude, 100 km range)
Tranmitter solid state
Emplacment Time 30 min
Displacement Time 30 min
Mean Time to Respond 30 min
Dimensions
Length INA
Width INA
Height INA
Weight, Combat INA
Image Sources
Notes https://www.defencetalk.com/military/photos/jy-11-medium-to-low-altitude-3d-surveillance-radar.3008/; https://www.radartutorial.eu/19.kartei/02.surv/karte031.en.html
Details
Country of Origin China
Category Radars
Land > Radars
Filter Label
J
Classification
Domain
Ground
Equipment Status
Active
Operators (2)
China
Sri Lanka
