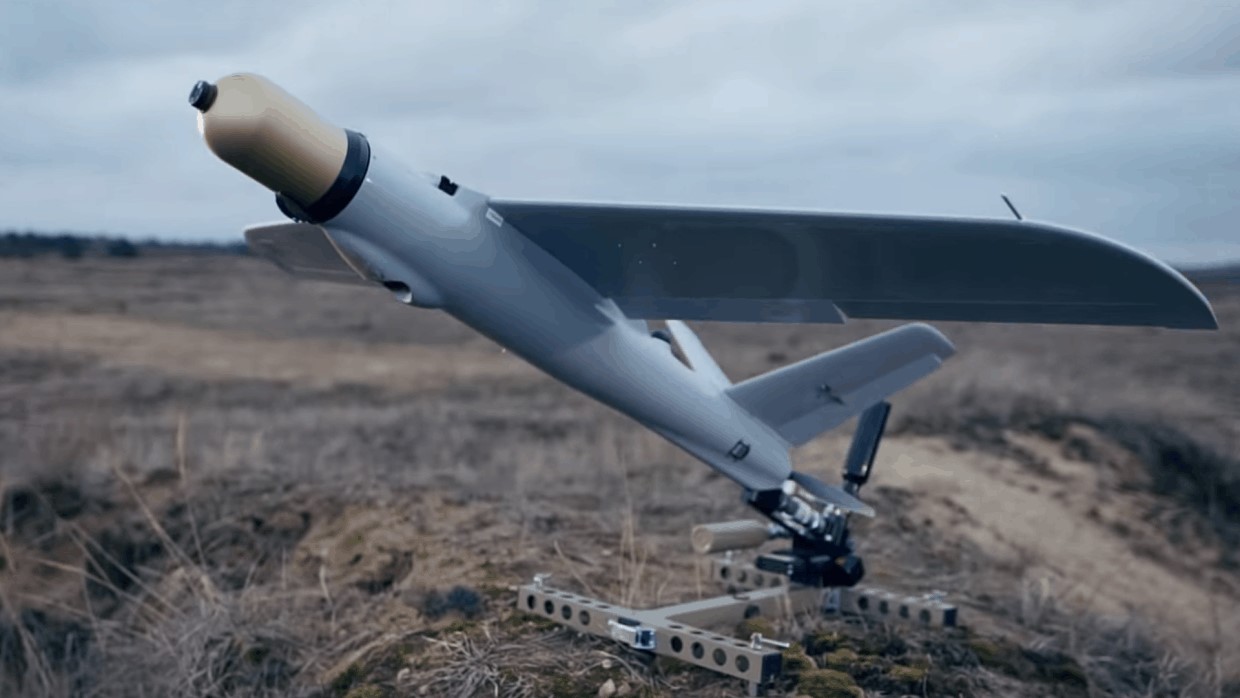

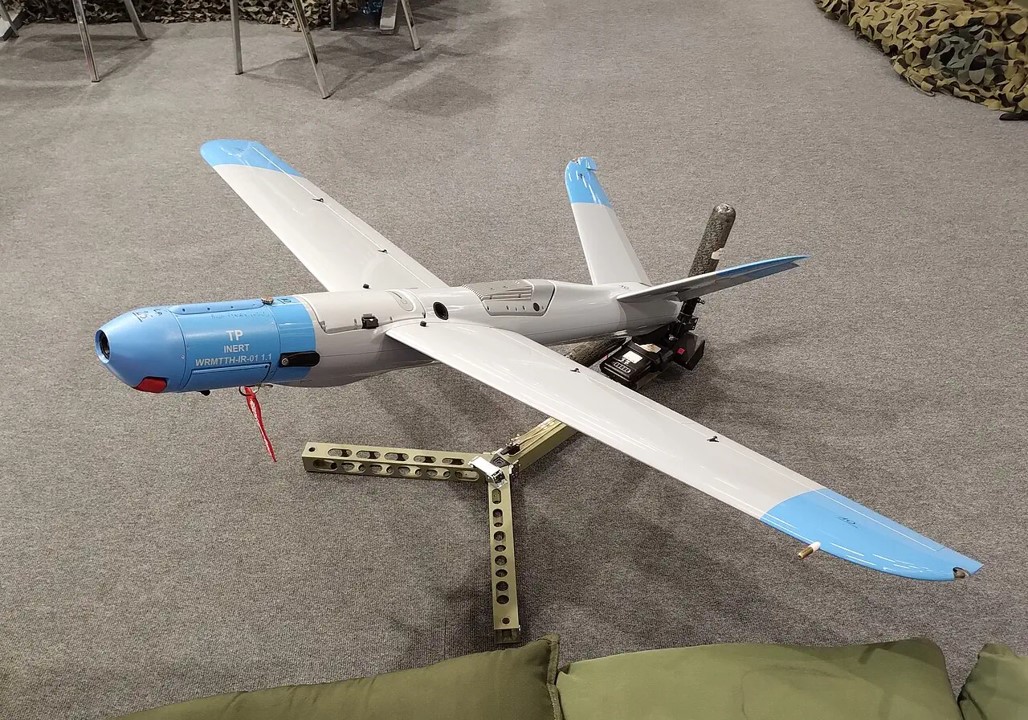

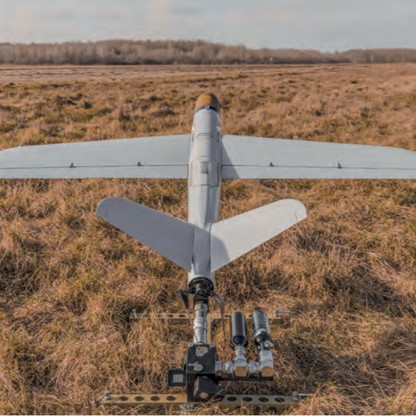

WARMATE Polish Unmanned Aerial Vehicle (UAV)

WARMATE

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
WARMATE Polish Unmanned Aerial Vehicle (UAV)
Designation
WARMATE
Alternate Designation
WARMATE
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
WB Group
Date of Introduction
2023
Description

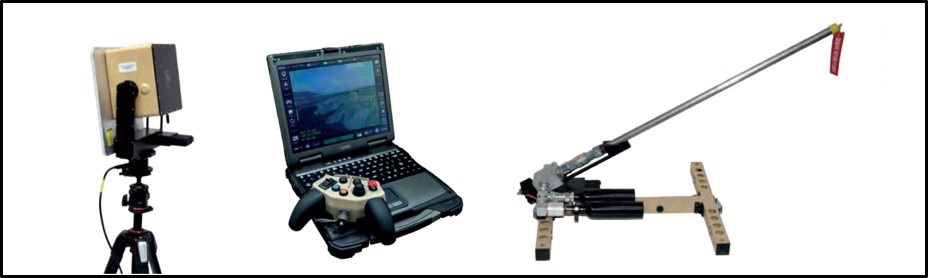

The WARMATE Polish Unmanned Aerial Vehicle (UAV) can be used as a self-contained system that can be transported or carried by land or special forces units. The system design permits its installation on vehicles (cars, APCs) and integration of the Ground Control Station and the Ground Data Terminal with onboard vehicle systems. The WARMATE constitutes a good alternative to anti-tank guided missiles, with its capability to operate in a significantly larger radius, allowing for comfortable detection and observation of the potential target over a relatively large time span. Optionally, the system can be equipped with a laser-seeking warhead. The WARMATE in combat configuration is an expendable solution. In the observation configuration, the UAV can be recovered and reused for future missions. The WARMATE is a fully autonomous solution that allows for the real-time operation of airborne warfare, utilizing the video feed received from its surveillance subsystem. The UAV is equipped with control modules that ensure complete automation of the majority of flight phases and support the operator during targeting. The operator has complete control and bears full responsibility for switching to the ARMED to execute a combat task.

Air & Air Defense Specifications
Engine Electric
Max Speed 150.0 km/h
Range 30.0 km
Endurance 60.00 hrs
Service Ceiling 3000 m
Wingspan 1.60 m
System
Alternate Designation WARMATE
Type Unmanned Aerial Vehicle (UAV)
Manufacturer WB Group
Payload Capacity INA
Operational Frequency Military C-band – both uplink and downlink
AUTO mode The AV will follow base on pre-programmed waypoints route and flight program.
HOLD mode The AV orbits a point over the ground.
FLY TO mode The AV will fly to on-map selected point with stable altitude.
CRUISE mode Cruise mode will set the AV to hold steady at a particular altitude and flight direction. Operator’s control of the AV is semi-manual supported by autopilot in a straight line in the direction that the camera is facing.
ATTACK mode This mode initiates the strike. The automated videotracker allows for a precise target hit without the operator’s control even after the loss of communication.
Dimensions
Length 1.1 m
Height INA
Wingspan 1.6 m
Maximum Takeoff Weight 5.7 kg
Automotive
Engine Name INA
Engine Type Electric motor
Engine Power INA
Maximum Speed 150 km/h
Operational Speed 80 km/h
Maximum Range 30 km (Operational RLOS Range)
Service Ceiling 3,000 m
Operational Altitude 150 - 300 m
Endurance 60 min
Armament
Warhead Type High Explosive / Termobaric
Details
Country of Origin Poland
Category UAVs
Air > UAVs
Filter Label
W
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.1 m
Width
1.6 m
Height
Weight
5.7 kg
Operators (3)
Ukraine
Poland
India
