Trojan British Armored Mine Clearing Vehicle

Trojan

Combat Vehicle
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Trojan British Armored Mine Clearing Vehicle
Designation
Trojan
Alternate Designation
Trojan
Equipment Type
Combat Vehicle
Manufacturer
BAE Systems
Date of Introduction
2007
Description

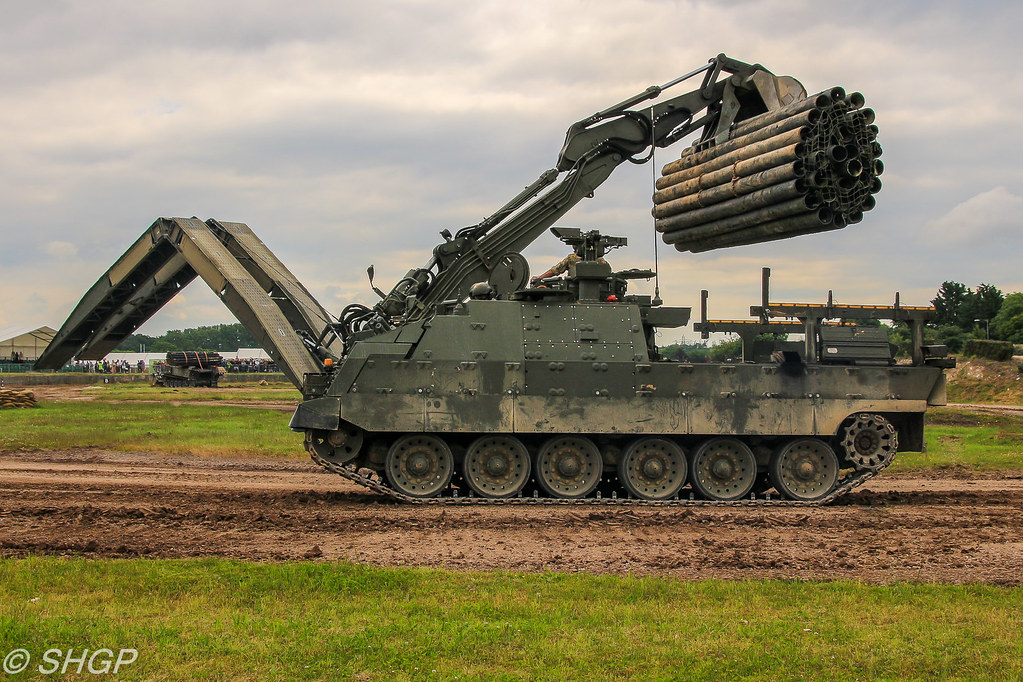

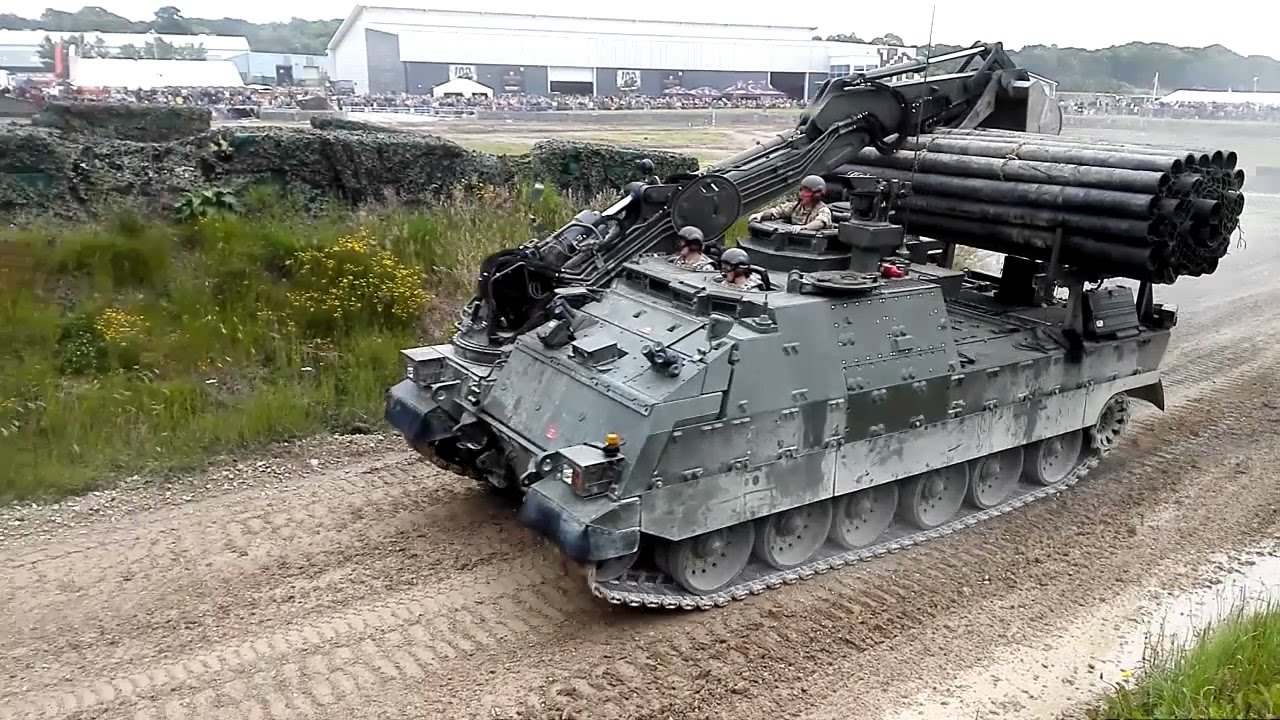

The Trojan British Armored Mine Clearing Vehicle is a combat engineering vehicle of the British Army. It is used to breach minefields and for many other tasks. It is currently in use with the Royal Engineers. The Trojan Armoured Vehicle Royal Engineers is based on a Challenger 2 tank chassis but lacks the main armament. In place of the turret, it has a large hydraulic excavator arm that can excavate areas, move obstacles, and deposit the fascine carried at its rear. The Trojan is usually fitted with a plow at the front, which enables it to clear mines, either detonating them on contact or pushing them aside to clear a safe channel for following vehicles. For self-defense only, it carries a 7.62mm machine gun. For rapid mine-clearing purposes, the Trojan can also tow a trailer carrying the Python, a rocket-propelled hose similar to the Giant Viper. This allows for a much quicker way of clearing a path for ground forces. The hose, packed with explosives, is launched across a minefield and detonates after it hits the ground, clearing a 7-meter wide path for 230 meters. The vehicles were built at BAE Systems Land Systems plant in Newcastle upon Tyne. The contract was awarded in 2001 to Vickers Defence Systems, which was bought by BAE Systems in 2004. The project was known as the Future Engineer Tank. 33 have been built. It was first used on exercise in May 2007 with the 1st Battalion (Mechanised) of the Duke of Lancaster's Regiment. A number of Trojans are permanently based in Canada at British Army Training Unit Suffield in order to allow the Royal Engineers to support Armoured Battle Groups on major exercises. Trojans were first deployed operationally by the British Army to Afghanistan in 2009 engaging in their first advance under contact in 2010. During Operation Moshtarak 28 Engineer Regiment operated the Trojan attempting to use its traditional mine clearance equipment in the Counter-IED role in support of a major British Army advance. Its companion vehicle, developed at the same time, is another variant of the Challenger 2, the Titan armored bridge layer, of which 33 have also been built.

Ground Specifications
Crew 3
Mobility Type Tracked
Main Weapon 7.62mm machine gun
Engine Diesel (1200 hp)
Max Speed 59.0 km/h
Range 450.0 km
System
Alternative Designation Trojan
Type Combat Engineering Vehicle
Manufacturer BAE Systems Land Systems
Chassis The Trojan is based on a modified Challenger 2 main battle tank chassis. The turret has been removed and replaced by a new superstructure with special equipment.
Crew 3 (commander, operator, driver)

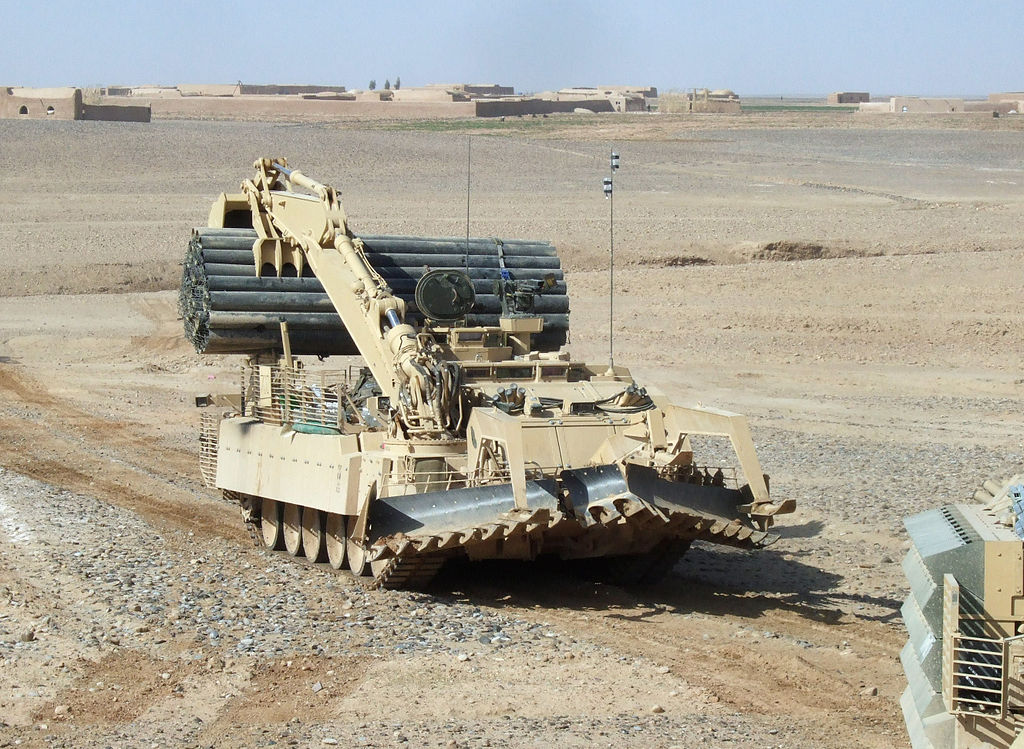

Mine Plough Yes, The Trojan is fitted with a full-length mine plough, that pushes mines out of the way to clear a safe path for following vehicles
Dozer Blade Yes
Large Excavator Arm Yes, The excavator arm is used for earth works, grabbing and moving obstacles, placing fascines. The standard bucket has a 1 m³ capacity. Bucket can be replaced with other attachments. The arm lift capacity is 6.5 tonnes.
Minefield Breaching System This vehicle can carry fascines and drop into ditches. Also it can tow a trailer carrying Python rocket-propelled minefield breaching system.
Dimensions
Length 8.3 m
Width 3.5 m, 4.2 m with Applique Armor
Height 2.5 m
Weight, Combat 62.5 tons
Automotive
Engine Name Perkins CV12-8A
Engine Type Diesel
Engine Power 1,200 hp
Power to Weight Ration 19.2 hp/t
Transmission David Brown TN54 epicyclic transmission (6 fwd, 2 rev.)
Suspension Hydropneumatic
Range 450 km
Speed 59 km/h (37 mph) 40 km/h (25 mph) off road
Gradient 60 %
Side Slope 30 %
Vertical Step 0.9 m
Trench 2.3 m
Fording 1 m
Main Weapon System
Note The Main Weapon System is controlled via remote control.
System
Name L94A1 Chain Gun
Type Chain Gun
Caliber 7.62 mm
Length 1.25 m
Barrel Length 703 mm
Weight 17.86 kg
Action Electrically driven
Rate of Fire 520 to 550 rounds per minute
Muzzle Velocity 862 m/s
Feed System disintegrating link belt
Ammunition
Type Rifle
Caliber 7.62 mm
Cartridge 7.62×51mm
Basic Load INA
Protection
Hull Armor The Trojan combat engineering vehicle has the same level of armor protection as the Challenger 2 MBT. It provides a very high level of protection against direct fire weapons.
Applique Armor If required additional armor can be added. Vehicle also has enhanced protection against landmines.
Mine Clearing This vehicle can carry fascines and drop into ditches. Also it can tow a trailer carrying Python rocket-propelled minefield breaching system.
NBC Protection There is an NBC protection system for the crew, so this engineering vehicle can operate in hazardous environments.
Smoke Equipment INA
Details
Country of Origin United Kingdom
Category Mobility
Land > Combat Support Vehicles > Mobility
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.3 m
Width
3.5 m
Height
2.5 m
Weight
62500 kg
Operators (1)
United Kingdom
