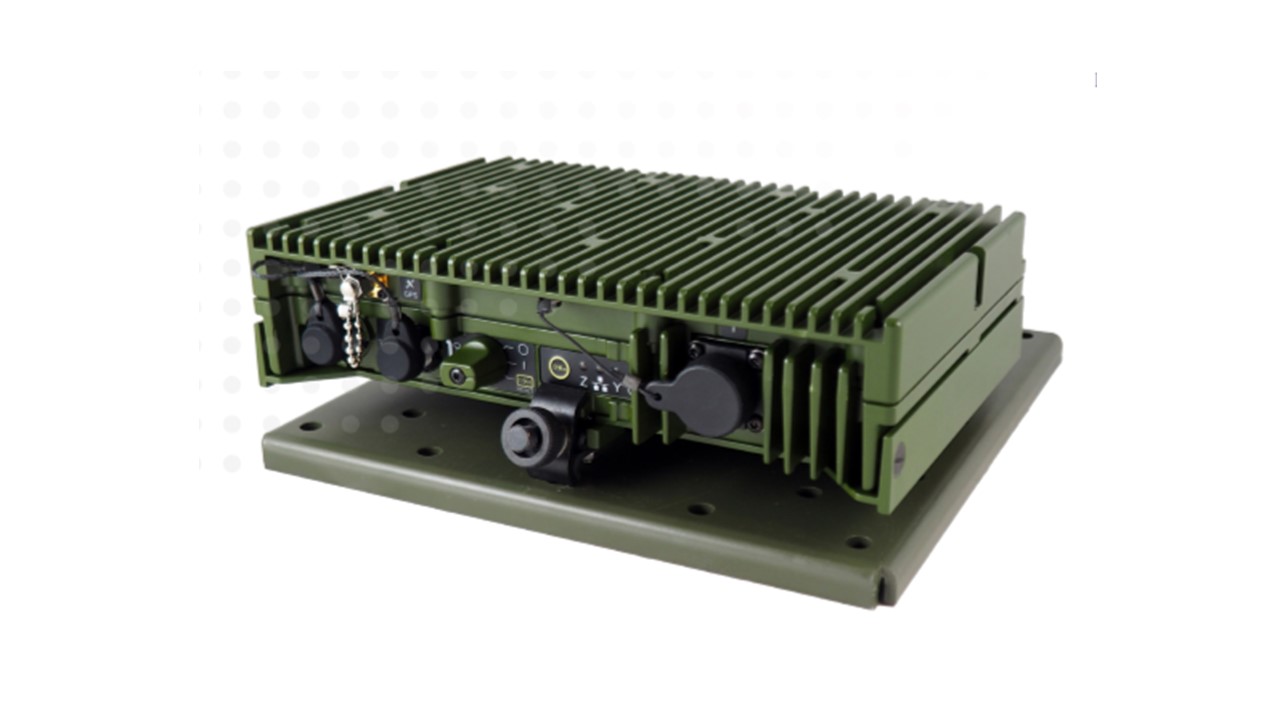

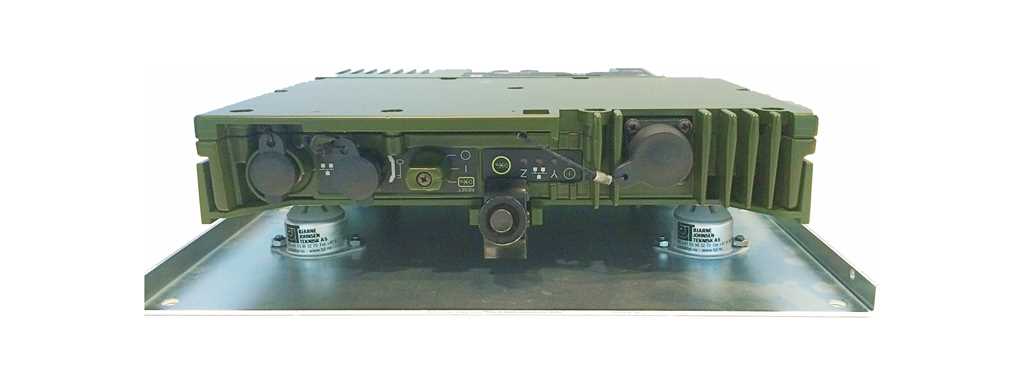

UM600 Norwegian Vehicle-Mounted UHF IP Broadband Radio

UM600

UHF IP Broadband Radio
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
UM600 Norwegian Vehicle-Mounted UHF IP Broadband Radio
Designation
UM600
Alternate Designation
Equipment Type
UHF IP Broadband Radio
Manufacturer
Kongsberg
Date of Introduction
2012
Description

The UM600 high-capacity UHF radio supports tactical operations in mobile platforms. High data throughput is ensured with a transmission range suited for vehicles at the tactical edge of an operation. The UM600 features full router functionality, including multi-hop capabilities, ensuring that data reaches its destination correctly and promptly. UM600 can support up to 2.5 Mbit/s. For harsh operational environments, the radio is optimized at a data rate of 900 kbit/s. The UM600 can be configured to operate in a mixed TDMA mode, supporting multiple voice channels as well as providing guaranteed access for time-critical data. This model is the optimal choice for handling all communication needs within, for example, an 8x8 Company.

Ground Specifications
Mobility Type Wheeled (8x8)
System
Type UHF IP Broadband Radio
Mount Vehicle
Height 40 mm
Width 245 mm
Depth 138 mm
Weight 1.55 kg
Input Voltage 9-32 VDC through PMU
Power Consumption 35 watts
Frequency Range 225-400 MHz
RF Bandwidth up to 5 MHz
Output power up to 5 W
Military ODU connectors Yes
Operating temperature -35oC to +55oC
Environment MIL-STD 810
EMC MIL-STD 461
Dual audio channel Yes
Ad-Hoc Ad-hoc, fully automatic multi-hop capabilities (MANET)
Encryption mbedded AES256 encryption, no need for external encryption
Software Through Software Defined Radio (SDR) the waveform can be optimized to fit the application
Note Fully integrated with Kongsberg CMS management system
Details
Country of Origin Norway
Category Vehicle-Mounted UHF Radios
Land > Communication Equipment > Vehicle-Mounted UHF Radios
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
0.25 m
Height
0.04 m
Weight
1.55 kg
Operators (1)
Norway
