Bulsae 4 (M-2018) North Korean 6x6 Anti-Tank Guided Missile (ATGM) Combat Vehicle
Bulsae 4
Anti-Tank Guided Missile (ATGM) Vehicle
Other
Basic Information
Name
Bulsae 4 (M-2018) North Korean 6x6 Anti-Tank Guided Missile (ATGM) Combat Vehicle
Designation
Bulsae 4
Alternate Designation
Bulsae 4; M-2018
Equipment Type
Anti-Tank Guided Missile (ATGM) Vehicle
Manufacturer
—
Date of Introduction
2010
Description
The Bulsae 4 (M-2018) North Korean 6x6 Anti-Tank Missile System assigned to conduct combat operations against armored threats. This system is part of North Korea's ongoing efforts to modernize its military technology and improve the effectiveness of its infantry units in combat scenarios. The Bulsae-4 allows for the engagement of armored targets from a safe distance, minimizing the risk to the missile system itself. This feature makes it a formidable addition to the battlefield, enhancing the long-range strike capabilities of the forces employing it.
Ground Specifications
Crew
2
Mobility Type
Wheeled (6x6)
Main Weapon
8 x Anti-Tank Guided Missiles (ATGM)
Engine
Diesel
NBC Protection
Yes
Max Speed
90.0 km/h
Range
500.0 km
System
Alternative Designation
Bulsae 4; M-2018
Type
Anti-Tank Guided Missile (ATGM) Combat Vehicle
Manufacturer
INA
Chassis
The Bulsae-4 is based on a North Korean M-2010 wheeled armored vehicle.
Configuration
6x6
Crew
2-3 ea
Passenger Capacity
INA
Dimensions
Length
7.65 m
Width
2.9 m
Height
INA
Weight, Combat
14,200 kg
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
INA
Maximum Range
500 km
Maximum Speed
90 km/h
Note
The Bulsae-4 (M-2018) North Korean 6x6 Anti-Tank Guided Missile (ATGM) Combat Vehicle is a derivative of North Korea’s 6x6 APC, believed to be highly inspired by the Soviet BTR-80s, with some design elements taken from older BTR-60PBs. The M-2010, revealed in 2010, is essentially a shorter BTR-80 with the second set of wheels removed.
Main Weapon System
Launcher

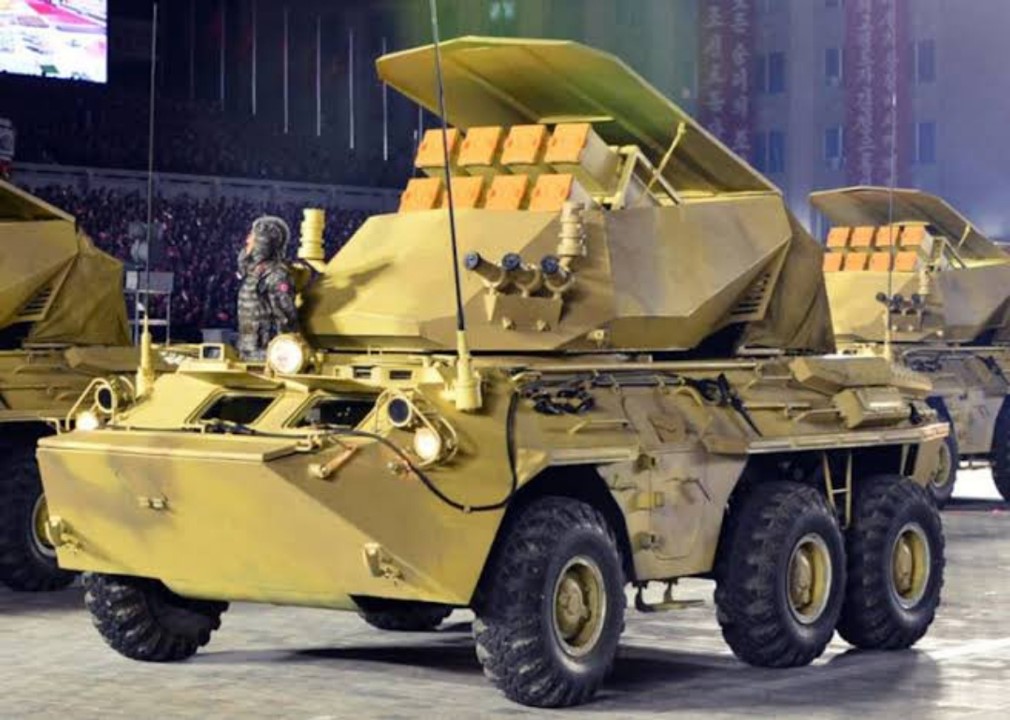

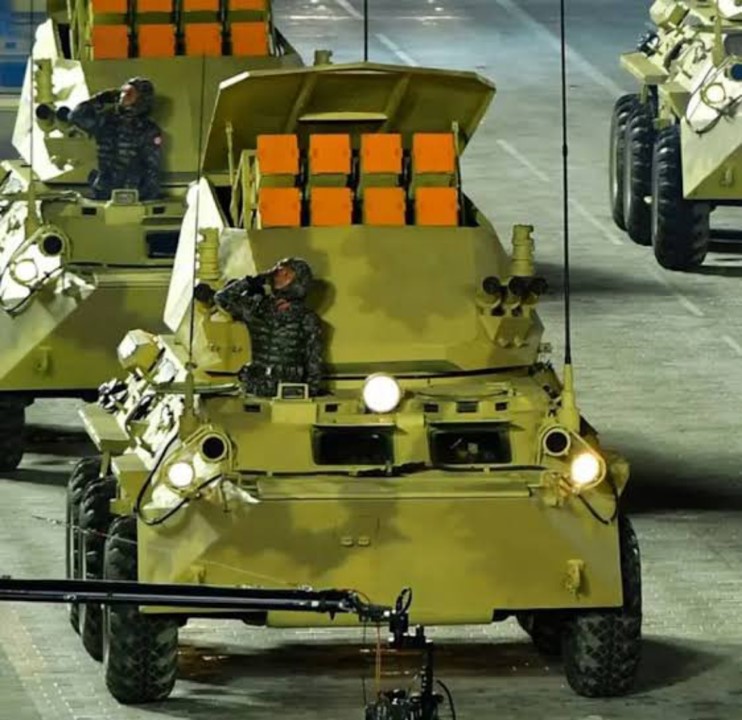

The Bulsae-4 (M-2018) North Korean 6x6 Anti-Tank Guided Missile (ATGM) Combat Vehicle features a rotary missile launcher mounted on the roof of a North Korean M-2010 wheeled armored vehicle with a 6x6 wheel configuration. This launcher can accommodate up to 8 x missile containers.
Fire Control System
Fire control system including electro-optical seeker and command guidance via an optical fiber cable. This setup allows the operator to view the terrain and targets in real-time and make necessary adjustments to ensure precision targeting. The system likely includes basic optics for targeting and potentially more sophisticated range-finding equipment to enhance accuracy.
Missiles
Name
8 x Anti-Tank Guided Missiles (ATGM)
Type
Anti-Tank Guided Missile (ATGM)
Maximum Firing Range
15-25 km
Note #1
The missiles are equipped with large stabilizers designed for top-attack profiles, allowing them to strike armored vehicles at their most vulnerable points.
Note #2

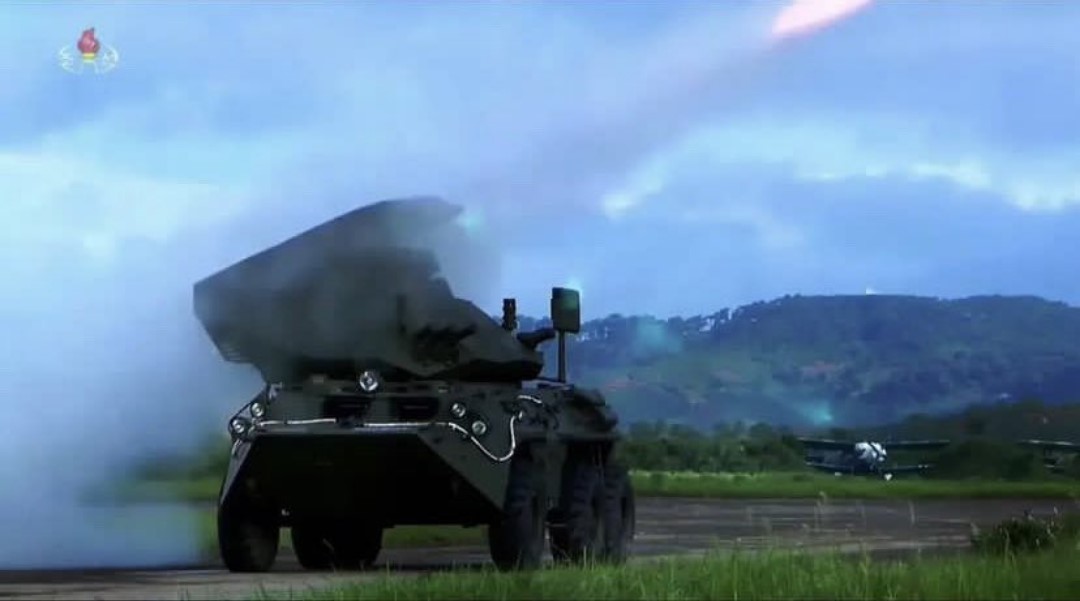

In non-line-of-sight (NLOS) scenarios, the missile is typically launched along an initial flight path under inertial guidance and locks onto the target during flight (LOAL, or “lock-on-after-launch”).
Protection
Hull Armor
The Bulsae-4 (M-2018) North Korean 6x6 Anti-Tank Guided Missile (ATGM) Combat Vehicle is likely designed to provide basic protection against small arms fire and shrapnel.
Applique Armor
INA
NBC Protection
Yes
Smoke Equipment
The vehicle features Laser Warning Receivers (LWRs) and smoke grenade launchers on either side of the turret.
Image Sources
Note
https://www.nknews.org/pro/russia-ups-ante-by-deploying-likely-north-korean-missile-system-for-ukraine-war/; https://x.com/front_ukrainian/status/1818200352191127607; https://odessa-journal.com/public/russia-has-begun-using-the-north-korean-bulsae-4-missile-system-against-ukraine; https://old-forum.warthunder.com/index.php?/topic/446781-united-korea-tech-tree-discussion-suggestion-passed-to-developers/page/4/
Details
Country of Origin
North Korea
Category
Wheeled Anti-Tank Vehicles
Land > Anti-Tank Vehicles > Wheeled Anti-Tank Vehicles
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.65 m
Width
2.9 m
Height
—
Weight
14200 kg
Operators (2)
Russia
North Korea
