Haijian 66 Class Chinese Marine Surveillance (CMS) Vessel.
Haijian 66
China Marine Surveillance (CMS) Vessel
Other
Basic Information
Name
Haijian 66 Class Chinese Marine Surveillance (CMS) Vessel.
Designation
Haijian 66
Alternate Designation
Haijian 66
Equipment Type
China Marine Surveillance (CMS) Vessel
Manufacturer
Changzhou Shipyard, Huangpu Shipbuilding
Date of Introduction
2011
Description

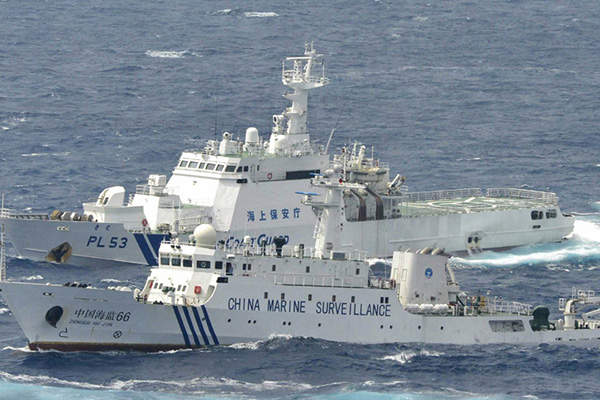

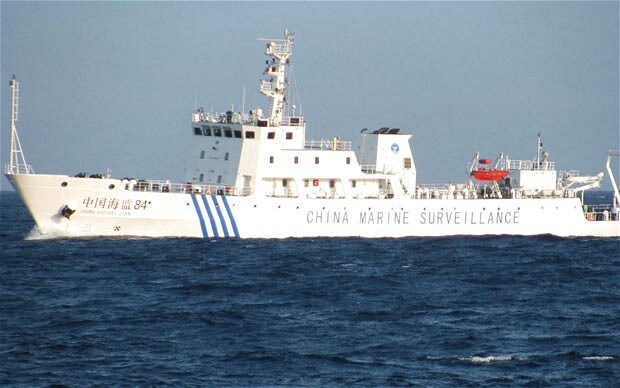

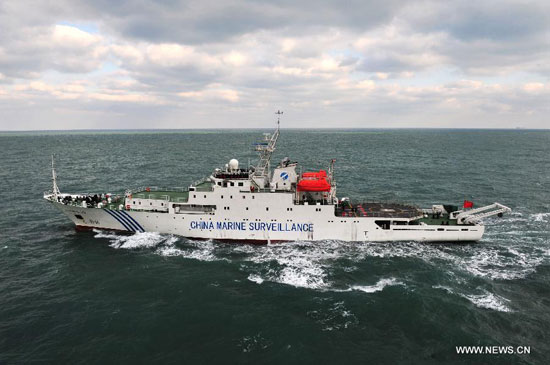

Haijian 66 (Chinese: 海监66) is a China Marine Surveillance (CMS) ship in the East China Sea Fleet . She is one of the fastest CMS ships in the second building plan. In February 2012, Haijian 66 obstructed Japanese survey vessel Syoyo (HL-01) in disputed waters near Okinawa. CMS ships of the same class, 1,000t-class Type-II, include Haijian 75.
Naval & Littoral Specifications
Beam
10.40 m
Draft
4.00 m
Variants
Haijian 75
Haijian 75 (Chinese: 海监75) is a China Marine Surveillance (CMS) ship in the 7th Marine Surveillance Flotilla of CMS's South China Sea Fleet. She is one of the fastest CMS ships in the second building plan. She was commissioned on October 26, 2010.
System
Alternative Designation
Haijian 66
Type
China Marine Surveillance (CMS) Vessel
Builder
Changzhou Shipyard, Huangpu Shipbuilding
Crew
INA
Dimensions
Length
77.39 m
Beam
10.4 m
Draft
4 m
Displacement, Standard
1,290 tons
Displacement, Full Load
INA
Propulsion System
Engine Name
INA
Engine Type
Diesel
Engine Power
4,760 shp
Maximum Range
5,000 nmi
Maximum Speed
maximum > 20 knots
Protection
Active Protection System
None
Countermeasures
No
NBC Water Washdown System
Yes
Image Sources
Notes
https://www.japantimes.co.jp/opinion/2021/03/04/editorials/china-senkakus-disputed-islands-china-japan-relations-japan-coast-guard-pla-china-coast-guard-2/; https://globalmilitaryreview.blogspot.com/2012/10/china-maritime-surveillance-cms.html; https://www.aljazeera.com/news/2021/10/5/malaysia-summons-china-ambassador-over-south-china-sea-incursion;
Details
Country of Origin
China
Category
Naval
Naval
Filter Label
H
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
77.39 m
Width
10.4 m
Height
—
Weight
1290000 kg
Operators (1)
China
