Kirpi Ambulance Turkish 4x4 Medical Support Vehicle
Kirpi Ambulance
Medical Support Vehicle
Other
Basic Information
Name
Kirpi Ambulance Turkish 4x4 Medical Support Vehicle
Designation
Kirpi Ambulance
Alternate Designation
Kirpi Ambulance
Equipment Type
Medical Support Vehicle
Manufacturer
BMC
Date of Introduction
2010
Description

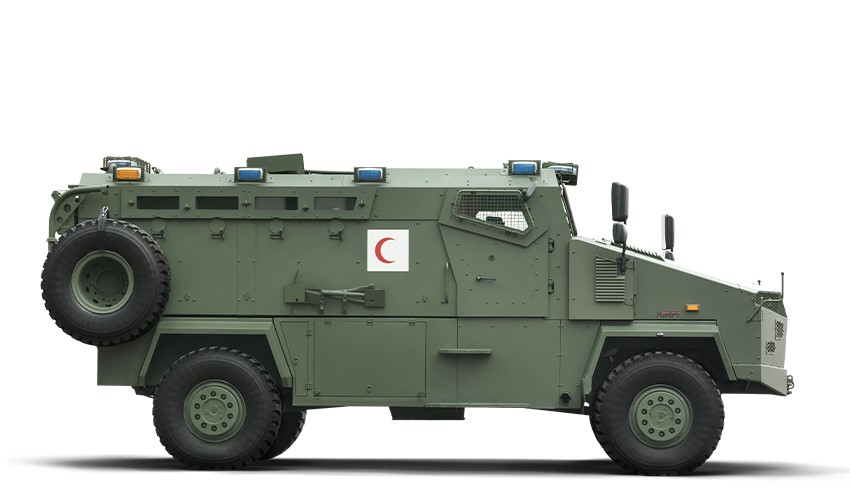

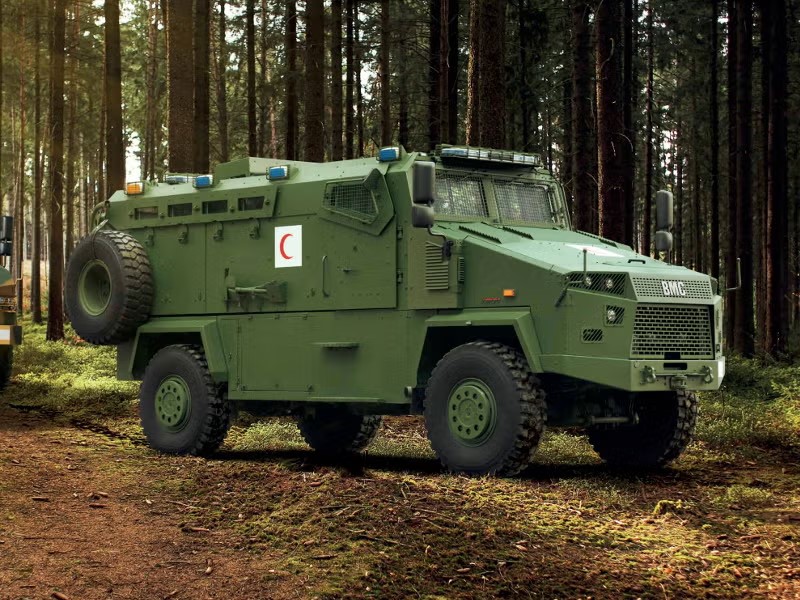

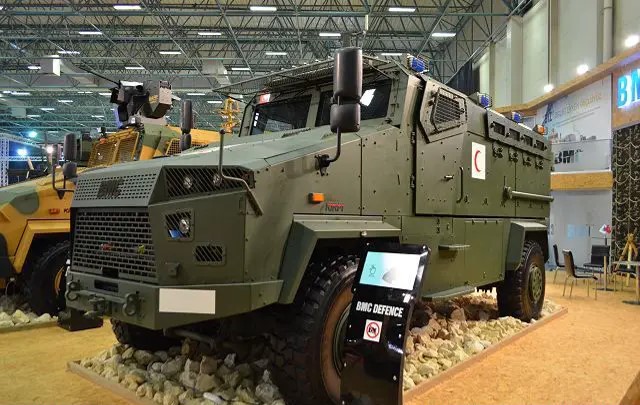

The Kirpi Ambulance, a Turkish 4x4 Medical Support Vehicle, is configured to safely and securely transport emergency medical teams in and out of dangerous areas. The vehicle is designed to offer the same level of protection as the entire Kirpi MRAP family. The internal layout accommodates two litter patients and two ambulatory patients.
Ground Specifications
Crew
3
Mobility Type
Wheeled (4x4)
Engine
Turbocharged Diesel (375 hp)
NBC Protection
Yes
Max Speed
105.0 km/h
Range
800.0 km
System
Alternative Designation
Kirpi Ambulance
Type
Medical Support Vehicle
Manufacturer
BMC
Configuration
4x4
Crew
3 ( 1 x Driver and 2 x Doctors) ea
Passengers
The internal layout offers the capacity for two litter patients, and two ambulatory patients.
Dimensions
Length
7,350 mm
Width
2,640 mm
Height
3,210 mm
Weight, Combat
19,710 kg
Automotive
Engine Name
Cummins ISL9E3 375 Euro-3
Engine Type
Turbo, Intercooler, Diesel
Engine Power
375 PS (275 kW) @ 2100 rpm
Maximum Torque
1550 Nm @ 1100-1400 rpm
Maximum Range
800 km
Maximum Speed
105 km/h
Amphibious
No
Gradient
60%
Side Slope
30%
Vertical Step
INA
Angle of Approach
35°
Angle of Departure
47°
Trench
INA
Fording
1,200 mm
Ground Clearance
400 mm
Ambulance Equipment
Stretchers
Fixed Type, Combination, Scoop, Vacuum
First Aid Equipment
Basic Medical Kit, Reanimation Bag with Oxygen Bottle
Medical Devices
Cardiac Monitor/Defibrillator, Mobile Mechanical Ventilator, Portable Blood Pressure Monitor, Wall Type Blood Pressure Monitor
Stabilizer Equipments
Spine Board, Air Splint Set, Recovery Vest, Cervical Collar Set
General Medical Supplies
Diagnostics Set, Body Bag, Fixed IV Holders, Burn Kit, Insulated Vaccine Carrier Box
Oxygen System
(Complete Oxygen & Bottles & Regulators, Stationary Vacuum System
Disposable Materials
Oxygen Masks, Oxygen Nasal Cannula, Suction Catheter, Serum Set, Public Announce System, Injectors etc.
Protection
Armor
The V-shape underbody and monocoque allow it to protect the personnel inside from land mines and improvised explosive devices (IEDs). STANAG 4569;
Ballistic Protection;
Mine Protection;
IED Protection.
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
Yes
Details
Country of Origin
Turkey
Category
Medical Vehicles
Land > Combat Support Vehicles > Medical Vehicles
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.35 m
Width
2.64 m
Height
3.21 m
Weight
19710 kg
Operators (1)
Turkey
