CLC-3 Chinese Mobile Air Defense Radar
CLC-3
Air Defense Radar
Other
Basic Information
Name
CLC-3 Chinese Mobile Air Defense Radar
Designation
CLC-3
Alternate Designation
CLC-3
Equipment Type
Air Defense Radar
Manufacturer
Nanjing Institute of Electronic Technology (NRIET)
Date of Introduction
2009
Description

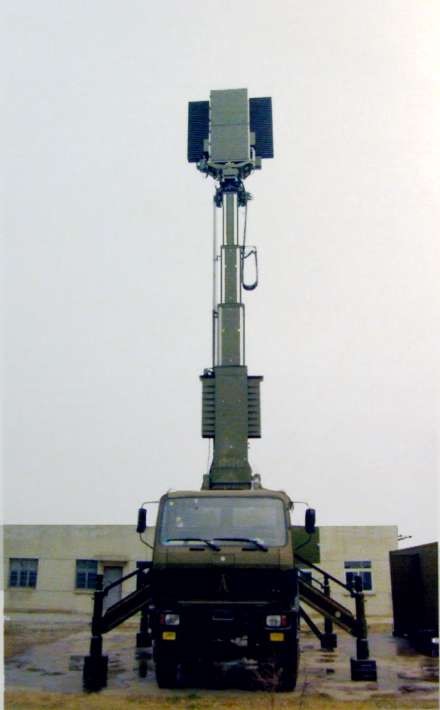

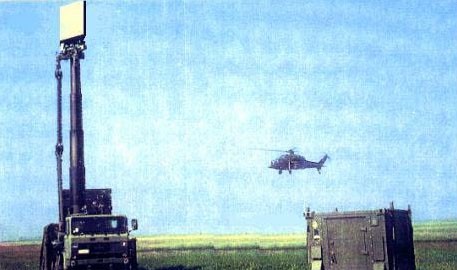

The CLC-3 Chinese Mobile Air Defense Radar is described as being a mobile pulse Doppler S-band (NATO E-/F-band) (2 GHz to 4 GHz), low-altitude air defence radar that makes use of a phased array antenna. The CLC-3 has the ability to detect slow flying/hovering helicopters in “severe” clutter, automatic target tracking and automatic generation of 3D targeting data for target designation and combat control along with the integrated weapon system. CLC-3 is also noted as being suitable for gap filling within an air defence network.
Ground Specifications
Mobility Type
Wheeled (6x6)
Engine
Diesel
Range
150.0 km
System
Alternative Designation
CLC-3
Type
Air Defense Radar
Manufacturer
Nanjing Institute of Electronic Technology (NRIET)
Crew
INA
Chassis
6×6 truck (semi-trailer mounted)
Emplacement Time
10 min
Displacement Time
5 min
Dimensions
Length
INA
Width
INA
Height
INA
Weight
INA
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
INA
Maximum Range
INA
Speed, Maximum Road
INA
Speed, Average Cross
INA
Speed Maximum Swim
Not Amphibious
Fording Depth
INA
Radar System
Frequency
S-band (NATO E-/F-band) (2–4 GHz) pulse Doppler
Coverage Range
81 n mile (150 km; 93 miles) (max instrumented);
43 n mile (80 km; 50 miles) (1 m² RCS target);
16 n mile (30 km; 19 miles) (cruise missile);
8 n mile (15 km; 9 miles) (air target at 100 m altitude)
Elevation
INA
Traverse
360°
Detection Altitude
3,500 m (11,483 ft)
Track Capacity
10 ea
Accuracy Range
50 m (164 ft 0½ in)
Accuracy Azimuth
0.3°
Resolution Azimuth
3.5°
Protection
Hull Armor
INA
Applique Armor
INA
NBC Protection
INA
Smoke Equipment
INA
Details
Country of Origin
China
Category
Radars
Land > Radars
Filter Label
C
Classification
Domain
Ground
Equipment Status
Active
Operators (1)
China
