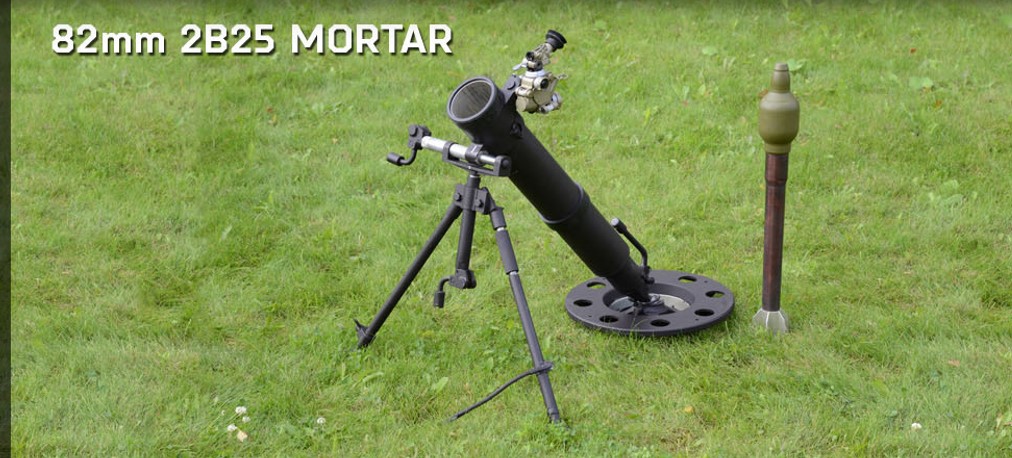

2B25 Gaul Russian 82mm Light Mortar

2B25 Gaul

Light Mortar
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
2B25 Gaul Russian 82mm Light Mortar
Designation
2B25 Gaul
Alternate Designation
2B25 Gaul
Equipment Type
Light Mortar
Manufacturer
Central Research Institute Burevestnik
Date of Introduction
2011
Description

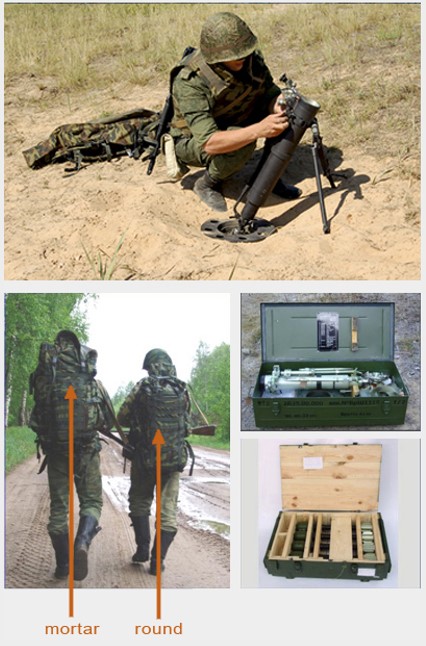

The 2B25 Gaul mortar is used to engage the enemy troops situated both in the open and in uncovered field entrenchments and is effective against personnel wearing individual armor. 2B25 can deliver indirect fire against visible and nonobservable targets from various types of ground both in the day and night time, at ambient temperatures -50 to +50 °С. The unique design of the 2B25 mortar and its 3VO35 bomb provides the advantage of concealed operation. The mortar fire attack is not expected by the enemy because of the mortar's low acoustic signature, and absence of flash and smoke. 2B25 mortar can be transferred from combat to traveling position and vice versa without its disassembling into parts. For short distances, it is carried with the help of straps attached to the mortar. For large distances, the mortar may be transported in a standard box by any means of transportation or by the crew in a rucksack. Due to its small size and weight, 2B25 mortar can easily be carried by one soldier. All these advantages make the mortar attractive for Special Forces, especially in counter-terrorism operations.

Ground Specifications
Crew 2
System
Alternate Designation 2B25 Gaul
Type Light Mortar
Caliber 82 mm
Manufacturer JSC Central Research Institute Burevestnik
Crew 2 ea
Elevation +45° to +85° (+800 mils to +1,511 mils)
Traverse, on Bipod ±4° (±71 mils)
Traverse, by Moving Bipod 360° (6,400 mils)
Maximum Firing Range 1,200 m
Minimum Firing Range 100 m
Maximum Rate of Fire Without Relaying 15 rds/min
Time to Transfer the Morar from Travelling to COmbat Position And Vice Versa 30 seconds Max
Dimensions
Length INA
Width INA
Height INA
Weight 13 kg
Note The 2B25 mortar can be transferred from combat to traveling position and vice versa without its disassembling into parts. For short distances, it is carried with the help of straps attached to the mortar. For large distances, the mortar may be transported in a standard box by any means of transportation or by the crew in a rucksack. Due to its small size and weight, 2B25 mortar can easily be carried by one soldier.
Details
Country of Origin Russia
Category Non-Self Propelled Mortar Systems
Land > Infantry Weapons > Non-Self Propelled Mortar Systems
Filter Label
2
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
13 kg
Operators (2)
Russia
Ukraine
