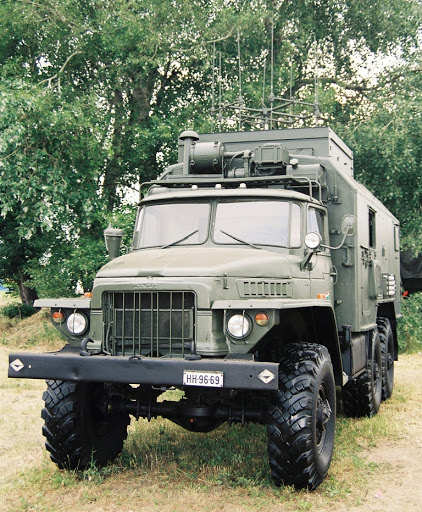

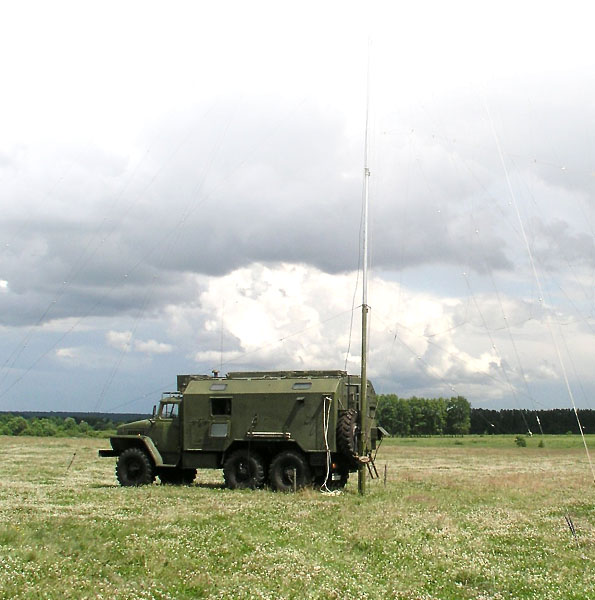

R-378A Russian Automated Communications Jammer
R-378
High Frequency (HF) Communication Intercept and Jamming Station
Other
Basic Information
Name
R-378A Russian Automated Communications Jammer
Designation
R-378
Alternate Designation
R-378
Equipment Type
High Frequency (HF) Communication Intercept and Jamming Station
Manufacturer
Ural Automobile Plant
Date of Introduction
1993
Description
The R-378A is a HF communications jammer designed for detection, direction-finding and jamming of HF radio frequencies operating in fixed frequencies and programmable and automatic frequency tuning modes.
Ground Specifications
Mobility Type
Wheeled (6x6)
Engine
Diesel (210 hp)
Active Protection
None
Max Speed
85.0 km/h
Range
1000.0 km
Variants
R-378B
R-378 HF antenna and jamming system mounted on a MTLBu chassis.
System
Alternative Designation
R-378
In Service
1993-Present
Type
High Frequency (HF) Communication Automated Jamming Station
Manufacturer
Ural
Chassis
Ural-43293
Configuration
6x6
Crew
INA
Dimensions
Length
7.37 m
Width
2.5 m
Height
4.5 m
Weight, Empty
8 tons
Payload capacity (on road)
6 tons
Payload capacity (off road)
4.5 tons
Maximum Tow Capacity
12 tons
Automotive
Engine Name
YaMZ-740
Engine Type
Diesel
Engine Power
210 hp
Cruising Range
1,000 km
Speed, Maximum Road
85 km/h
Speed, Average Cross
50 km/h
Speed Maximum Swim
Not Amphibious
Gradient
62 deg
Side Slope
40 deg
Vertical Step
0.55 m
Trench
1.2 m
Fording Depth
1.75 m
Jamming Station
Operating Frequency Range
1.5 - 30 MHz
Transmitter Output Power
1 KW
Quantity of Simultaneously Jammed Frequencies
Up to 5 target target frequencies
Frequency Spacing
kHz - 4,16
Root-mean-square error of direction finding, degree (not more than)
INA
Frequency Range Scanning Rate (without direction finding)
INA
Mean time of station reaction during jamming in autonomous mode (during operation by list of 200 preset frequencies in simultaneous scanning band, not more)
15 ms
Accuracy of carrier frequency definition (not more)
INA
Relative frequency deviation from the nominal (not more)
INA
Receiver sensitivity (not worse)
INA
Jamming Spectrum Width
Narrowband: 3, 10, 20, and 50 kHz; Barrage: 150–8,000 kHz
Jammed RF Links
Fixed frequency: up to 3; Frequency hop: 1
Frequency Hop Signal Detection
Up to 300 hop/sec
Deployment Time
40 min
Azimuth Search Coverage
360 deg
Power Generator
Requires 1 x ED30-T400-1RPM1 electric power generator mounted on a bi-axial trailer
Protection
Armor
INA
Applique Armor
Available to protection against small arms fire and artillery shell splinters
Active Protection System
No
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Personal CBRN equipment
Smoke Equipment
No
IR Signature
No
Details
Country of Origin
Russia
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.37 m
Width
2.5 m
Height
4.5 m
Weight
8000 kg
Operators (1)
Russia
