Jerong Class Malaysian Fast Attack Craft

Jerong Class

Patrol Boat

Spotted an error? Sign in to suggest an edit.

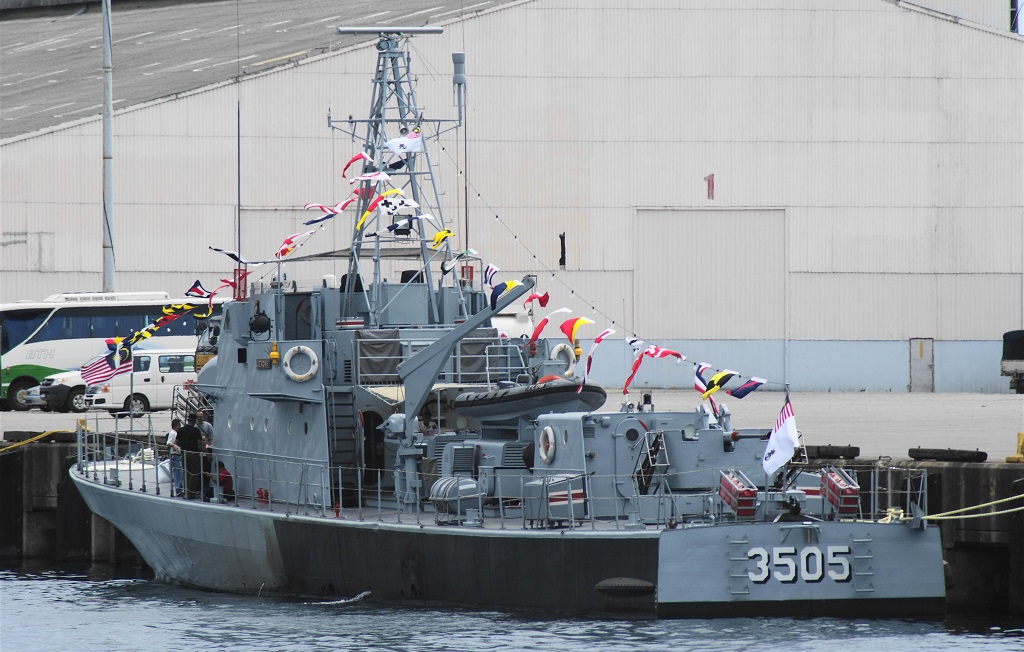

Jerong Class Malaysian Fast Attack Craft — JERONG_class(A).jpgTRADOC ODIN WEG

Basic Information

Name

Jerong Class Malaysian Fast Attack Craft

Designation

Jerong Class

Alternate Designation

Jerong Class

Equipment Type

Patrol Boat

Manufacturer

—

Date of Introduction

1976

Description

The Jerung-class gunboat is a class of gunboats in service with the Royal Malaysian Navy. This class is based on the same design as the Intrépida-class fast attack craft in service with Argentine Navy, the Lurssen FPB/TNC-45 fast attack craft and are built by Hong-Leong Lurssen Shipyards. The Jerong class is equipped only with Bofors 57 mm gun and Bofors 40 mm gun for close-in combat and fire support, unlike other fast attack crafts in Malaysian service which are armed with anti-ship missiles. Peacetime duties include patrol of the exclusive economic zone, interception of illegal immigrants and anti-piracy operations. They are too small and under-armed for use in conventional warfare or in open waters. In late 2020 Royal Malaysian Navy confirmed that this class of ship will be upgrade to lengthening service period of older ships

Naval & Littoral Specifications

Crew 36

Beam 7.00 m

Draft 2.50 m

Variants

JERONG Commissioned: 1976 Status: Active

TUDAK Commissioned: 1976 Status: Active

PAUS Commissioned: 1976 Status: Active

YU Commissioned: 1976 Status: Active

BAUNG Commissioned: 1977 Status: Active

PARI Commissioned: 1977 Status: Active

System

Alternative Designation Jerong Class

Type Fast Attack Craft

Builder Hong Leong-Lurssen, Butterworth, Malaysia

Crew 36 total (5 off. + 31 enl.)

Dimensions

Length 44.90 m

Beam 7.00 m

Draft 2.50 m

Displacement, Standard 210 tons

Displacement, Full Load 245 tons

Propulsion System

Engine Name 3 x MTU type MB 870

Engine Type Diesel

Engine Power 9,900 total bhp

Maximum Range 2,000 nm at 15 knots

Maximum Speed 32 knots

Gun Weapon Systems

Gun Weapon System #1

Name 1 x Bofors 57 mm L/70 naval artillery gun

Type Naval Artillery Gun

Caliber 57 mm

Barrel Length 3,990 mm

Weight 14,000 kg

Barrels Single barrel (progressive RH parabolic twist, 24 grooves)

Action Electronic firing

Elevation −10°/+78° (40°/s)

Traverse Full 360°:

Rate of Fire 200 rounds/min

Muzzle Velocity 1,035 m/s

Maximum Firing Range 17,000 m

Effective Firing Range 8,500 m

Feed System 40 ready rounds, 128 rounds in ready racks in mount

Sights Gyro-stabilized in local control.

Gun Weapon Systems #1 Ammunition

Type Rifle

Caliber 57 mm

Shell 57 × 438 mm

Basic Load INA

Gun Weapon System #2

Name 1 x Bofors 40 mm L/70 Anti-Aircraft Autocannon

Type Anti-Aircraft Autocannon

Caliber 40 mm

Length 6.3 m

Barrel Length 2.8 m

Width 2.3 m

Height 2.4 m

Crew 4

Elevation −20°/+80°

Traverse 360°

Rate of Fire 330 round/min

Muzzle Velocity 1,021 m/s

Maximum Firing Range 12,500 m

Gun Weapon Systems #2 Ammunition

Type Rifle

Caliber 40 mm

Shell 40×365mmR

Shell Weight 0.9 kg

Basic Load INA

Radar Systems

Navigation Radar 1 x Kelvin-Hughes 1007 radar

Protection

NBC Water Washdown System Yes

EW Intercept 1 x Thales DR-3000 intercept

Image Sources

Notes https://www.navypedia.org/ships/malaysia/mal_cf_jerong.htm; https://warsearcher.com/shipsearcher/royal-malaysian-navy-current-and-retired/rmn-corvettes-and-patrol-ships/; https://www.flickr.com/photos/encikkacang/3458830702;

Details

Country of Origin Malaysia

Category Naval

Naval

Classification

Domain

Naval & Littoral

Equipment Status

Active

Dimensions

Length

44.9 m

Width

—

Height

—

Weight

—

Operators (1)

Malaysia
