Diponegoro Class (SIGMA 9113 Class) Indonesian Corvette

Diponegoro Class

Corvette

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Diponegoro Class (SIGMA 9113 Class) Indonesian Corvette

Designation

Diponegoro Class

Alternate Designation

Diponegoro Class; SIGMA 9113 Class

Equipment Type

Corvette

Manufacturer

—

Date of Introduction

2007

Description

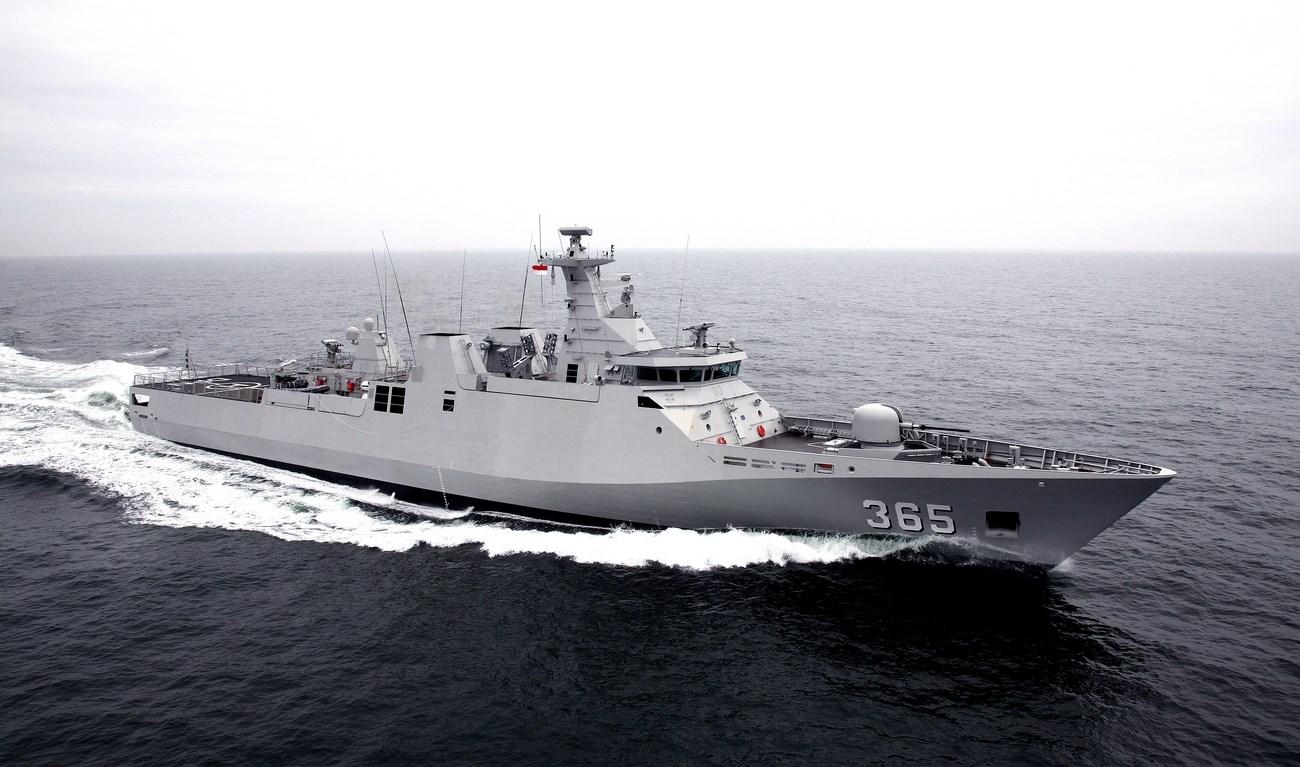

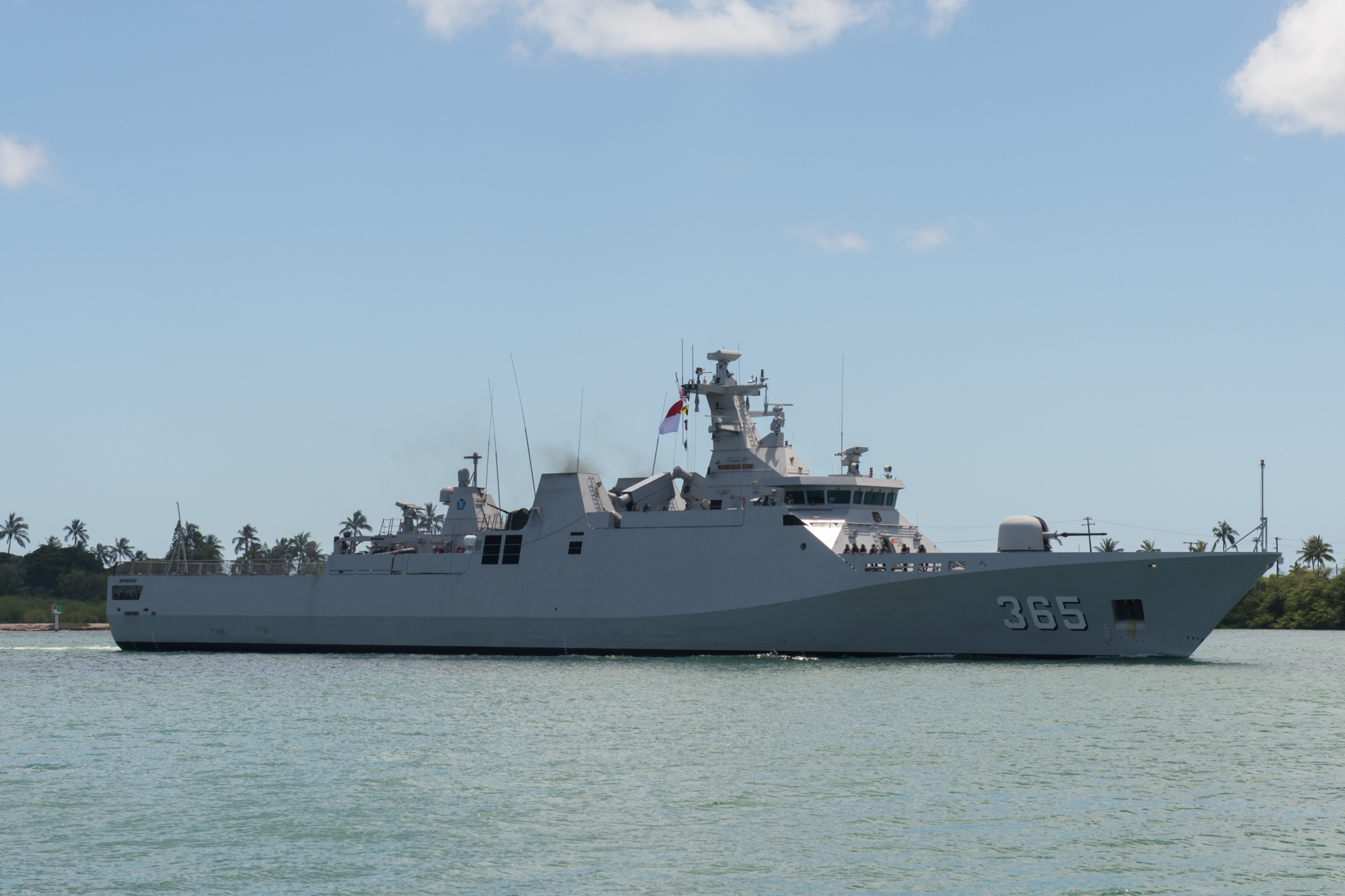

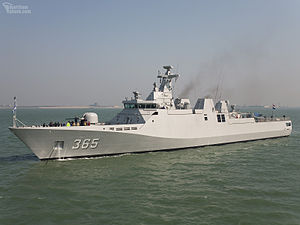

Indonesia's SIGMA-class (or DIPONEGORO-class) corvettes are based on a Dutch modular design to produce three different sizes of naval patrol vessels. SIGMA is an acronym for "ship integrated geometrical modularity approach." The ships are based on a common design defined by a set of geometric parameters, which are applied throughout the entire range of the class and which provide a repetition of identical units, both in the dimensions of the ship's spaces and in the layout. The corvettes for Indonesia cost an estimated $212 million for the first two and $339 million for the second two

Naval & Littoral Specifications

Crew 80

Beam 13.02 m

Draft 3.60 m

Variants

DIPONEGORO Commissioned: 2007 Status: Active

HASANUDDIN Commissioned: 2007 Status: Active

SULTAN ISKANDER MUDA Commissioned: 2008 Status: Active

FRANS KAISIEPO Commissioned: 2009 Status: Active

System

Alternative Designation Diponegoro Class; SIGMA 9113 Class

Type Corvette

Builder Schelde Naval Shipbuilding, Vlissingen, Netherlands (a subsidiary of Damen Shipyards Group)

Crew 80 ea

Dimensions

Length 90.71 m

Beam 13.02 m

Draft 3.60 m

Displacement, Standard INA

Displacement, Full Load 1,692 tons

Propulsion System

Engine Name 2 x SEMT Pielstick 20PA6B STC diesels

Engine Type Diesel

Engine Power INA

Generators 4 x Caterpillar 3460C diesel generators

Propellers 2 x Rolls Royce KaMeWa controllable- pitch propellers

Maximum Range 3,600 nm at 18 knots; 4,800 nm at 14 knots

Maximum Speed 28 knots

Gun Weapon Systems

Gun Weapon System #1

Name OTO Melara

Type Naval Gun

Caliber 76 mm

Quantity 1 x OTO Melara Naval Gun

Barrel Length 4,724.4 mm

Weight 7.5 tons

Crew Remote Controlled

Elevation −15°/+85° speed: 35°/s (acceleration: 72°/s²)

Traverse 360° speed: 60°/s (acceleration: 72°/s²)

Rate of Fire Compact: 85 rounds/min Super Rapid: 120 rounds/min

Maximum Firing Range 915 m/s

Muzzle Velocity HE-PFF 16,000 m SAPOMER 20,000 m VULCANO 40,000 m

Feed System Magazine capacity: 80 ready rounds on Compact gun mount

Gun Weapon Systems #1 Ammunition

Type Rifle

Caliber 76 mm

Shell 76×636mmR

Basic Load INA

Gun Weapon System #2

Name 2 x 20 mm modèle F2 Naval Guns

Type Naval Gun

Caliber 20 mm

Quantity 2 x 20 mm modèle F2 Naval Guns

Length INA

Weight 332 kg (732 lb) (without ammunition)

Action Gas unlocked, delayed blowback

Elevation −15° to + 65°

Rate of Fire 720 round/min

Muzzle Velocity 1,050 m/s

Effective FIring Range 1,500 m (4,900 ft) against aerial targets

Gun Weapon System #2 Ammunition

Type Rifle

Caliber 20 mm

Cartridge 20×139mm

Basic Load INA

Missile Weapon System

Missile #1

Name SM 39 Exocet

Type Anti-Ship Missile

Launchers 2 x twin MM40 Exocet Block II SSM launchers

Length 5.80 m

Diameter 348 mm

Wingspan 1.14 m

Weight 666 kg

Engine 2 x SNPE double-base Nitramite smokeless solid-propellant rockets; 1 x Epervier booster with 2.4 sec burn; 1 x Eole V sustainer with 200-220 sec burn

Warhead 165 kg Hexolite blast fragmentation

Speed 1,100 kph, Mach 0.93

Maximum Range 50 km

Minimum Range 4 km

Peak Altitude 50 m

Sensors/Electronics TRT AHV-7 radio altimeter inertial navigation during first part of flight Electronique Marcel Dassault ADAC or Super ADAC I/J-band active radar homing in terminal phase that begins search approx. 5.4 nm (6.2 mi, 10 km) from target's estimated position.

Basic Load INA

Missile #2

Name Mistral

Type MANPAD

Launchers 2 x quad Tetral SATCP Mistral SAM launchers (1 forward, 1 aft)

Length 1.86 m

Diameter 90 mm

Weight INA

Crew 1 ea

Engine Solid Rocket Motor

Warhead High Explosive with high density tungsten balls

Warhead Weight 2.95 kg

Detonation Mechansim Laser proximity or impact triggered

Maximum Speed 800 m/s

Effective Firing Range up to 6 km

Guidance System Infrared homing

Basic Load INA

Torpedoes

Note 2 x triple 324-mm B-515 torpedo launchers [unknown no. of EuroTorp A244S Mod 3 torpedoes carried]

Fire Control Systems

FCS Name 1 x LIROD Mark 2 tracking-surveillance fire-control

Computerized FCS Yes

Radar Systems

Surveillance Radar 1 x Thales MW 08 3D multi-beam surveillance

Navigation Radar 1 x Sperry Marine BridgeMaster-E ARPA navigation

Sonar Systems

Name 1 x Thales Kingklip medium frequency active

Type Hull Mounted

Protection

Active Protection System INA

Countermeasures Yes

NBC Water Washdown System Yes

EW 1 x Thales DR3000 system; 1 x Racal Scorpion 2L system jammer; 2 x 12-barreled PK-16 chaff decoy rocket launchers

Image Sources

Notes https://trends.nauticexpo.com/project-326895.html; https://www.dvidshub.net/image/2764046/republic-indonesia-navy-diponegoro-class-corvette-kri-diponegoro-365-arrives-joint-base-pearl-harbor-hickam-during-rimpac; https://en.wikipedia.org/wiki/Sigma-class_design;

Details

Country of Origin Indonesia

Category Naval

Naval

Classification

Domain

Naval & Littoral

Equipment Status

Active

Dimensions

Length

90.71 m

Width

—

Height

—

Weight

—

Operators (1)

Indonesia
