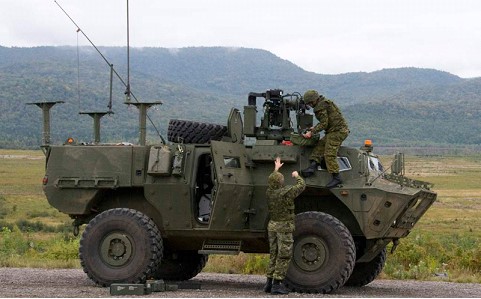

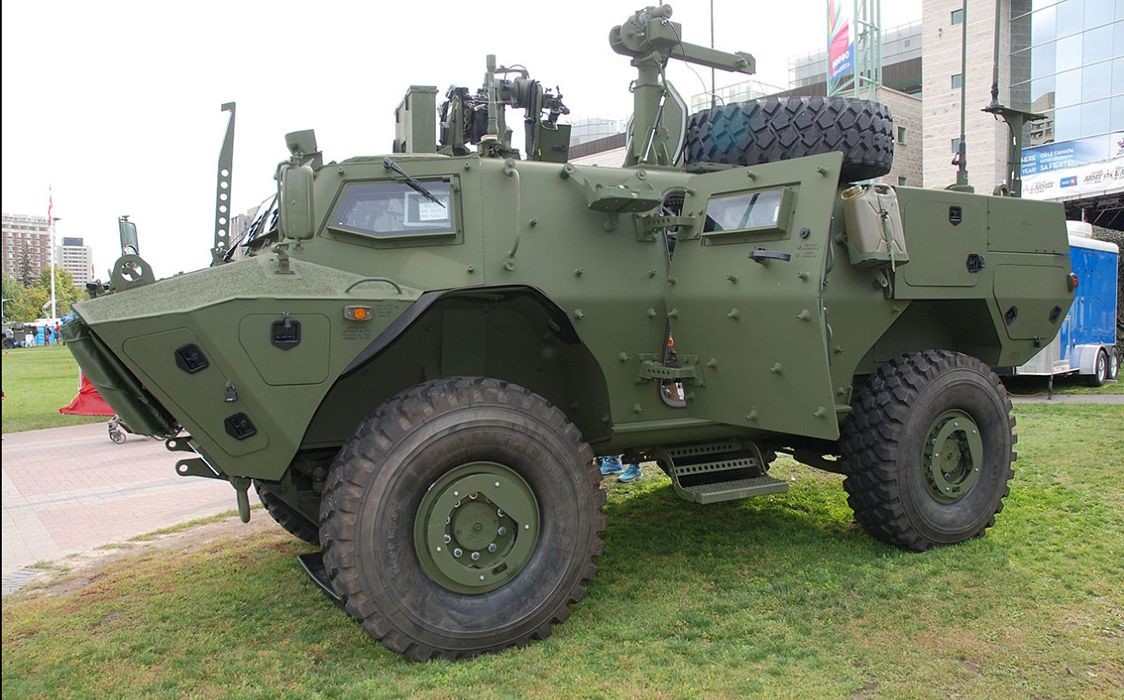

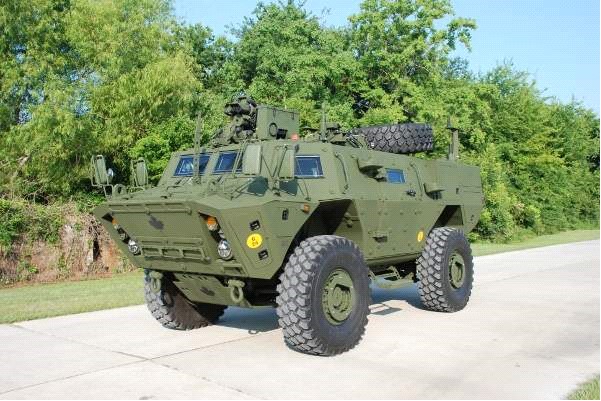

Tactical Armored Patrol Vehicle (TAPV) Canadian 4x4 Combat Vehicle
Tactical Armored Patrol Vehicle (TAPV)
Combat Vehicle
Other
Basic Information
Name
Tactical Armored Patrol Vehicle (TAPV) Canadian 4x4 Combat Vehicle
Designation
Tactical Armored Patrol Vehicle (TAPV)
Alternate Designation
Tactical Armored Patrol Vehicle (TAPV)
Equipment Type
Combat Vehicle
Manufacturer
Textron Marine & Land Systems
Date of Introduction
2016
Description
The Tactical Armored Patrol Vehicle (TAPV) Canadian 4x4 Combat Vehicle can fulfill a variety of roles on the battlefield, including reconnaissance, surveillance, security, command and control activities, and the armored transport of personnel.
Ground Specifications
Crew
3
Engine
Diesel (365 hp)
NBC Protection
Yes
Max Speed
110.0 km/h
Range
652.0 km
Variants
TAPV Reconnaissance Reconnaissance
Reconnaissance variant.
System
Alternative Designation
Tactical Armored Patrol Vehicle (TAPV)
Type
Combat Vehicle
Manufacturer
Textron Marine & Land Systems
Configuration
4x4
Crew
3 (commander, driver and gunner)
Passengers
3
Dimensions
Length
6.3 m
Width
2.75 m
Height
2.4 m
Weight, Combat
18,482 kg
Automotive
Engine Name
Cummins QSL 365
Engine Type
Diesel
Engine Power
365 hp
Transmission
Allison MD3560 automatic (six forward, one reverse)
Maximum Range
652 km
Maximum Speed
110 km/h
Amphibious
No
Gradient
60%
Side Slope
40%
Fording Depth
1.0 m
Trench
1.22 m
Main Weapon System
Name
1 x HK GMC 40mm Automatic Grenade Launcher
Auxiliary Weapon System
Name
1 x C6 7.62mm General-Purpose Machine Gun
Protection
Hull Armor
The TAPV relies upon composite armor to provide the maximum protection to the vehicles occupants. The armor is stated as being 20% better than the armor on the M1117. The TAPV also has a V-shaped hull, which provides protection against mine and improvised explosive device (IED) blasts. The vehicle also has a high ground clearance, which increases protection from mine and IED blasts. It can withstand up to 10 kg of explosive force directly under its hull, and can resist even 12.7 mm armor-piercing rounds. Each of the seats in the vehicle are blast protected, and the vehicle has vented wheel wells to disperse the energy of an explosion out from the vehicle.
Applique Armor
INA
NBC Protection
Yes
Smoke Equipment
The vehicle also possesses smoke grenade launchers located on the remote weapon system.
Image Sources
Details
Country of Origin
Canada
Category
Wheeled Heavy Armored Vehicles
Land > Heavy Armored Vehicles > Wheeled Heavy Armored Vehicles
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.3 m
Width
2.75 m
Height
2.4 m
Weight
18482 kg
Operators (1)
Canada
