Jump 20 American Unmanned Aerial Vehicle (UAV)

Jump 20

VTOL Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Jump 20 American Unmanned Aerial Vehicle (UAV)
Other

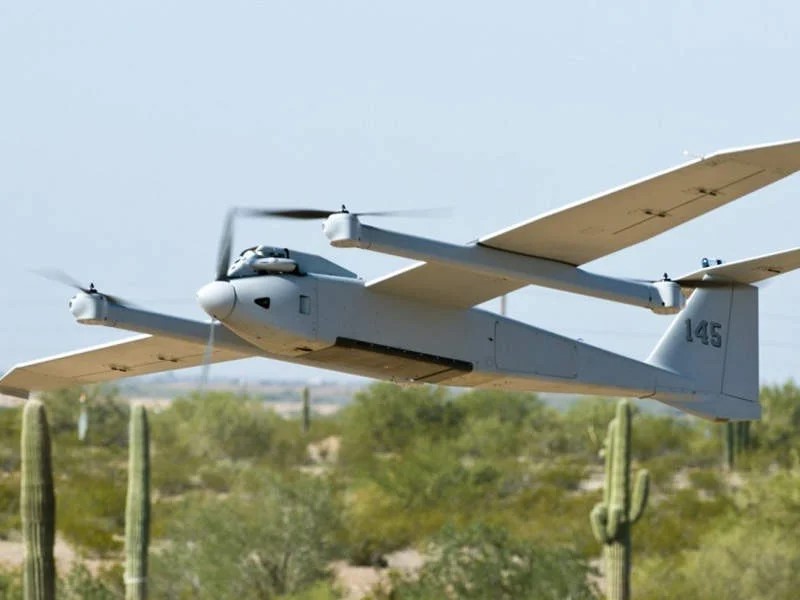

Jump_20_UAV_(A).jpgTRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
Jump 20 American Unmanned Aerial Vehicle (UAV)
Designation
Jump 20
Alternate Designation
Jump 20
Equipment Type
VTOL Unmanned Aerial Vehicle (UAV)
Manufacturer
AeroVironment
Date of Introduction
2020
Description

The Jump 20 American Unmanned Aerial Vehicle (UAV) is a vertical takeoff and landing (VTOL), fixed-wing unmanned aircraft used to provide advanced multi-sensor intelligence, surveillance, and reconnaissance (ISR) services. Delivering 14+ hours of endurance and an operational range of 185 km (115 mi), the JUMP 20 is ideal for multi-mission operations. Runway independent, the system can be set up and operational in less than 60 minutes without the need for launch or recovery equipment.

Air & Air Defense Specifications
Engine 190 cc EFI Engine
Max Speed 92.6 km/h
Range 185.0 km
Endurance 14.00 hrs
Service Ceiling 5181 m
Wingspan 5.70 m
Payload Capacity 13 kg
System
Alternate Designation Jump 20
Type Vertical Take-Off and Landing Unmanned Aerial Vehicle (UAV)
Manufacturer AeroVironment
Autonomy Semi-Autonomous
Crew Unmanned
Ground Control Station The tactical drone can be operated by two crew members from the ground control station.
Payload Capacity 13.6 kg
Camera The standard payload options are Cloud Cap Technology’s TASE series gyro-stabilised, gimballed electro-optical / infrared (EO/IR) imaging systems such as TASE400, TASE400HD, TASE400DXR and TASE400LRS. The EO / IR cameras provide imagery and video data and target tracking in real time, both during the day and at night.
Launching System No launch system or runway required. Vertical takeoff & Landing
Recovery System Vertical Take-Off and Landing
GCS Common GCS with T-20
Dimensions
Length 2.9 m
Wingspan 5.7 m
Height INA
Maximum Takeoff Weight 97.5 kg
Automotive
Engine Name Mogas
Engine Type 190 cc EFI Engine
Engine Power INA
Maximum Speed 92.6 km/h
Cruising Speed INA
Service Ceiling 5181.6 m
Maximum Distance 185 km
Endurance 14 hours
Image Sources
Notes https://www.naval-technology.com/projects/jump-20-vtol-unmanned-aerial-vehicle/; https://www.unmannedsystemstechnology.com/2021/03/jump-20-vtol-uav-selected-for-ussocom-meuas-program/; https://www.naval-technology.com/projects/jump-20-vtol-unmanned-aerial-vehicle/;
Details
Country of Origin United States
Category UAVs
Air > UAVs
Filter Label
J
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.9 m
Width
5.7 m
Height
—
Weight
97.5 kg
Operators (1)
United States
